A common rail fuel injection system is a diesel fuel delivery architecture that stores pressurized fuel in a shared accumulator (the rail) and uses electronically controlled injectors to deliver precise fuel quantities directly into each combustion chamber. The system decouples pressure generation from the injection event, giving the electronic control unit full authority over timing, duration, and pressure independent of engine speed.
This guide covers system components and operational mechanics, pressure evolution across generations, injector types and competing injection architectures, common failure modes with diagnostic procedures, and maintenance practices alongside component sourcing.

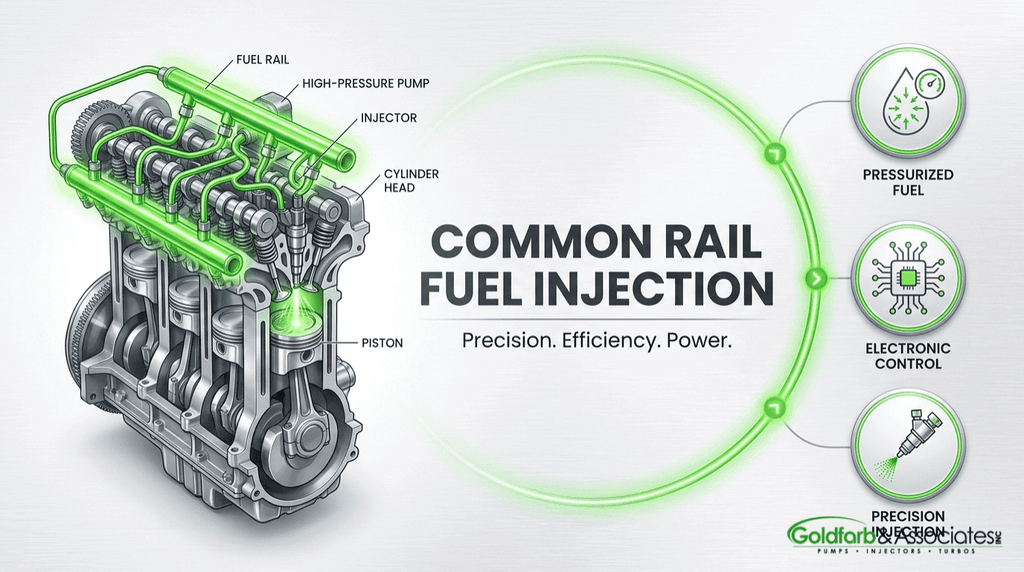

The common rail architecture relies on six integrated components: a high-pressure pump with variable-displacement capability, a forged-steel rail accumulator, precision solenoid or piezoelectric injectors, an ECU processing real-time sensor data, pressure sensors with a closed-loop regulator, and a return circuit that doubles as a cooling loop. Each component's function depends on the others, making the system a tightly coupled hydraulic and electronic network.
Operationally, the high-pressure pump compresses fuel using radial pistons while the rail dampens pressure fluctuations, enabling the ECU to fire up to five injection events per cycle. Pilot injections reduce combustion noise, main injections deliver power, and post-injections support particulate filter regeneration.
Injection pressures have progressed from 1,350 bar in the first generation introduced in 1997 to 2,500 bar in fourth-generation systems, with 3,000 bar designs under development. Two injector types serve this range: solenoid-actuated for standard applications and piezoelectric for premium, high-pressure platforms requiring faster response times.
Water contamination, internal deposits, and pump wear represent the leading failure modes, while rail pressure testing, injector back-leak checks, and fault code analysis form the diagnostic foundation. Fuel filter replacement, water separator drainage, and strict fuel quality control remain the highest-return maintenance investments for protecting these precision components.
What Are the Main Components of a Common Rail System?
The main components of a common rail system are the high-pressure fuel pump, common rail accumulator, fuel injectors, electronic control unit (ECU), fuel pressure sensors with rail pressure regulator, and fuel lines with a return circuit.
High-Pressure Fuel Pump
The high-pressure fuel pump pressurizes diesel fuel from the low-pressure supply circuit and delivers it to the common rail. This pump operates independently of the injection event, generating continuous pressure regardless of engine speed or load conditions. According to Exxotest Education, Bosch CP1 high-pressure pumps utilize a 3-piston radial design where a de-activator can shut off the 3rd piston to reduce input power at low loads or if fuel temperatures exceed 106°C. This variable-displacement capability reduces parasitic losses on the engine, improving overall fuel efficiency. The pump's ability to modulate output makes it one of the most critical components for system reliability and energy management.
Common Rail Accumulator
The common rail accumulator is a high-pressure fuel reservoir that stores pressurized diesel and distributes it evenly to all injectors. Its internal volume dampens pressure fluctuations caused by pump pulses and injection events. Constructed from forged steel to withstand operating pressures that can exceed 2,000 bar, the rail maintains a stable fuel supply regardless of how many cylinders fire simultaneously. Pressure consistency across all injectors depends directly on the accumulator's volume and structural integrity. For technicians sourcing replacement rails, dimensional accuracy and material grade are non-negotiable factors that affect long-term system performance.
Fuel Injectors
Fuel injectors are precision electromechanical valves that atomize and deliver pressurized diesel directly into each combustion chamber. Each injector contains a nozzle needle, control valve (solenoid or piezoelectric), and a hydraulic servo mechanism. When the control valve opens, a pressure imbalance lifts the nozzle needle, allowing fuel to spray in a finely atomized pattern. Modern systems can execute multiple injection events per combustion cycle, including pilot, main, and post-injections. Injector precision determines combustion quality, emission levels, and fuel economy, making these components arguably the most performance-sensitive parts in the entire system.
Electronic Control Unit (ECU)
The electronic control unit (ECU) is the central processor that manages every aspect of common rail fuel injection. The ECU calculates injection timing, duration, and pressure based on real-time sensor inputs, including engine speed, throttle position, coolant temperature, and rail pressure. It commands each injector's control valve with microsecond precision to coordinate multiple injection events per cycle. Adaptive algorithms within the ECU also compensate for component wear over time, adjusting injection quantities to maintain consistent performance. Without a properly functioning ECU, the entire common rail system cannot deliver optimized fueling strategies.
Fuel Pressure Sensors and Rail Pressure Regulator
Fuel pressure sensors and the rail pressure regulator work together to maintain target pressure inside the common rail. The rail pressure sensor provides continuous voltage signals to the ECU, which compares actual pressure against the desired setpoint. When deviation occurs, the ECU adjusts either the pump's metering unit or the pressure regulator valve to restore equilibrium. This closed-loop control is essential for meeting modern emission standards. According to technical studies documented on ResearchGate, increasing injection pressure up to 3,000 bar reduces soot emissions by 40% to 80% compared to 2,000 bar systems. As ultra-high-pressure systems continue to evolve, the accuracy demands on these sensors and regulators will only intensify.
Fuel Lines and Return Circuit
Fuel lines and the return circuit connect every component in the common rail system into a complete hydraulic loop. High-pressure lines, typically made from thick-walled seamless steel tubing, route fuel from the pump to the rail and from the rail to each injector. The return circuit collects excess fuel from the injectors and pressure regulator, routing it back to the tank at low pressure. This returned fuel carries heat absorbed during system operation, so the return circuit also serves a cooling function. Properly routed lines with secure fittings prevent leaks that could cause pressure loss or fire hazards. Understanding how each component integrates through these circuits helps when diagnosing performance issues across the system.
How Does Common Rail Direct Fuel Injection Operate?
Common rail direct fuel injection operates by decoupling pressure generation from the injection event, allowing independent control over fuel pressure, timing, and delivery volume. The subsections below explain each operational stage: pump pressurization, rail pressure storage, ECU-controlled injection timing, and multiple injection events.
How Does the High-Pressure Pump Pressurize Fuel?
The high-pressure pump pressurizes fuel by drawing diesel from the tank through a low-pressure supply circuit and compressing it to injection-ready pressures using radial pistons driven by the engine's camshaft or gear train. According to Exxotest Education, Bosch CP1 high-pressure pumps utilize a 3-piston radial design where a deactivator can shut off the third piston to reduce input power at low loads or when fuel temperatures exceed 106°C.
Because the pump operates continuously and independently of injection events, it maintains a steady fuel supply to the rail regardless of engine speed. A metering unit on the suction side regulates exactly how much fuel enters the compression chamber, preventing unnecessary energy consumption at partial loads.
How Does the Rail Store and Maintain Constant Pressure?
The rail stores and maintains constant pressure by acting as a high-pressure accumulator that absorbs the pulsations from the pump and holds fuel at a stable, ready-to-inject pressure level. This accumulator volume dampens pressure fluctuations that would otherwise cause inconsistent spray patterns at the injector nozzles.
A rail pressure sensor continuously monitors the stored pressure, while a pressure regulator valve bleeds excess fuel back to the return circuit when pressure exceeds the target setpoint. Together, these components form a closed-loop system that keeps rail pressure within a narrow tolerance band, ensuring each injector receives fuel at the same consistent pressure regardless of which cylinder fires next.
How Does the ECU Control Injection Timing and Duration?
The ECU controls injection timing and duration by processing real-time sensor data and sending precisely timed electrical signals to each injector's solenoid or piezo actuator. Inputs from the rail pressure sensor, crankshaft position sensor, camshaft sensor, and engine temperature sensor allow the ECU to calculate the optimal injection window for each combustion cycle.
Energizing the control valve for a longer duration increases fuel volume; adjusting the signal's start point relative to crankshaft position shifts timing. This electronic precision enables the ECU to adapt injection parameters within milliseconds, optimizing combustion for varying load conditions, altitudes, and fuel qualities.
How Do Multiple Injection Events Occur per Cycle?
Multiple injection events occur per cycle because the ECU can energize each injector several times within a single combustion stroke. According to DieselNet, common rail systems enable up to 5 injection events per cycle, including pilot, main, and post-injections, which significantly improves noise quality and reduces peak combustion temperatures for lower NOx.
-
Pilot injections introduce a small fuel quantity before the main event to reduce combustion noise and ignition delay.
-
The main injection delivers the primary fuel charge for power output.
-
Post-injections supply additional fuel after the main event to assist with exhaust aftertreatment regeneration, such as diesel particulate filter cleaning.
This multi-event capability is only possible because the rail maintains constant pressure independent of injection timing, giving the ECU full authority over how many events occur and when each one begins.
With the operational sequence established, understanding the specific pressure ranges across system generations reveals how this technology has evolved.
What Pressure Ranges Do Common Rail Systems Use?
Common rail systems use pressure ranges from 1,350 bar in first-generation designs to 2,500 bar in latest-generation systems. Each generation increased rail pressure to improve fuel atomization and reduce emissions.
What Pressure Does a First-Generation Common Rail System Reach?
A first-generation common rail system reaches pressures between 1,350 and 1,450 bar. According to Bosch Aftermarket documentation, the CRS1 for passenger cars, introduced in 1997, operated at this range using solenoid-valve injectors paired with the CP1 high-pressure pump.
These pressures represented a significant leap over earlier mechanical injection systems, which lacked independent pressure control. The solenoid-valve design enabled electronic management of injection timing at a fixed rail pressure, though the relatively modest ceiling limited atomization quality compared to later generations. For reliable cold starts, the high-pressure circuit must reach a minimum of 200 bar within 1.5 engine rotations during cranking.
What Pressure Does a Second-Generation Common Rail System Reach?
A second-generation common rail system reaches 1,600 bar. The CRS2, developed by Bosch for both passenger and commercial vehicles, achieved this higher ceiling through suction-side fuel delivery control via a metering unit.
Raising pressure from 1,450 to 1,600 bar improved fuel droplet breakup, producing finer spray patterns that burned more completely. This generation also broadened the technology's application beyond passenger cars into heavier commercial platforms. The 10% pressure increase over the CRS1, while incremental on paper, delivered measurable gains in combustion efficiency and particulate reduction that helped manufacturers meet tightening emission standards.
What Pressure Does a Third-Generation Common Rail System Reach?
A third-generation common rail system reaches pressures ranging from 1,600 to 2,000 bar. According to Bosch Aftermarket data, the CRS3 features piezo-inline injectors designed to meet premium market segment requirements.
Switching from solenoid to piezoelectric actuation was essential at these pressures. Piezo crystals respond faster than solenoid coils, enabling more precise needle control under extreme hydraulic forces. The broader operating window, spanning 400 bar, gives the ECU greater flexibility to optimize injection strategy across varying load conditions. For technicians working on these systems, the higher pressures demand stricter attention to fuel cleanliness and component tolerances.
What Pressure Do Latest-Generation Systems Achieve?
Latest-generation common rail systems achieve pressures of 2,500 bar. DENSO's 4th Generation Common Rail System (G4CRS) increased injection pressure from 2,000 bar to 2,500 bar to produce better spray characteristics and reduce both NOx and PM emissions.
Ultra-high pressure development continues beyond even this threshold. Research-stage systems capable of 3,000 bar are under development to further improve air-fuel mixing and combustion efficiency. Each pressure increase yields diminishing returns in atomization quality, so the engineering challenge shifts toward material durability and sealing integrity at these extremes. Understanding which generation your engine uses is critical when sourcing replacement injectors, pumps, and rail components.
What Types of Common Rail Injectors Are Used?
The types of common rail injectors used are solenoid-actuated injectors and piezoelectric injectors. Each type uses a different actuation method to control the nozzle needle, affecting response speed, injection precision, and multi-event capability.
Solenoid-Actuated Injectors
Solenoid-actuated injectors use an electromagnetic coil to open a control valve, creating a pressure imbalance that lifts the nozzle needle. According to a Bosch Aftermarket catalog, Bosch's first-generation common rail system (CRS1), introduced in 1997, relied on solenoid-valve injectors operating between 1,350 and 1,450 bar. These injectors remain widely used across passenger and commercial diesel applications due to their proven reliability and lower replacement cost. Response times are slightly slower than piezoelectric designs, which limits the minimum interval between injection events. For most standard diesel applications, however, solenoid injectors deliver sufficient precision for pilot, main, and post-injection sequences.
Piezoelectric Injectors
Piezoelectric injectors use a piezo-ceramic crystal stack that expands when voltage is applied, actuating the control valve with significantly faster response times than solenoid designs. This speed enables more precisely timed injection events and shorter dwell periods between multiple injections per cycle. Piezoelectric actuators produce less heat and consume less energy during operation, which improves overall system efficiency. According to a Bosch Aftermarket catalog, third-generation common rail systems (CRS3) feature piezo-inline injectors operating at pressures from 1,600 to 2,000 bar for premium market segments. The faster switching capability makes piezoelectric injectors the preferred choice for engines targeting aggressive emissions targets under Euro VI and EPA Tier 4 standards.
Understanding each diesel fuel injector type, including its expected lifespan and ideal applications, helps determine the correct replacement part and diagnostic approach for any common rail system.
How Does Common Rail Differ from Other Diesel Injection Systems?
Common rail differs from other diesel injection systems by decoupling pressure generation from the injection event, storing pressurized fuel in a shared accumulator rather than generating pressure at each cylinder individually. The subsections below compare common rail to mechanical unit injection, pump-line-nozzle systems, and electronic unit injectors.
How Does Common Rail Compare to Mechanical Unit Injection?
Common rail compares to mechanical unit injection primarily in how each system generates and controls fuel pressure. Mechanical unit injection (MUI) combines the pump and injector into a single assembly at each cylinder, with a camshaft lobe mechanically driving each unit to create injection pressure. Injection timing and fuel quantity depend on cam profile geometry, limiting flexibility.
Common rail systems, by contrast, maintain constant pressure in a shared rail independent of engine speed. The ECU controls injection timing, duration, and multiple injection events electronically. This separation enables pilot and post-injections that MUI cannot achieve, resulting in lower combustion noise and improved emissions control. For technicians accustomed to MUI, the shift to common rail means replacing mechanical adjustments with electronic diagnostics.
How Does Common Rail Compare to Pump-Line-Nozzle Systems?
Common rail compares to pump-line-nozzle (PLN) systems through fundamental differences in fuel delivery architecture. PLN systems use individual pump elements that send pressurized fuel through high-pressure lines to separate nozzle holders at each cylinder. Because pressure builds only during the pump stroke, injection pressure varies with engine speed and drops across the fuel line length.
The first successful commercial application of common rail in passenger cars, the 1997 Alfa Romeo 156 using Bosch's Unijet technology acquired from Fiat, demonstrated a clear advantage: stable rail pressure regardless of RPM. PLN systems also struggle to execute multiple injection events per cycle due to their cam-driven timing. Common rail eliminates pressure wave inconsistencies inherent in long fuel lines, delivering more uniform atomization across all cylinders.
How Does Common Rail Compare to Electronic Unit Injectors?
Common rail compares to electronic unit injectors (EUI) in the balance between peak pressure capability and injection flexibility. EUI systems integrate the pump plunger and nozzle into one unit per cylinder, driven by the engine camshaft but controlled electronically by a solenoid valve. This design achieves very high peak pressures since no fuel line separates the pump from the nozzle.
However, because EUI pressure generation remains mechanically linked to cam speed, injection pressure at low RPM is inherently limited. Common rail maintains consistent pressure across the entire operating range. EUI systems also face greater difficulty executing more than two injection events per cycle, while common rail supports up to five. For applications demanding precise low-speed torque and advanced aftertreatment strategies, common rail's independent pressure control offers a measurable advantage over EUI architecture.
For a focused breakdown of common rail diesel vs direct injection designs, understanding these architectural differences helps when selecting replacement components for any diesel injection platform.
What Are the Technical Advantages of Common Rail Technology?
The technical advantages of common rail technology include precise injection control, multiple injection events per cycle, reduced emissions, lower combustion noise, and independent pressure generation. These benefits stem from the system's ability to decouple fuel pressure from engine speed, giving the ECU full authority over injection parameters.
Common rail's architecture enables up to five injection events per cycle, including pilot, main, and post-injections. This multiple-injection capability significantly improves noise quality by softening the initial combustion pressure rise, while post-injections support diesel particulate filter regeneration. According to DieselNet, these multiple events also reduce peak combustion temperatures, directly lowering NOx formation.
Because the high-pressure pump supplies fuel to the rail independently of engine speed and load, consistent atomization quality is maintained across all operating conditions. Older cam-driven systems, including the various types of diesel fuel injection pumps used before common rail, tied injection pressure to engine RPM, which meant poor atomization at low speeds. Common rail eliminates this limitation, delivering uniform spray quality from idle through full load. Higher injection pressures further enhance fuel-air mixing; technical studies documented on ResearchGate show that increasing pressure to 3,000 bar reduces soot emissions by 40% to 80% compared to 2,000 bar systems.
The ECU's ability to adjust injection timing, duration, and pressure in real time also improves fuel efficiency. Fuel consumption drops when the system optimizes each combustion event based on sensor feedback rather than relying on fixed mechanical profiles. For operators managing fleet maintenance costs or rebuilding diesel engines across construction, agricultural, and marine applications, these efficiency gains translate directly into lower operating expenses over the system's service life.
With these performance benefits established, understanding common failure modes helps protect your investment in common rail components.
What Are Common Failure Modes in Common Rail Systems?
Common failure modes in common rail systems include injector corrosion, high-pressure pump wear, sensor malfunctions, and fuel contamination damage. Each failure mode has distinct causes and symptoms.
What Causes Common Rail Injector Failure?
Common rail injector failure is caused primarily by water contamination, internal deposits, and mechanical wear. According to a Bosch Auto Parts technical document, corrosion caused by water contamination in diesel fuel is one of the most common root causes for high-pressure injector failure identified in field studies.
Beyond corrosion, internal injector deposits (IDID) present a significant threat. These deposits cause needle sticking or sluggish response, often linked to specific fuel additives and trace metal contaminants like sodium. Electrical faults in solenoid or piezo actuators also contribute to injector failure over time.
What Causes High-Pressure Pump Failure?
High-pressure pump failure is caused by insufficient lubrication, contaminated fuel, and internal component wear. Diesel fuel itself serves as the lubricant for pump internals, so low-sulfur fuels with poor lubricity accelerate wear on pistons, cam rings, and bearings.
Metal debris from upstream component degradation can score internal pump surfaces, leading to pressure loss. Air ingestion through cracked fuel lines or faulty seals also damages pump elements. When the pump cannot maintain target rail pressure, engine performance degrades rapidly. Proactive fuel system maintenance remains the most effective way to prevent premature pump failure.
What Causes Rail Pressure Sensor Malfunction?
Rail pressure sensor malfunction is caused by electrical faults, contamination buildup on sensing elements, and connector corrosion. The sensor converts rail pressure into a voltage signal for the ECU; any signal drift or interruption triggers incorrect fueling calculations.
Vibration fatigue can fracture internal wiring over time, producing intermittent signal loss. Fuel vapors or moisture infiltrating the connector pins accelerate oxidation and increase electrical resistance. A malfunctioning rail pressure sensor often triggers diagnostic fault codes and may force the engine into a limp-home mode to prevent damage.
What Causes Fuel Contamination-Related Damage?
Fuel contamination-related damage is caused by water, particulates, microbial growth, and incompatible fuel additives entering the high-pressure circuit. Water is especially destructive because it promotes corrosion on precision-machined surfaces inside injectors and pumps.
Fine particulate matter bypasses degraded filters and abrades close-tolerance components. Microbial colonies form at the fuel-water interface in storage tanks, producing acidic byproducts that attack seals and metallic surfaces. Even small quantities of contamination amplify wear rates significantly in systems operating above 1,600 bar. Strict fuel quality control and timely filter replacement are the most reliable defenses against contamination-related failures.
Understanding these failure modes makes accurate diagnosis the logical next step.
How Do You Diagnose Common Rail System Problems?
You diagnose common rail system problems by testing rail pressure, checking injector back-leak rates, and reading stored fault codes. These three procedures isolate whether the issue originates in the high-pressure pump, injectors, or electronic controls.
How Do You Test Rail Pressure with Diagnostic Tools?
You test rail pressure with diagnostic tools by connecting a scan tool to the OBD-II port and monitoring live rail pressure data against the ECU's target values during cranking and at various engine speeds. According to Exxotest Education diagnostic guidelines, the high-pressure circuit should reach a minimum of 200 bar within 1.5 engine rotations during cranking to enable starting.
If actual pressure falls significantly below target values, the fault typically lies in the high-pressure pump, pressure regulator, or a leaking injector. Comparing commanded versus actual rail pressure at idle and under load reveals whether the pump can maintain adequate supply or if excessive fuel is escaping the high-pressure circuit. For technicians working with systems rated at 1,600 bar or higher, even small deviations in sensor readings can indicate developing component wear.
How Do You Perform an Injector Back-Leak Test?
You perform an injector back-leak test by disconnecting the fuel return lines from each injector and routing them into individual graduated containers or measuring tubes. With the engine cranking or idling, each injector's return flow volume is measured over a set time interval.
A healthy injector returns a small, consistent amount of fuel through its internal clearances. Excessive back-leak from one or more cylinders indicates worn internal seals, a damaged control valve, or nozzle needle erosion. Comparing return volumes across all cylinders quickly identifies which specific injector requires replacement or remanufacturing. This test is particularly valuable because it pinpoints individual cylinder faults without requiring injector removal, saving significant diagnostic time on multi-cylinder diesel engines.
How Do You Read Common Rail Fault Codes?
You read common rail fault codes by connecting a diagnostic scan tool capable of accessing the engine ECU and retrieving stored diagnostic trouble codes (DTCs). Common rail systems generate specific fault codes for rail pressure deviations, injector circuit malfunctions, fuel metering valve errors, and sensor signal faults.
Key fault code categories to monitor include:
-
Rail pressure codes indicate the actual pressure is too high, too low, or unresponsive to ECU commands.
-
Injector circuit codes flag open circuits, short circuits, or timing drift in individual injector solenoids or piezo actuators.
-
Fuel metering unit codes signal problems with the pump's inlet metering valve or its wiring.
-
Sensor codes identify failures in the rail pressure sensor, fuel temperature sensor, or camshaft/crankshaft position sensors that affect injection timing.
Freeze frame data captured alongside each DTC reveals the exact operating conditions when the fault occurred, which helps distinguish intermittent issues from persistent failures. Understanding fault code context is just as important as reading the code itself, since a single root cause like fuel contamination can trigger multiple codes simultaneously across different subsystems.
What Maintenance Practices Extend Common Rail System Life?
Maintenance practices that extend common rail system life focus on fuel cleanliness, scheduled filter service, and water separation. These preventive steps protect high-pressure pumps, injectors, and the rail from contamination-driven failures.
Fuel filter replacement is one of the most critical maintenance tasks. According to Exxotest Education diagnostic guidelines, standard maintenance for common rail diesel engines includes fuel filter replacement every 60,000 km and fuel system drainage every 20,000 km to prevent water-related damage. Neglecting these intervals allows particulates and moisture to reach components operating at pressures exceeding 1,600 bar, where even microscopic contaminants cause accelerated wear.
Additional practices that protect common rail longevity include:
-
Draining the water separator at manufacturer-specified intervals to prevent corrosion inside injector bodies and pump assemblies.
-
Using only ultra-low sulfur diesel (ULSD) that meets ASTM D975 specifications, which limits sulfur to 15 ppm maximum.
-
Inspecting fuel lines and return circuits for air leaks that can introduce cavitation damage to the high-pressure pump.
-
Monitoring rail pressure readings during routine diagnostics to catch gradual performance decline before catastrophic failure occurs.
-
Avoiding fuel additives containing trace metals like sodium, which contribute to internal injector deposits that cause needle sticking.
Water contamination deserves particular attention because it triggers corrosion inside precision-machined injector components, often leading to complete injector failure. Fuel stored in outdoor tanks or equipment exposed to temperature swings is especially vulnerable to condensation buildup. For operators managing fleets or heavy equipment, maintaining a clean fuel supply chain from tank to engine is arguably the single highest-return investment in common rail system longevity.
Consistent adherence to these maintenance intervals keeps common rail components operating within designed tolerances, reducing the likelihood of costly high-pressure circuit repairs. With preventive maintenance established, sourcing quality replacement parts becomes the next priority.
How Do You Source Reliable Common Rail Components?
You source reliable common rail components by choosing suppliers with rigorous quality inspection, extensive OEM-compatible inventory, and verified remanufacturing standards. Our fuel injection pump buyer's guide walks through the key factors for matching the right pump to your engine's specifications. The subsections below cover how Goldfarb & Associates supports these needs and the key takeaways from common rail technology.
Can Goldfarb's Diesel Fuel Injectors and Pumps Help?
Yes, Goldfarb & Associates can help source diesel fuel injectors and pumps for common rail applications. Goldfarb & Associates stocks over 20,000 unique part numbers, including new, used, and remanufactured fuel injectors, injection pumps, nozzles, and plungers across a wide range of diesel engine manufacturers. Every part undergoes hand inspection against a full quality checklist before shipping.
Fuel quality directly affects common rail component longevity. According to Chevron's technical review, the ASTM D975 standard for diesel fuel oils requires a minimum cetane number of 40 and limits sulfur content to 15 ppm maximum for ultra-low sulfur diesel. Sourcing components designed to operate within these fuel specifications helps prevent premature injector failure from contamination or deposit buildup.
Goldfarb & Associates offers same-day shipping on orders placed before 3:30 PM EST, Monday through Friday, ensuring minimal equipment downtime when replacing critical common rail parts.
What Are the Key Takeaways About Common Rail Systems?
The key takeaways about common rail systems center on three principles: precision pressure control, multiple injection capability, and strict fuel quality requirements.
-
Common rail technology decouples pressure generation from injection events, enabling consistent fuel delivery independent of engine speed.
-
Injection pressures have evolved from 1,350 bar in first-generation systems to 2,500 bar in fourth-generation designs, with 3,000 bar systems under development.
-
Up to five injection events per cycle reduce combustion noise and lower NOx emissions.
-
Water contamination and internal deposits remain the leading causes of injector failure, making regular fuel filter replacement and system drainage essential.
-
Proper diagnostic procedures, including rail pressure testing and injector back-leak checks, catch problems before they escalate into costly repairs.
For technicians and fleet operators, selecting quality-verified replacement components is just as important as following maintenance schedules. Goldfarb & Associates provides the inventory depth and inspection standards needed to keep common rail systems performing at their engineered specifications.
