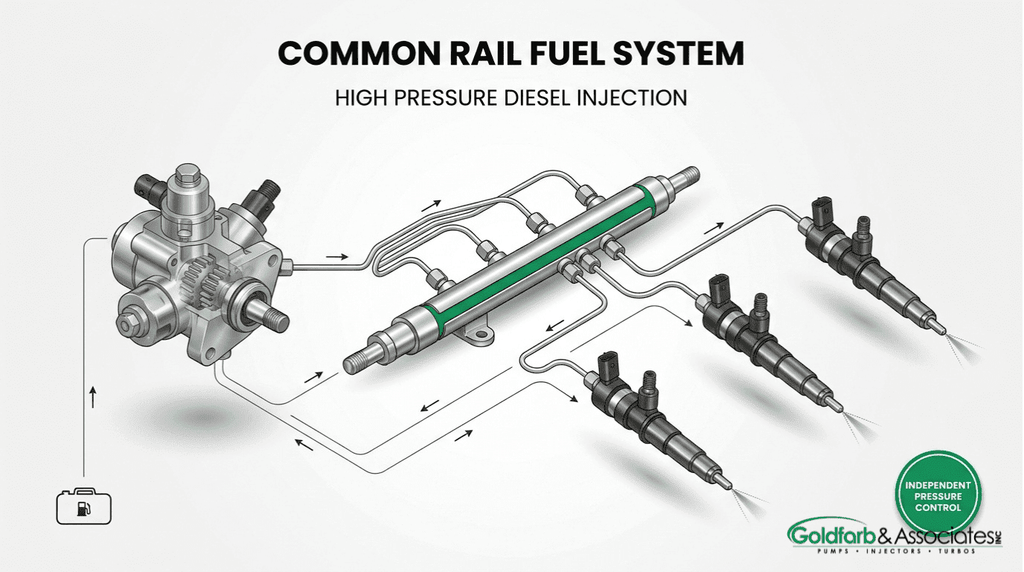

How a Common Rail Fuel System Works (2026)

A common rail fuel system is a diesel injection technology that separates pressure generation from fuel delivery, using a high-pressure pump to feed a shared accumulator rail that supplies electronically controlled injectors independently of engine speed.

This guide covers system architecture and core components, the complete fuel flow process, ECM-controlled injection strategies, performance advantages over older diesel designs, failure diagnosis, and maintenance practices.

A common rail system relies on five core components: a high-pressure pump (capable of generating 1,800 to 2,700 bar), the rail accumulator, electronically controlled injectors, the ECM, and pressure sensors paired with a rail pressure regulator. Each handles a specific stage of fuel delivery, and the separation between pressure generation and injection timing is what gives the system its flexibility.

Fuel moves through the system in a clear sequence. A low-pressure pre-supply pump delivers diesel at 5 to 6 bar, the high-pressure pump compresses it into the thousands-of-bar range, the rail stores and stabilizes that pressure, and the ECM triggers each injection event based on real-time sensor data. Unused fuel returns to the tank through dedicated leak-off lines.

The ECM breaks each combustion cycle into distinct phases: pilot injection to reduce diesel knock, the main injection event for working power, and post-injection to support DPF regeneration. Modern systems can execute up to ten individual injections per cycle, giving the ECM precise control over combustion noise, efficiency, and emissions.

Recognizing failure symptoms like rough idle, power loss, fault codes, and exhaust smoke helps operators catch problems early. Consistent fuel filtration, proper ULSD fuel quality, and proactive diagnostic scanning protect high-precision components from premature wear. When parts do need replacement, specialized diesel suppliers like Goldfarb & Associates stock the injectors, pumps, and related components needed to restore common rail performance.

What Is a Common Rail Fuel System?

A common rail fuel system is a diesel injection technology that separates pressure generation from fuel delivery. A high-pressure pump feeds a shared accumulator rail, which supplies electronically controlled injectors independently of engine speed. The subsection below explains how this design departs from earlier diesel injection approaches.

How Does Common Rail Differ From Earlier Diesel Injection Systems?

Common rail differs from earlier diesel injection systems by decoupling fuel pressure from engine speed and mechanical timing. Cam-driven systems, such as rotary or unit injectors, generate injection pressure mechanically; pressure rises and falls with engine RPM. Common rail systems, by contrast, maintain a permanently available injection pressure independent of engine speed and load, according to SAE International.

This constant-pressure design unlocks capabilities older architectures cannot match:

• Modern common rail systems deliver up to ten individual injections per cycle, producing quieter combustion and lower emissions.

• Raising injection pressure from 200 bar to 1,500 bar reduces fuel droplet size by over 50%, dramatically improving atomization.

• Post-injection strategies raise exhaust temperatures to regenerate Diesel Particulate Filters (DPF), a function mechanically timed systems cannot perform with the same precision.

Because injection events are electronically controlled rather than mechanically fixed, common rail technology has evolved through multiple generations since its production debut. For diesel operators weighing upgrades or replacements, this flexibility in injection timing and pressure control represents the single biggest leap over legacy fuel systems.

With the system defined, the next section breaks down each component that makes this architecture work.

What Are the Main Components of a Common Rail Fuel System?

The main components of a common rail fuel system are the high-pressure fuel pump, the common rail accumulator, electronically controlled fuel injectors, the engine control module (ECM), and fuel pressure sensors with a rail pressure regulator. Each component handles a specific stage of fuel delivery and injection.

What Role Does the High-Pressure Fuel Pump Play?

The high-pressure fuel pump pressurizes diesel fuel and delivers it to the common rail. An electronic pre-supply pump first feeds fuel from the tank at 5 to 6 bar, then the high-pressure pump compresses it to injection-ready levels.

According to Bosch Mobility, the CP4 high-pressure pump handles pressure levels ranging from 1,800 to 2,700 bar and is used in applications from passenger cars to small heavy-duty vehicles. Unlike older cam-driven designs, pumps like the CP3 generate and regulate high pressure without being timed to the engine's crankshaft or camshaft. This independence from engine timing is what allows common rail systems to maintain consistent fuel pressure across all operating conditions, making the high-pressure pump arguably the most critical mechanical component in the entire system.

What Does the Common Rail Accumulator Do?

The common rail accumulator stores pressurized fuel and distributes it evenly to all injectors. Functioning as a shared reservoir, the rail maintains a stable, consistent pressure so that every cylinder receives fuel at the same force regardless of injection timing or engine speed.

By decoupling pressure generation from injection events, the accumulator absorbs the pressure fluctuations that each injection cycle creates. This stability is essential because even small pressure variations can alter spray patterns and combustion quality. The rail's internal volume acts as a buffer, ensuring that when one injector fires, the pressure available to the remaining injectors stays virtually unchanged.

How Do Common Rail Fuel Injectors Deliver Fuel?

Common rail fuel injectors deliver fuel by receiving pressurized diesel from the shared rail and atomizing it directly into each combustion chamber through electronically controlled nozzle openings. Common rail technology separates pressure generation from fuel injection, where a high-pressure pump feeds the rail that supplies these electronically controlled injectors.

Each injector can fire multiple times per combustion cycle, with strategies like Digital Rate Shaping (DRS) allowing a very small delay between pre-injection and main injection to reduce noise and fuel consumption. This multi-injection capability gives each injector precise control over spray timing, duration, and quantity, which directly shapes combustion efficiency and exhaust cleanliness.

What Does the Engine Control Module Control?

The engine control module controls injection timing, fuel quantity, rail pressure, and injector behavior across all operating conditions. It processes data from sensors throughout the engine to calculate the optimal injection strategy for each combustion cycle.

According to Bosch Mobility, the Needle Closing Control (NCC) function uses a sensor to measure characteristic injector variables and exchange data with the electronic control unit to increase injection accuracy over the system's lifetime. This adaptive capability means the ECM compensates for injector wear and drift as components age, maintaining precise fuel delivery well beyond initial calibration. For technicians, recognizing the ECM's central role helps explain why electrical faults often produce cascading performance symptoms.

How Do the Fuel Pressure Sensors and Rail Pressure Regulator Work?

The fuel pressure sensors and rail pressure regulator work together to monitor rail pressure in real time and adjust it to match the ECM's target value. Pressure sensors mounted on the rail report continuous readings to the ECM, while the pressure regulator controls fuel flow to maintain the commanded pressure.

Modern common rail accumulators maintain fuel at pressures up to 2,500 bar, and ultra-high injection pressures around 2,070 bar improve fuel-air mixing and combustion efficiency. According to ILASS Europe, liquid fuel injected at pressures around 200 MPa forms a fine, high-momentum spray that significantly improves the liquid surface breakup process. Pilot injection also relies on accurate pressure regulation; it pre-conditions the combustion chamber, reducing ignition lag and smoothing the rate of pressure rise.

Understanding how each of these common rail fuel system components contributes to fuel delivery sets the stage for tracing fuel flow through the complete system.

How Does Fuel Flow Through a Common Rail System Step by Step?

Fuel flows through a common rail system in five stages: low-pressure supply, high-pressure generation, rail accumulation, electronic injection, and fuel return. Each stage builds on the previous one to deliver precisely metered diesel to the combustion chamber.

How Does the Low-Pressure Supply Circuit Feed the System?

The low-pressure supply circuit feeds the system by drawing diesel from the fuel tank and delivering it to the high-pressure pump at a controlled, consistent pressure. An electric pre-supply pump, mounted in or near the tank, pushes fuel through a filter that removes contaminants and water. According to Bosch Mobility, this electronic pre-supply pump delivers fuel to the high-pressure pump at a pressure of 5 to 6 bar. Clean, steady fuel delivery at this stage is critical; any restriction or contamination here cascades into problems throughout the entire high-pressure side.

How Is Fuel Pressurized in the High-Pressure Circuit?

Fuel is pressurized in the high-pressure circuit by a camshaft-driven or engine-driven pump that compresses the low-pressure supply into the thousands-of-bar range needed for injection. Pump families such as the CP1x, CP3x, and CP4x continuously generate this pressure to atomize fuel for optimal engine performance. The Bosch CP4, for example, handles pressure levels ranging from 1,800 to 2,700 bar and serves applications from passenger cars to small heavy-duty vehicles. Because pressure generation is separated from injection timing, the pump output remains available regardless of engine speed or load.

How Does the Rail Store and Stabilize Fuel Pressure?

The rail stores and stabilizes fuel pressure by acting as a high-pressure accumulator positioned between the pump and the injectors. This shared reservoir dampens pressure fluctuations caused by pump strokes and injector openings, maintaining a near-constant supply pressure. Modern rail accumulators can hold fuel at pressures up to 2,500 bar, which enables flexible injection timing across all operating conditions. A pressure sensor on the rail continuously reports actual rail pressure to the ECM, which adjusts pump output or activates a pressure-relief valve to keep the setpoint stable.

How Does the ECM Trigger Each Injection Event?

The ECM triggers each injection event by sending precisely timed electrical signals to the fuel injectors based on real-time sensor data. It calculates injection timing, duration, and the number of injection pulses per cycle using inputs such as rail pressure, engine speed, throttle position, and exhaust temperature. Modern common rail systems can execute up to ten individual injections per cycle, including pilot, main, and post-injection pulses, to achieve quieter combustion and reduced emissions. This level of electronic control is what separates common rail from older mechanically governed systems.

How Does Fuel Return to the Tank After Injection?

Fuel returns to the tank after injection through dedicated return lines that carry unused diesel away from the injectors and the rail. Each injector has an internal leak-off path where a small volume of fuel, used to hydraulically control needle lift, routes back to a low-pressure return manifold. The rail's pressure-relief valve also diverts excess fuel into this return circuit whenever pressure exceeds the ECM's target setpoint. According to a Bosch Aftermarket fuel injection system catalog, this continuous circulation keeps components cool and prevents vapor lock, while returned fuel is filtered and recirculated through the supply circuit.

With each stage of fuel flow defined, understanding why the system operates at such extreme pressures adds important context.

Why Does a Common Rail System Operate at Such High Pressure?

A common rail system operates at such high pressure because extreme fuel pressure produces finer atomization, better fuel-air mixing, and more complete combustion. These factors directly improve power output, fuel efficiency, and emissions compliance.

Modern common rail accumulators maintain fuel at pressures up to 2,500 bar, far exceeding what older mechanical injection systems could achieve. This constant high-pressure reservoir allows the ECM to inject precisely metered fuel at any point in the engine cycle, regardless of engine speed or load.

The physics behind this are straightforward. According to research by Yamaguchi (2022), raising diesel injection pressure from 200 bar to 1,500 bar reduces fuel droplet size by over 50%. Smaller droplets expose more fuel surface area to intake air, which accelerates evaporation and promotes thorough mixing inside the combustion chamber. When the mixture ignites, it burns more completely, extracting more energy from each injection event while producing fewer particulates.

High pressure also enables the split-injection strategies that modern emissions standards demand. Because the rail holds stable pressure continuously, the ECM can fire pilot, main, and post-injection pulses in rapid succession within a single combustion cycle. Without sufficient rail pressure, these precisely timed micro-injections would lack the force needed to atomize fuel properly at each stage.

For practical purposes, this means high-pressure operation is not optional; it is the engineering foundation that makes common rail systems cleaner, quieter, and more efficient than their predecessors. Understanding the role pressure plays in injection timing and fuel delivery helps explain how the ECM fine-tunes each combustion event.

How Does the ECM Control Injection Timing and Quantity?

The ECM controls injection timing and quantity by processing real-time sensor data and commanding each injector to open at precise crankshaft angles for exact durations. This multi-injection strategy breaks each combustion cycle into distinct phases: pilot injection, main injection, and post-injection.

What Is Pilot Injection and Why Does It Matter?

Pilot injection is a small, preliminary fuel delivery that enters the combustion chamber before the main charge. The ECM commands this brief pulse to pre-condition the cylinder with a controlled flame kernel. According to a study published in Applied Energy (ScienceDirect), pilot injection pre-conditions the combustion chamber for the main injection pulse, reducing the ignition lag and smoothing the rate of pressure rise.

By softening the initial combustion event, pilot injection lowers the sharp pressure spike responsible for diesel knock. The result is noticeably quieter engine operation and reduced mechanical stress on pistons, bearings, and connecting rods. For engines operating under strict noise or emissions limits, this preliminary pulse is essential rather than optional.

What Is the Main Injection Event?

The main injection event is the primary fuel delivery that produces the engine's working power. The ECM calculates the precise start angle and duration based on throttle position, rail pressure, engine speed, and intake air temperature. Fuel quantity during this phase directly determines torque output.

Because common rail pressure remains available independent of engine speed, the ECM can shape this event with exceptional precision. According to Bosch Mobility, modern common rail systems can utilize up to ten individual injections per cycle, allowing the main event itself to be split into closely spaced pulses for smoother pressure rise and lower peak combustion temperatures. This level of control is what separates common rail calibration from older mechanical systems.

What Is Post-Injection and When Is It Used?

Post-injection is a late fuel pulse delivered after the main combustion event. The ECM triggers post-injection primarily to raise exhaust gas temperatures for aftertreatment system management. According to Bosch Mobility, post-injection strategies assist in the regeneration of Diesel Particulate Filters (DPF) by increasing exhaust temperatures sufficiently to burn off accumulated soot.

Post-injection can also support selective catalytic reduction (SCR) efficiency by maintaining optimal catalyst operating temperatures. The ECM activates this strategy only when sensor feedback indicates the DPF soot load has reached a regeneration threshold, so fuel is not wasted during normal driving conditions.

With each injection phase precisely mapped, the quality of ECM hardware and injector response determines real-world system performance.

What Are the Advantages of Common Rail Over Other Diesel Systems?

The advantages of common rail over other diesel systems include precise electronic injection control, higher fuel efficiency, lower emissions, and quieter operation. These benefits stem from decoupling pressure generation from injection timing.

Common rail systems decouple fuel pressure from engine speed, giving the ECM full authority over injection events. According to SAE International, common rail systems provide a permanently available injection pressure that is independent of engine speed and load, unlike cam-driven systems such as rotary or unit injectors. This independence allows the ECM to optimize fueling across every operating condition rather than relying on mechanical cam profiles that limit flexibility. For a deeper look at these engineering trade-offs, see our full comparison of common rail diesel vs direct injection.

The key advantages over older diesel injection designs include:

• Higher injection pressures. Rail pressures reaching 2,500 bar produce finer fuel atomization, improving combustion completeness and fuel economy.

• Multiple injection events per cycle. Up to ten individual injections per cycle enable pilot, main, and post-injection strategies that reduce combustion noise and smooth power delivery.

• Lower emissions. Precise injection timing and rate shaping help engines meet stringent standards; post-injection strategies assist DPF regeneration by raising exhaust temperatures.

• Reduced noise and vibration. Pilot injections precondition the combustion chamber before the main pulse, lowering the characteristic diesel knock.

• Consistent performance across RPM ranges. Because pressure is always available in the rail, low-speed torque and high-speed power both benefit equally.

For anyone maintaining or upgrading diesel equipment, common rail's electronic precision represents the clearest path to balancing power output with emissions compliance. Recognizing when that precision degrades is equally important.

What Are Common Signs a Common Rail System Is Failing?

Common signs a common rail system is failing include rough idle, power loss under load, diagnostic fault codes, and excessive exhaust smoke. Each symptom points to a different underlying issue within the fuel delivery chain.

What Does Rough Idle or Engine Misfiring Indicate?

Rough idle or engine misfiring indicates that one or more common rail injectors are delivering inconsistent fuel quantities. When an injector's nozzle wears or its solenoid weakens, the cylinder receives too much or too little diesel, causing uneven combustion. According to G2 Diesel Products, failing common rail injectors often manifest as a rough idle, hard starting when cold, and white or blue smoke at idle. Misfiring that worsens at low RPM typically narrows the cause to injector imbalance rather than a pump or rail fault. Addressing individual injector performance early prevents cascading damage to neighboring cylinders.

What Causes Loss of Power Under Load?

Loss of power under load is caused by insufficient fuel pressure reaching the injectors during high-demand conditions. A worn high-pressure pump, leaking rail pressure regulator, or clogged fuel filter can all restrict the volume of pressurized diesel available when the engine needs it most. Because common rail systems depend on stable, continuously available rail pressure to meet real-time ECM commands, even a small pressure drop during acceleration or heavy towing becomes noticeable. Fuel contamination and internal pump wear are frequent culprits, particularly in high-mileage applications. Understanding common rail pump lifespan factors helps operators anticipate when wear becomes critical. If power fades progressively rather than cutting out suddenly, the high-pressure circuit should be tested first.

Why Would a Common Rail System Trigger Fault Codes?

A common rail system would trigger fault codes when the ECM detects sensor readings that fall outside calibrated parameters. Rail pressure sensors, fuel temperature sensors, and injector circuit monitors all feed data to the ECM in real time. When actual rail pressure deviates from the commanded target, the ECM logs a pressure-regulation fault. Similarly, open or short circuits in injector solenoids generate injector-specific codes. These diagnostic trouble codes help technicians isolate whether the failure originates in the pump, rail, sensor, wiring harness, or individual injector, making them essential for efficient common rail troubleshooting.

What Does Excessive Smoke at the Exhaust Mean?

Excessive smoke at the exhaust means the combustion process is incomplete or chemically imbalanced. White smoke typically signals unburned diesel passing through the cylinder, often due to weak injector atomization or low compression. Black smoke points to over-fueling, where a stuck-open injector or faulty pressure regulator delivers more diesel than the available air can burn. Blue-tinted smoke suggests lubricating oil is entering the combustion chamber, though worn injector seals can also contribute. Since passenger vehicles represent approximately 70% of total common rail system market revenue, these smoke-related symptoms are among the most frequently reported across the installed base.

Recognizing these failure signs early makes the difference between a targeted repair and a complete system overhaul. For a step-by-step walkthrough, see our full guide on how to diagnose common rail fuel system problems.

What Maintenance Does a Common Rail Fuel System Need?

A common rail fuel system needs regular fuel filter replacement, consistent use of clean ultra-low sulfur diesel, periodic injector inspection, and high-pressure pump monitoring. Keeping fuel clean and system pressures within specification prevents the most common failures. Below are the essential maintenance practices that protect each critical component.

Fuel filtration is the first line of defense. Common rail injectors operate with extremely tight tolerances, so even microscopic contaminants cause accelerated wear. Replace primary and secondary fuel filters at OEM-recommended intervals, and always drain water separators before moisture reaches the high-pressure circuit.

Fuel quality matters significantly at these operating pressures. According to ASTM D975 standards, Ultra-Low Sulfur Diesel sold in the United States must meet a maximum limit of 15 ppm sulfur to protect common rail components. Using off-spec or contaminated fuel introduces abrasive particles and corrosive compounds that damage the high-pressure pump, rail, and injector nozzles.

Key maintenance tasks for common rail fuel systems include:

• Replacing fuel filters every 15,000 to 30,000 miles, or per OEM guidelines.

• Draining water separators regularly to prevent corrosion in high-pressure components.

• Using only ULSD fuel meeting ASTM D975 specifications.

• Inspecting injector return lines for leaks or excessive fuel bypass.

• Monitoring rail pressure readings through diagnostic scans to catch pump or regulator degradation early.

• Checking for diagnostic trouble codes related to fuel pressure, injector circuit faults, or ECM communication errors.

Injector performance should be evaluated whenever symptoms such as rough idle, smoke, or power loss appear. An injector leak-off test can reveal whether individual injectors are bypassing excessive fuel. Because common rail injectors handle multiple injection events per cycle at pressures exceeding 2,000 bar, even minor nozzle wear changes spray patterns and combustion efficiency. Proactive diagnostic scanning catches pressure drift and injector imbalance before they cause cascading damage to other components.

For operators who rely on common rail diesel engines across demanding applications, consistent maintenance is far more cost-effective than reactive repairs. Keeping fuel spotless and monitoring system pressures are the two highest-impact habits for extending component life. Knowing where to source reliable replacement parts makes that maintenance even more effective.
