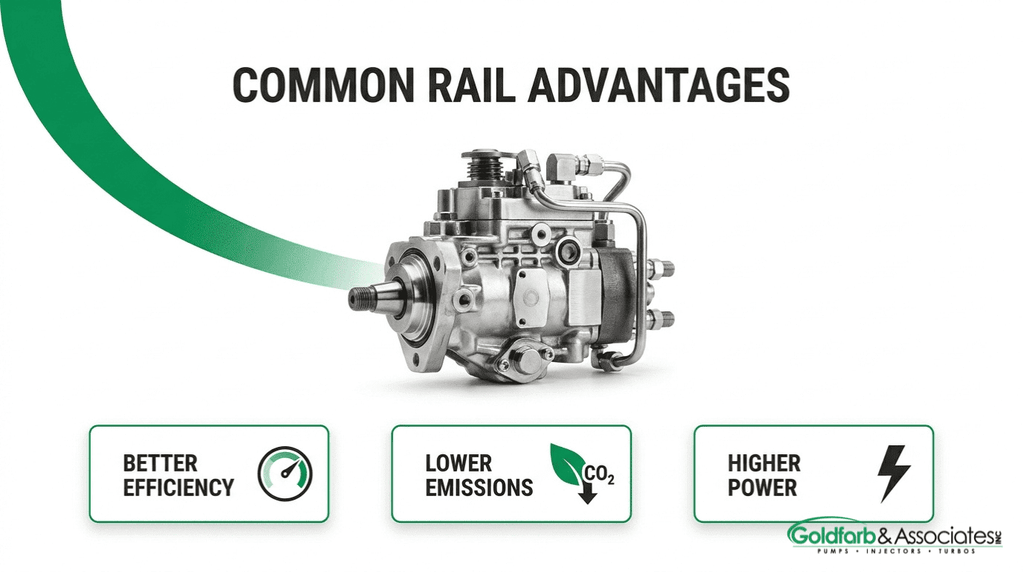

A common rail fuel injection pump is a diesel fuel delivery system that decouples pressure generation from the injection event, using a shared high-pressure accumulator to feed electronically controlled injectors with precise timing and volume.
This guide covers how common rail systems work and differ from conventional injection, their fuel efficiency and performance gains, emissions and noise reduction capabilities, reliability and maintenance factors, and application-specific benefits across major diesel sectors.
Common rail architecture stores fuel at constant high pressure (up to 2,500 bar) and uses an ECU to orchestrate multiple injection events per cycle. This separation of pressure generation from fuel delivery is what enables every downstream advantage over legacy mechanical systems.
Fuel efficiency improves by 3% to 7% through high-pressure atomization, staged pilot and post-injection events, and real-time electronic timing control that eliminates the fixed compromises of cam-driven systems. These same precision controls unlock up to 25% more power and torque while reducing fuel consumption by 15% to 20% compared to older designs.
On the emissions side, common rail's cycle-by-cycle injection precision enabled Tier 4 standards compliance, reducing combined PM and NOx by up to 99% compared to 1996 levels. Pilot injection also eliminates the harsh pressure spikes that cause diesel knock, producing noticeably quieter, smoother operation.
Common rail pumps typically last 100,000 to 150,000 miles due to steady-state pressure operation and fewer reciprocating components, though fuel quality remains the single most critical reliability factor. On-highway fleets, agricultural equipment, construction machinery, and marine engines each leverage these advantages differently based on their operating profiles.
How Does a Common Rail Fuel Injection System Work?
A common rail fuel injection system works by decoupling pressure generation from the injection event. A high-pressure pump feeds fuel into a shared accumulator, called the rail, which then distributes it to electronically controlled injectors. This architecture enables precise, independent control over injection pressure, timing, and volume regardless of engine speed.
Unlike older mechanical systems where injection pressure fluctuates with engine RPM, common rail maintains constant high pressure at the rail. Systems can reach operating pressures of up to 2,500 bar (36,000 psi), which enhances fuel atomization and air-fuel mixing inside the combustion chamber. Finer atomization means more complete combustion, translating directly into improved fuel economy and reduced exhaust emissions.
The electronic control unit (ECU) orchestrates multiple injection events within a single combustion cycle. A typical sequence includes pilot injection, main injection, and post-injection:
-
Pilot injection delivers a small fuel charge before the main event, preconditioning the cylinder to reduce combustion noise and pressure spikes.
-
Main injection supplies the primary fuel volume that generates engine power and torque.
-
Post-injection occurs approximately 0.2 ms after the main event, oxidizing residual soot in the late combustion phase to reduce particulate matter output.
According to a study published in MDPI (Processes), increasing injection pressure from 300 to 700 bar results in a 15% reduction in average fuel droplet size and a 50% reduction in liquid ligament length at the end of injection. These improvements in spray quality are what allow modern common rail injectors to deliver up to 25% more power and torque while simultaneously reducing fuel consumption by 15% to 20% compared to legacy mechanical systems.
The practical impact extends beyond individual engine performance. Common rail systems help reduce CO2 emissions by approximately 11.5% in diesel generators when integrated with optimized combustion strategies. However, fuel contamination remains the leading cause of common rail system failure, since extremely high operating pressures make these systems highly sensitive to water and particulates in the fuel supply.
Bosch launched the first commercial common rail system for passenger cars in 1997, and the technology has since scaled dramatically. The global diesel common rail injection system market is projected to reach USD 40.39 billion by 2034, growing at a CAGR of 5.77%, according to Fortune Business Insights. For operators weighing whether to invest in this technology, these numbers reflect not just market confidence but proven, measurable advantages in efficiency and emissions control that mechanical systems simply cannot match. Understanding what sets common rail apart from conventional injection designs clarifies why adoption has accelerated so rapidly.
What Makes Common Rail Different From Conventional Injection?
Common rail differs from conventional injection by decoupling pressure generation from the injection event itself. Conventional systems, such as port-and-helix or distributor-type pumps, generate injection pressure mechanically at the moment of delivery, tying pressure directly to engine speed and camshaft position. Common rail stores pressurized fuel in a shared accumulator rail and uses electronically controlled injectors to meter fuel independently of engine RPM. This separation gives common rail systems flexible control over injection pressure, timing, and the number of injection events per combustion cycle.
According to DieselNet, the common rail system uses a high-pressure pump to feed a shared accumulator, which then distributes fuel to electronically controlled injectors. Conventional mechanical systems lack this intermediary reservoir, meaning each injection pulse must be individually pressurized by cam-driven plunger action. That mechanical linkage limits both the maximum achievable pressure at low speeds and the ability to split injection into multiple stages.
The practical result is significant. Common rail maintains constant high pressure at the nozzle regardless of engine speed, which improves low-speed torque and reduces mechanical noise. Conventional systems, by contrast, deliver lower pressure during low-RPM operation, leading to coarser fuel atomization and rougher combustion. Common rail's electronic actuators also enable multiple injection events per cycle, including pilot, main, and post-injection pulses, a capability that mechanically governed systems simply cannot replicate with the same precision. For operators evaluating different types of fuel injection pumps, this architectural distinction drives every downstream advantage in efficiency, emissions, and performance.
Why Does Common Rail Deliver Better Fuel Efficiency?
Common rail delivers better fuel efficiency by combining high-pressure atomization, multiple injection events, and electronic timing control to extract more energy from each drop of diesel. Upgrades to common rail fuel systems can yield efficiency improvements of 3% to 7% depending on engine size and application.
How Does High-Pressure Atomization Reduce Fuel Waste?
High-pressure atomization reduces fuel waste by breaking diesel into extremely fine droplets that mix more thoroughly with intake air. Smaller droplets expose greater surface area to combustion temperatures, ensuring more complete burn and less unburned fuel exiting the cylinder.
Common rail systems can reach operating pressures up to 2,500 bar (36,000 psi), which is far beyond what mechanical injection systems produce. At these pressures, fuel spray patterns become highly uniform, minimizing wall-wetting on cylinder surfaces where fuel would otherwise go unburned. According to a 2024 MDPI study on common rail spray behavior, increasing injection pressure from 300 to 700 bar results in a 15% reduction in average fuel droplet size and a 50% reduction in liquid ligament length at the end of injection.
For operators tracking fuel costs across large fleets, this level of atomization translates directly into measurable savings per mile.
How Do Multiple Injection Events Per Cycle Improve Efficiency?
Multiple injection events per cycle improve efficiency by shaping the combustion process into controlled stages rather than a single fuel dump. Common rail systems allow flexible control of injection pressure independently of engine speed and load, enabling events such as pilot, main, and post-injection within a single combustion cycle.
-
Pilot injection delivers a small fuel charge before the main event, raising cylinder temperature gradually to reduce ignition delay and prevent the harsh pressure spike that wastes energy.
-
Main injection provides the primary combustion charge under optimized conditions created by the pilot event.
-
Post-injection introduces a late fuel pulse that raises exhaust temperature for aftertreatment support while also burning residual soot.
This staged approach ensures each fuel charge ignites under favorable conditions, reducing the energy lost to incomplete combustion and excessive heat rejection.
How Does Electronic Timing Control Optimize Combustion?
Electronic timing control optimizes combustion by adjusting injection events to the exact crank angle and load condition where fuel burn is most efficient. Modern common rail injectors utilize solenoid or piezoelectric actuators to achieve precise fuel metering and timing, with response times in the millisecond range.
Mechanical systems rely on fixed cam profiles, which means injection timing is a compromise across the entire RPM range. Electronic control eliminates that compromise. The ECU continuously recalculates optimal timing based on sensor data for engine speed, load, temperature, and boost pressure. Each injection event fires at the precise moment that maximizes cylinder pressure contribution to the power stroke.
This real-time adaptability is what separates common rail from legacy systems in fuel economy terms. With timing precision handled electronically, common rail technology also unlocks significant gains in engine power output.
How Does Common Rail Improve Engine Performance and Power?
Common rail improves engine performance and power by maintaining constant fuel pressure independent of engine speed, enabling pilot injection for smoother combustion, and supporting higher peak output through precise electronic control.
How Does Constant Rail Pressure Enable Consistent Torque?
Constant rail pressure enables consistent torque by maintaining high fuel pressure at the nozzle regardless of engine RPM. According to Highway and Heavy Parts, unlike port-and-helix or distributor systems where injection pressure is tied to engine speed, common rail maintains constant high pressure at the nozzle, reducing mechanical noise and improving low-speed torque.
This decoupled pressure design means the engine delivers reliable pulling force during low-RPM operations, such as towing heavy loads uphill or powering hydraulic implements at idle. Operators notice the difference most during lugging conditions, where conventional systems would starve for adequate injection pressure. For heavy-duty and industrial diesel applications, this consistency across the RPM band translates directly into more predictable, usable power.
How Does Pilot Injection Smooth Out Power Delivery?
Pilot injection smooths out power delivery by introducing a small, precisely timed fuel charge before the main injection event. This initial charge raises cylinder pressure and temperature gradually, so the main combustion event ignites against an already-warming environment rather than firing into a cold chamber.
The result is a controlled pressure rise instead of an abrupt spike. Softer combustion onset reduces the sharp knock characteristic of older diesel designs, which directly translates to smoother torque output felt at the crankshaft. In practice, pilot injection is one of the most underappreciated advantages common rail offers; it transforms the driving or operating experience from rough and percussive to refined and linear, particularly at partial throttle and during transient load changes.
How Does Common Rail Support Higher Peak Power Output?
Common rail supports higher peak power output by enabling electronically optimized injection pressure, timing, and duration at every operating point. The ECU adjusts these parameters in real time, ensuring each cylinder receives the ideal fuel quantity for maximum combustion efficiency under full load.
A 2015 study published in the Journal of Mechanical Engineering found that approximately 65% of common rail injector designs reach up to 300,000 km before requiring replacement, confirming the system's durability even under sustained high-output conditions. Because injection pressure remains available on demand rather than being limited by camshaft speed, common rail engines extract more energy per combustion cycle at peak RPM. This electronic precision makes common rail turbo diesel the foundation for modern high-performance diesel platforms across on-highway, construction, and marine sectors.
With performance gains established, common rail's emissions benefits further define its advantage over legacy systems.
Why Does Common Rail Produce Lower Emissions?
Common rail produces lower emissions because its electronic controls optimize injection timing, fuel atomization, and post-combustion cleanup simultaneously. According to DieselNet, Tier 4 emission standards enabled by common rail technology reduced PM and NOx emissions by approximately 90% compared to previous tiers. The subsections below explain how timing, atomization, and post-injection each contribute.
How Does Precise Injection Timing Reduce NOx Emissions?
Precise injection timing reduces NOx emissions by controlling exactly when fuel enters the combustion chamber relative to piston position. NOx forms when combustion temperatures spike too high for too long. Common rail's electronically controlled injectors adjust timing in millisecond increments, shortening peak temperature windows and limiting nitrogen oxide formation.
By advancing or retarding injection based on real-time engine conditions, the ECU avoids the fixed timing compromises of mechanical systems. A 2015 report from Cross Company on Final Tier 4 regulations found that combined PM and NOx emissions from diesel engines were reduced by 99% compared to 1996 levels. This level of reduction would be impossible without cycle-by-cycle timing precision, making electronic injection control the single most impactful lever for NOx compliance.
How Does Better Atomization Lower Particulate Matter?
Better atomization lowers particulate matter by breaking fuel into smaller droplets that mix more thoroughly with intake air. Larger droplets burn incompletely, leaving unburned hydrocarbons that form soot. Common rail systems operating at pressures up to 2,500 bar produce a fine fuel mist that vaporizes quickly across the entire combustion chamber.
This uniform air-fuel mixture ensures nearly complete combustion, leaving far less carbonaceous residue. The result is a measurable reduction in visible smoke and filter-clogging particulates. For operators running in regions with strict opacity testing, improved atomization often eliminates compliance issues without requiring additional aftertreatment hardware upgrades.
How Do Post-Injection Events Support DPF Regeneration?
Post-injection events support DPF regeneration by delivering a small, precisely timed fuel pulse after the main combustion event. This late-cycle fuel does not produce mechanical work. Instead, it raises exhaust gas temperatures high enough to burn off accumulated soot trapped in the diesel particulate filter.
Common rail's independent pressure control makes this possible without affecting primary combustion efficiency. Mechanical injection systems lack the flexibility to add secondary fuel events with this level of precision. By automating DPF regeneration through post-injection, common rail systems extend filter service life and maintain consistent exhaust backpressure, keeping the entire aftertreatment system functioning within design parameters.
With emissions addressed, common rail's impact on engine noise and vibration reveals another operational advantage.
How Does Common Rail Reduce Engine Noise and Vibration?
Common rail reduces engine noise and vibration by using pilot injection to initiate a small, controlled pre-combustion event before the main fuel delivery. This softens the abrupt pressure rise that causes diesel knock, the characteristic clatter associated with older mechanical injection systems.
In conventional systems, a single large injection creates a sudden spike in cylinder pressure. Common rail's electronic control splits fuel delivery into multiple precisely timed events within each combustion cycle. The pilot injection, delivered milliseconds before the main event, raises cylinder temperature and pressure gradually. When the main injection follows, combustion proceeds more smoothly, producing lower peak pressure rates and significantly less mechanical shock.
According to DieselNet, common rail maintains a constant high pressure at the nozzle independently of engine speed, unlike port-and-helix or distributor systems where injection pressure fluctuates. This pressure stability eliminates the pulsation-driven vibrations common in cam-driven pump designs, where each injection event transfers mechanical stress through the drivetrain. The result is a quieter, smoother-running engine across the entire operating range, from idle to full load.
For operators of trucks, construction equipment, or marine engines, reduced noise and vibration translate directly to less driver fatigue and lower structural stress on engine mounts and surrounding components. Understanding how common rail achieves this refinement highlights why the technology dominates modern diesel applications; maintaining these advantages depends on reliable pump and injector components.
What Are the Reliability Advantages of Common Rail Pumps?
The reliability advantages of common rail pumps stem from their simplified mechanical design and decoupled pressure architecture. The sections below cover how separating pressure generation from injection adds durability and why these pumps experience less mechanical wear.
How Does Separating Pressure Generation From Injection Add Durability?
Separating pressure generation from injection adds durability by isolating the high-pressure pump from the rapid, repetitive stress of individual injection events. In conventional systems, each injection cycle forces the pump to generate and deliver pressure simultaneously, compounding mechanical strain. Common rail architecture eliminates this problem; the pump continuously charges a shared accumulator rail at steady pressure, while electronically controlled injectors handle fuel delivery independently.
This steady-state operation reduces pressure spikes and thermal cycling within the pump itself. According to a statistical evaluation published in the Journal of Mechanical Engineering (ResearchGate), approximately 65% of common rail injector designs reach up to 300,000 km before requiring replacement. Consistent load distribution across the system is a key reason common rail components outlast their mechanically driven predecessors.
Why Do Common Rail Pumps Experience Less Mechanical Wear?
Common rail pumps experience less mechanical wear because they operate under continuous, steady pressure rather than the pulsating load cycles found in port-and-helix or distributor-type systems. Without the need to generate sharp pressure peaks for each injection event, internal fuel injection system components like plungers, barrels, and check valves endure far less fatigue stress.
Fewer moving parts also contribute. Since injection timing and metering are handled electronically at the injector, the pump's mechanical complexity drops significantly. This reduction in reciprocating components means fewer friction surfaces and lower heat generation during operation. For most applications, common rail fuel pumps typically last between 100,000 and 150,000 miles, or roughly 5,000 to 10,000 operating hours in industrial equipment. Fuel quality remains the most critical maintenance factor, since contamination poses the greatest threat to long-term reliability.
With reliability established, the next consideration is which specific applications benefit most from these advantages.
Which Applications Benefit Most From Common Rail Advantages?
The applications that benefit most from common rail advantages span on-highway trucking, agriculture, construction, and marine sectors. Each environment leverages specific common rail strengths differently.
What Are the Advantages for On-Highway Diesel Vehicles?
The advantages for on-highway diesel vehicles center on emissions compliance, fuel savings, and consistent power across variable driving conditions. Common rail injection enables trucks and buses to meet increasingly strict regulatory thresholds while maintaining the torque needed for heavy loads.
According to a 2015 Cross Company report on Tier 4 diesel engine standards, combined PM and NOx emissions from diesel engines were reduced by 99% compared to 1996 levels, a milestone made possible by common rail precision. Highway fleets also gain from smoother low-speed operation in urban stop-and-go cycles, where constant rail pressure sustains torque without the noise spikes typical of older mechanical systems. For any fleet manager balancing regulatory compliance with operating costs, common rail remains the most practical fuel system architecture available.
What Are the Advantages for Agricultural Equipment?
The advantages for agricultural equipment include reliable power delivery across wide load ranges and reduced fuel consumption during long field operations. Tractors, harvesters, and sprayers frequently shift between idle, partial load, and peak demand within a single pass. Common rail injection maintains stable pressure regardless of engine speed, so torque stays consistent whether a combine is cutting through dense crop rows or transitioning between headlands.
Multiple injection events per cycle also smooth out combustion at the low RPMs typical of field work, reducing vibration that would otherwise accelerate wear on implements and operator fatigue. For operations running equipment 10 or more hours per day, even modest efficiency gains compound into meaningful seasonal fuel savings.
What Are the Advantages for Construction and Industrial Engines?
The advantages for construction and industrial engines relate to durability under sustained high-load conditions, emissions compliance on regulated jobsites, and operational flexibility. Excavators, loaders, and generators frequently operate at constant high output for extended periods, placing continuous stress on fuel delivery components.
Common rail systems decouple pressure generation from engine speed, allowing the pump and injectors to maintain optimal atomization even when the engine holds a steady RPM under load. Industrial engines in stationary power generation or compressor applications benefit similarly; electronic timing control adjusts injection events to match real-time load demands without mechanical recalibration. This adaptability makes common rail the preferred architecture for equipment expected to deliver 5,000 to 10,000 operating hours before major service intervals.
What Are the Advantages for Marine Diesel Applications?
The advantages for marine diesel applications include superior fuel economy during long cruising intervals, lower exhaust emissions in regulated waterways, and smoother operation at sustained low RPMs. Marine engines often run for extended hours at partial throttle, a condition where older mechanical injection systems lose atomization quality and waste fuel.
Common rail maintains high injection pressure independently of engine speed, ensuring consistent combustion efficiency whether a vessel is maneuvering in port or cruising offshore. The ability to execute post-injection events also supports exhaust aftertreatment systems that many marine operators now require for environmental compliance. For vessel owners balancing fuel budgets against tightening maritime emission regulations, common rail technology addresses both priorities simultaneously.
With application-specific benefits established, understanding routine maintenance keeps these advantages performing over the long term.
What Are the Maintenance Considerations for Common Rail Pumps?
The maintenance considerations for common rail pumps center on fuel quality management, contamination prevention, and adherence to service intervals. Because these systems operate at extremely high pressures, even minor contaminants can cause accelerated wear or failure.
Key maintenance considerations include:
-
Fuel filter replacement on schedule. Common rail systems demand clean fuel. Filters should be changed at manufacturer-recommended intervals to prevent particulates from reaching precision components.
-
Water separator drainage. According to Highway and Heavy Parts, fuel contamination is the leading cause of common rail system failure, as these systems are highly sensitive to water and particulates due to their extremely high operating pressures.
-
Fuel quality monitoring. Only use fuel that meets OEM specifications. Low-quality or contaminated diesel accelerates corrosive wear on injector nozzles and pump internals.
-
Regular system diagnostics. Electronic control modules should be scanned periodically to catch pressure deviations, injector drift, or fault codes before they escalate.
-
Injector and pump lifespan awareness. Common rail fuel pumps typically last between 100,000 and 150,000 miles, or approximately 5,000 to 10,000 operating hours in industrial applications. Planning replacements proactively avoids unscheduled downtime.
For operators running common rail engines in demanding environments like construction or agriculture, investing in premium filtration and shorter service intervals pays dividends in long-term reliability. A thorough fuel injection pump buyer's guide simplifies that maintenance planning.
How Do You Choose the Right Common Rail Injection Pump?
You choose the right fuel injection pump by matching it to your engine's make, model, and application requirements. The sections below cover sourcing from a trusted supplier and the core advantages to keep in mind.
Can Goldfarb and Associates Supply Common Rail Pumps for Your Engine?
Yes, Goldfarb & Associates can supply common rail pumps for virtually any diesel engine application. With an inventory of over 20,000 unique part numbers, Goldfarb & Associates stocks new, used, and remanufactured injection pumps covering a wide range of manufacturers. Every part undergoes hand inspection and must pass a full quality checklist before shipping. Same-day shipping is available for orders placed Monday through Friday before 3:30 PM EST.
Whether the application involves on-highway trucks, agricultural equipment, construction machinery, or marine engines, Goldfarb & Associates maintains the inventory depth and technical expertise to match the correct common rail pump to your specific engine. For parts that prove difficult to locate, knowledgeable staff can assist by phone at 301-770-4514 or through the online search tool.
What Are the Key Takeaways About Common Rail Advantages?
The key takeaways about common rail advantages center on superior fuel efficiency, increased power output, lower emissions, and improved reliability compared to legacy mechanical injection systems. Common rail technology decouples pressure generation from the injection event, giving the ECU independent control over timing, pressure, and multiple injection events per cycle. This precision translates directly into cleaner combustion, quieter operation, and reduced mechanical wear.
For any diesel operator weighing an upgrade or replacement, prioritizing a quality-tested common rail pump from a trusted supplier like Goldfarb & Associates ensures those advantages are realized from day one.
