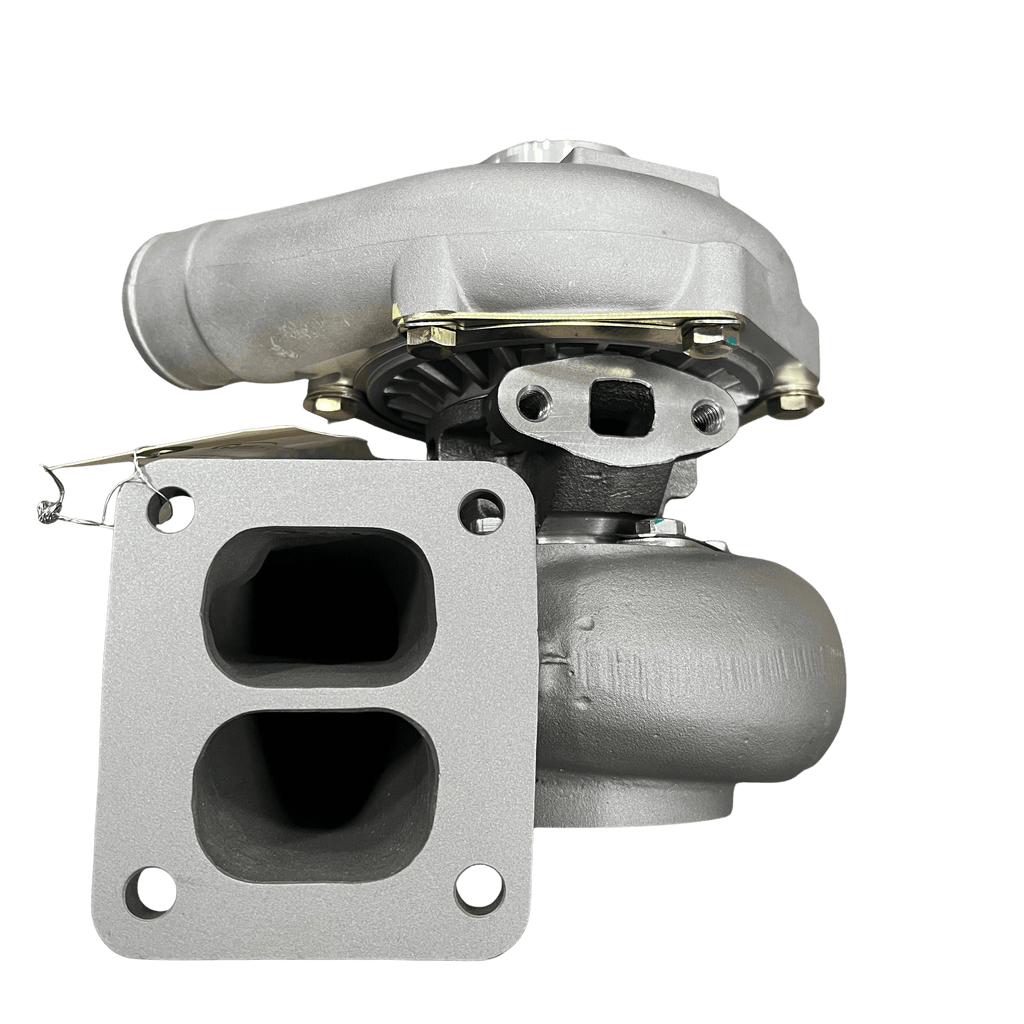

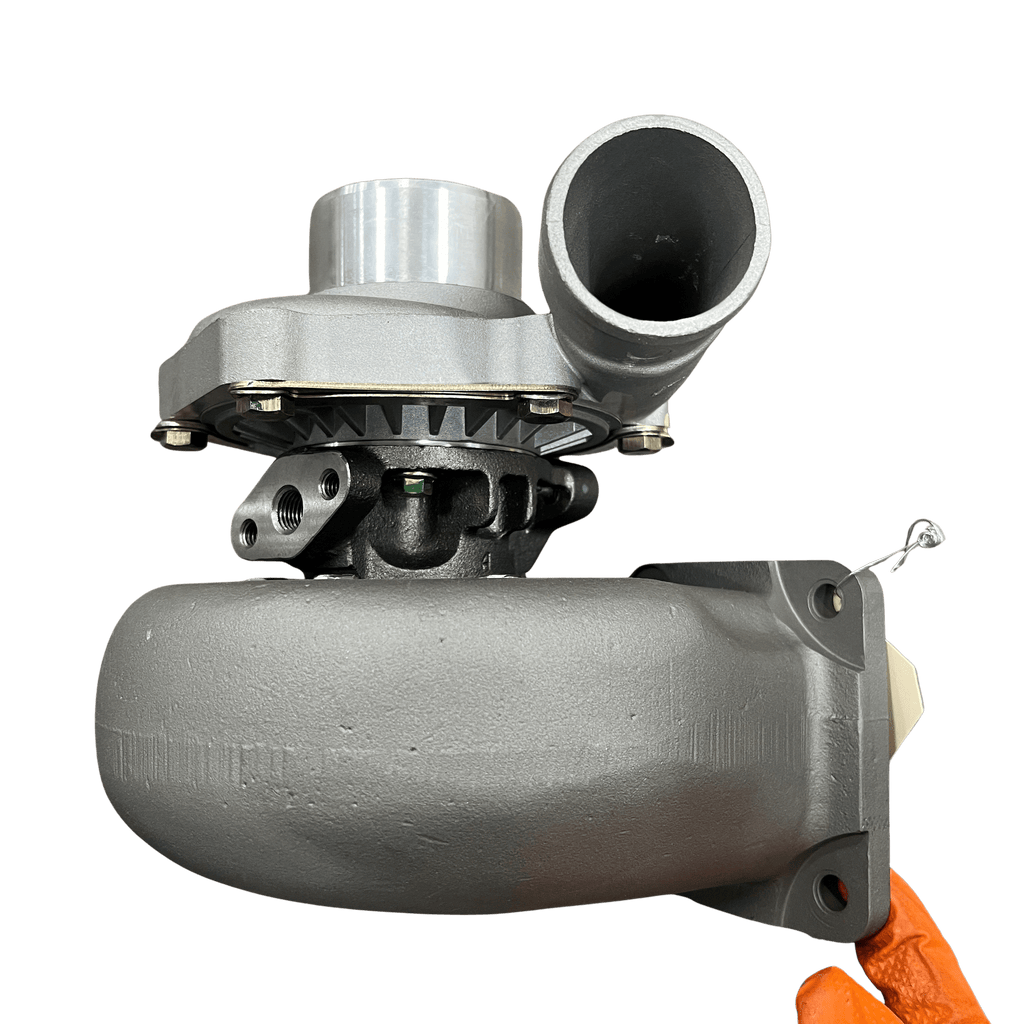

7N4651R (409410-0006) Rebuilt Schwitzer T04B91 Turbocharger fits CAT 518 SKIDDER Engine

Goldfarb & Associates Inc

$950.00

Guaranteed Genuine Parts - No Core Charge - Free Shipping

Quantity available: 1

Take an extra 5% off your first order. → View Promo Here

Guaranteed Safe Checkout

7N4651 (409410-0006) Rebuilt Schwitzer T04B91 Turbocharger fits CAT 518 SKIDDER Engine

Product Description

Applications

1973- Caterpillar 963, 950B with 3304-Industrial, 3304T DITAJWAC GSS Engine

1973- Caterpillar 120G-Grader with 3304-Industrial, 3304T DITAJWAC GSS Engine

1973- Caterpillar Generating Set with 35146 DITAJWAC GS Engine


Part Number 409410--5006S
Previous Version 409410-0004, 409410-0005, 409410-0007, 409410-0008, 409410-0010, 409410-0012, 409410-4, 409410-5, 409410-7, 409410-8, 409410-10, 409410-12, 409410-5006S , 409410-5004S, 409410-5005S, 409410-5007S, 409410-5008S, 409410-5010S, 409410-5012S
OE number 7N4651, 4N6858, 4N6859, OR5796, 7N1709, 7N2342, 1W5160, 2W8139, 7C2175, 0R5796
Year 1973-
Description Earth Moving
CHRA 408077-0102 (408077-5102S, 4N6860, 4N4780, 0R5888)
Turbo Model T04B91
Prefix 9GD, 9HD, 9JD, 9KD, 9LD, 9MD, 9ND, 9PD, 9RD, 9WD, 9XD, 9YD, 9ZD, MGC, 1EG, 1NG, 1PG, 99Z, 9BD, 9CD, 9DD, 9ED, 9FD
Fitted To Model 35146 DITAJWAC GS
Engine 3304, 3304DIT, 3304-Industrial, 3304T DITAJWAC GS
Displacement 7.0L, 7000 ccm, 4 Cylinders
KW 127
Fuel Diesel
Paving Compactor CP-643, CP-653, CS-643, CS-653
Machine Engine 3304
Generator Set Engine 3304, 3304B, SR4
Generator SR4
Excavator 215, 215B, 215C, 215D, 219, 219D, 225, 225B, 225D, 229, E240, EL240
Industrial Engine SR4, 3304, 3304B, D330C
Motor Grader 120G, 130G, 12G, 130G, 140G
Track-type Skidder D4HTSK III, D5HTSK II, 54H
Track-type Loader 963, 963
Track-type Tractor 4S, 5A, 5P, 5S, 140, 141, 143, 5, D4E, D4H, D4H III, D4H XL, D5H, D5H XL, 55
Wheel-type Skidder FB518, 518, 518C
Wheel-Type Loader 936, 936E, 936F, 950B, 950B/950E, 950E, G936
Angle α (compressor housing) 150º
Angle β (turbine housing) 15º
Bearing Housing 430027-0051 (186880, 186882, 407285-0018, 430027-0031, 430027-0035)
Turbine Wheel 451309-0003 (407276-0006, 407276-0019, 410188-0003, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0007, 446905-0010, 451309-0004)(33164101883)(Ind. 74. mm, Exd. 64.61 mm, 11 Blades)
Comp. Wheel 409179-0018 (104220-0000)(331640917918)(Ind. 48.38 mm, Exd. 70. mm, 6+6 Blades, Flatback W. Extended Hub type)
Back plate 408045-0051 (311708, 408045-0034, 408045-0035)(331640804534)
Heat shield Number 409299-0001 (409299-0000, 407565-0000)(3316407565)
Repair Kit 468100-0000 (3524796, 310063, 188401-0000)(6N7236, 2W0716)(1100040750)

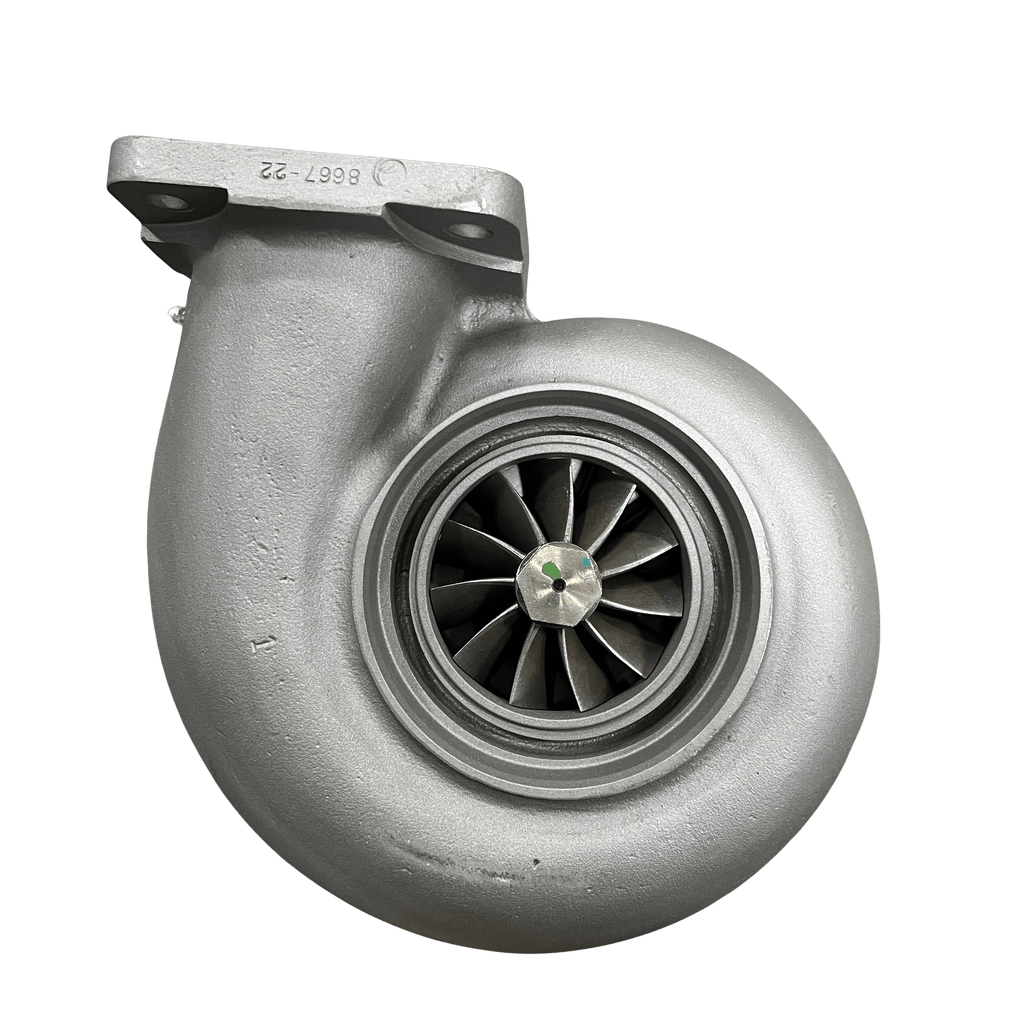

Turbine Housing 408667-0022 (7N1687)

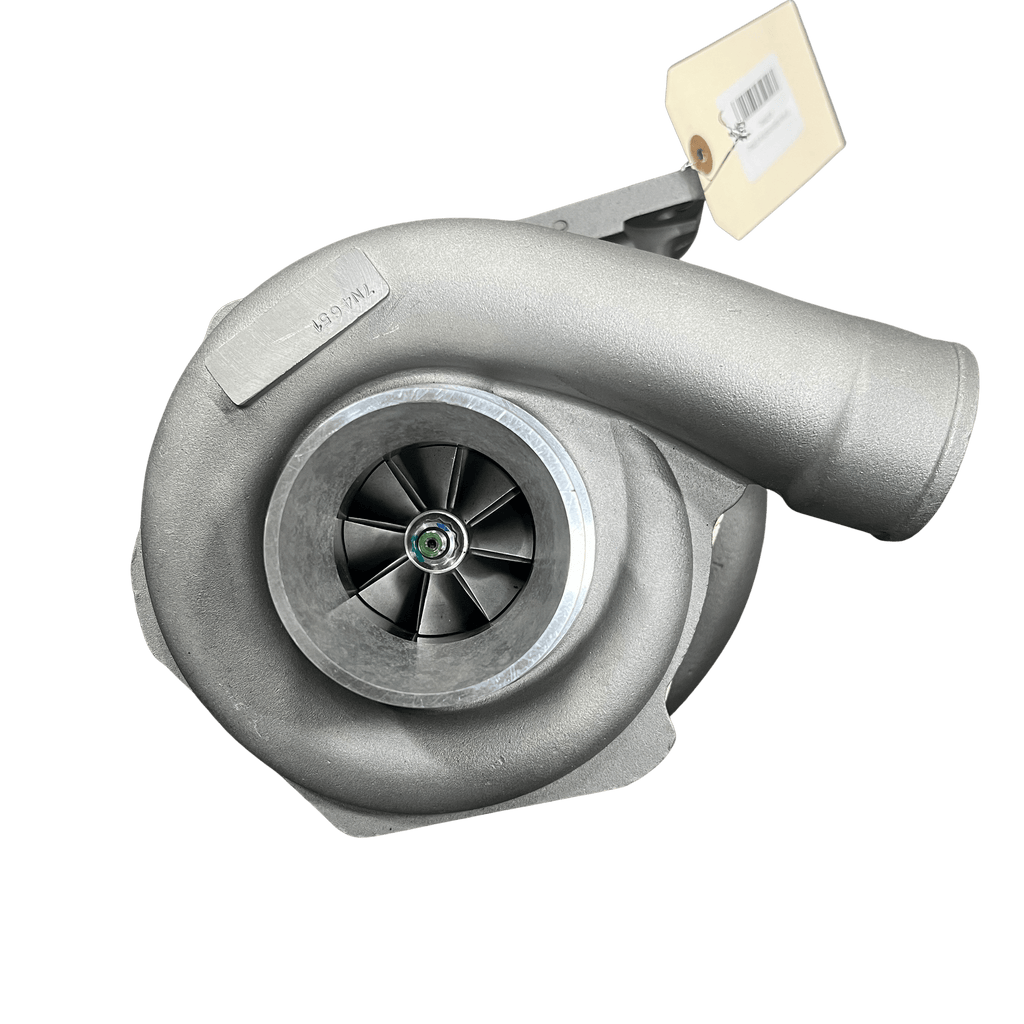

Compressor Cover 408173-0008 (4N6862)
Turbine Housing AR 1.52
Gasket (turbine inlet) 409039-0000 (2475017, 2485001, 409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel)
Gasket (turbine outlet) 409196-0001 (210226)(Stainless Steel)
Gasket oil inlet 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper)
Gasket (oil outlet) 210021 (210021-0000, 409037-0000, 413671-0000, 3519807, 311496)(1900000027)(Paper)
Manufacturer Honeywell-Garrett
