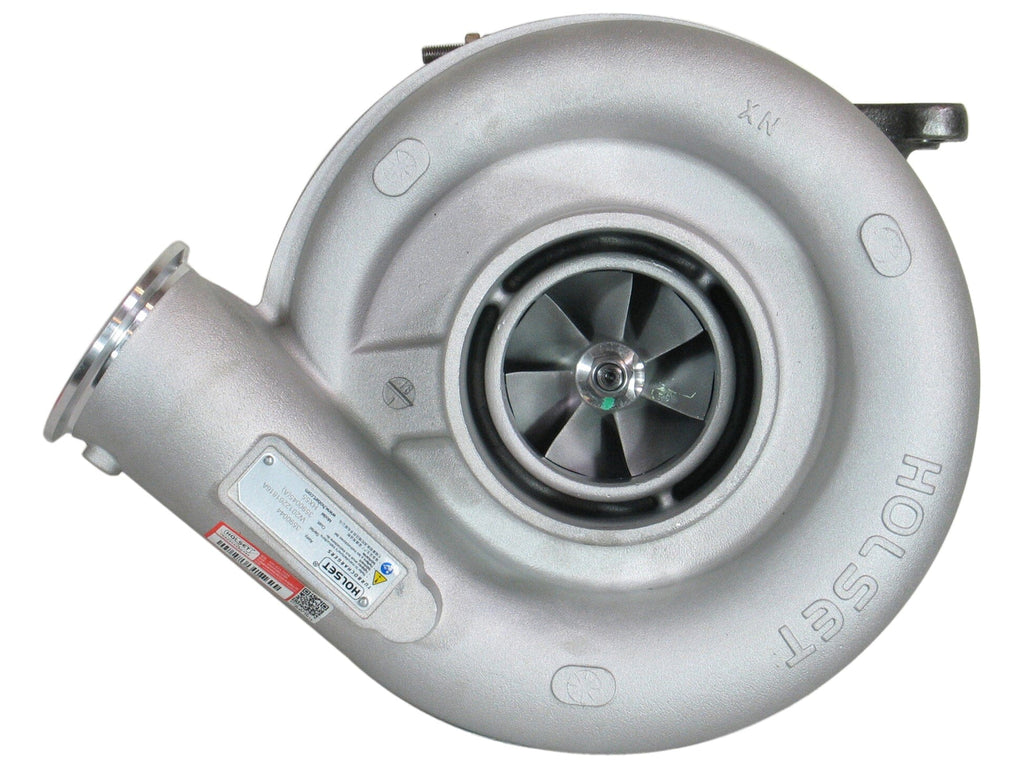

3590044R (3800471; 4033813H ; 3536995; 1080237R, 178923, 198382D, 2834419, 286TC21006000, 3536149, 3536995, 3536996, 3590045, 4033813;3803938) Rebuit Holset HX55 Turbocharger Fits 1999-2012 Cummins Delta Alpha Plus Truck, Bus with ISM, ISME, M11 Engine
Goldfarb & Associates Inc
3590044R (3800471; 4033813H ; 3536995; 1080237R, 178923, 198382D, 2834419, 286TC21006000, 3536149, 3536995, 3536996, 3590045, 4033813;3803938) Rebuit Holset HX55 Turbocharger Fits 1999-2012 Cummins Delta Alpha Plus Truck, Bus with ISM, ISME, M11 Engine
Product Description
| Part Number | 3590044 |
| Previous Part Number | 1080237R, 178923, 198382D, 2834419, 286TC21006000, 3536149, 3536995, 3536996, 3590044, 3590045, 4033813, 4033813H, 4039173, 4046031 |
| OE number | 3800471, 3800471NX, 3800471RX, 3803938, 3803938NX, 3803938RX, 3804503, 3804503NX, 3804503RX |
| Year | 1999-09 |
| Description | Freightliner Truck, Bus, Diamond & Delta Plus Alpha, International |
| Manufacturer Part Number | 4046031, 2834419, 4039173, 4033813H 2834419, 3590045, 3780171, 3788312, 3800471, 3800471RX |
| CHRA | 3580726 (3580726H, 4030942, 5451478)(1153055900) |
| Turbo Model | HX55-E9861L/H22E11D, HX55 |
| Engine Manufacturer | Cummins |
| Displacement | 11.0L, 1100 ccm |
| Engine | M11, ISM, ISME 380 20, B5.9-C, ISME Euro-2 & Euro-3 |
| Fuel | Diesel |
| Angle α (compressor housing) | 8/153/264/330° |
| Angle β (turbine housing) | 90/92/130° |
| Bearing Housing | 3535704 (353557500, 3535575)(1153055450) |
| Turbine Wheel | 3535983 (353598300)(Ind. 85.8 mm, Exd. 76.95 mm, 12 Blades)(1153055436, 1100016122B) |
| Comp. Wheel | 3534329 (4040739, 4040740, 4041666)(Ind. 65.1 mm, Exd. 99.06 mm, 12 Blades)(1153055400, 1200016217) |
| Back plate | 3528096 (352809600)(1153055300, 1800016024) |
| Heat shield Number | 3529846 (3533038)(353303800, 352984600)(1153055340) |
| Repair Kit | 3580762 (3575181)(358076200, 357518100)(1153055751, 5000020023) $ |
| Turbine Housing | 3536942 |
| Compressor Cover | 3594775 |
| Compressor Cover (Noise Baffle) | 3595516 |
| Compressor Cover (Ring) | 3531238 |
| Gasket (turbine inlet) | 210847 Inox Steel |
| Gasket (oil outlet) | 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper) |
| Gasket Kit | 3800279 (215183)(2090505445) |
| Manufacturer | HOLSET |
Applications
2007-12 Cummins Truck, Bus with ISM, ISME, M11 Engine
1999-09 Cummins Truck Bus, Truck Delta Alpha Plus with M11 Engine
*****
If expedited shipping is needed, please CALL US to see if this option is available before placing your order * Our number is 301-770-4514
NOTE: We DO NOT take any responsibility if you place an order and pay for overnight or expedited shipping without confirming with us and if we are not able to ship the part that way.
If that option is not available the part will ship out to you whenever it becomes available again for shipment. This can either be the next week or in 2-3 weeks of order. In very rare cases it can take about 4 weeks until we have a part ready to ship. Always confirm with us before placing an order.
We offer free FedEx ground shipping only in the US.
All FedEx International shipping rates will be shown and calculated at checkout when you add the part to your cart and after you enter all the shipping details.
Please follow all the steps required so the checkout process is done properly.
You can complete your payment via PayPal, Affirm or any debit / credit card.
Call us at 301-770-4514 to double check if any of the expedited shipping options you see at checkout are available!
Call us if you have any questions regarding the part you are looking at.
We will be happy to confirm details with you.
*****
Goldfarb & Associates offers fast and free shipping via UPS ground within 24 hours of purchase (Monday through Friday). Expedited and international shipping can be arranged with an additional charge by contacting a customer support representative. All products shipped by Goldfarb & Associates are packaged with highly secure, foam filled protection and are fully insured. If upon receipt of package the product is damaged, Goldfarb & Associates will fully refund or replace the purchased item.
Please direct additional questions regarding shipping methods can be directed to the customer support team at Goldfarb & Associates (301) 770-4514. Please have your full name, product number, and order number ready at the time of contact.
Goldfarb & Associates stands behind the quality of all of their products.
Cores
Goldfarb & Associates guarantees the used part you are purchasing is in good rebuildable shape. NOTE: we do not guarantee the used parts will be operational without a rebuild. All turbochargers, if noted in good condition, will have non-damaged wheels and housings, and acceptable amounts of shaft play. All fuel injectors and injection pumps will be physically good from external inspection. If the product is received to be in a condition different from that guaranteed, Goldfarb & Associates will refund or replace the product when possible.
New & Remanufactured Parts
Goldfarb & Associates guarantees the product you are purchasing is ready to be installed. All new and remanufactured parts are sold without a core charge and without a warranty unless mutually agreed upon. Please contact a Goldfarb & Associates sales representative to discuss condition of product and warranty arrangements (301) 770-4514.
