Buy New, Used, & Rebuilt Diesel Engine Nozzles Online
Goldfarb & Associates offers the highest quality diesel engine nozzles from manufacturers, including trusted Bosch products. With a wide range of diesel engine nozzles for sale, Goldfarb will be able to source what you need.
In addition to our warehouse's diesel engine parts inventory, we also have professional relationships with the most reputable parts suppliers in the industry. Goldfarb will have you covered whether you're sourcing parts for passenger cars, light or heavy-duty trucks, or industrial, agricultural, or marine vehicles.
If your vehicle's engine has a diesel engine nozzle, Goldfarb can help you identify the perfect replacement at a reasonable price. If you have any questions about new or rebuilt diesel engine parts, reach out with our live chat option (see the bottom right of this webpage).
0-432-131-876N (3909533) New Bosch 3.0L 83kW Nozzle Cummins 4B3.9
0-432-133-879N (3919091) Rebuilt Bosch Nozzle Cummins
0-433-171-208N (3919350) New Bosch Nozzle Cummins DLLA155P277
0-433-171-209N (3919300) New Bosch Nozzle Cummins DLLA155P283

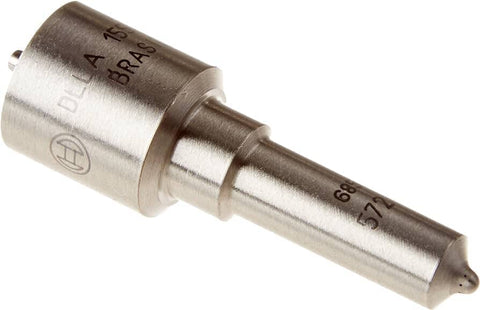

0-433-171-685N (3948523) New Bosch Nozzle Cummins DLLA150P1054
0-433-171-843N (3965721) New Bosch Nozzle Cummins DLLA118P1357
0-433-175-140N (3283566) New Bosch 5.9L 132kW Nozzle Cummins EQB180-20
Diesel Engine Nozzles
The design of a diesel engine nozzle is vital to the performance and emissions efficiency of modern diesel engines. The features of a fuel injector nozzle affect the combustion of a diesel engine and the stability of emissions over the lifespan of the engine.
A fuel injector nozzle is part of a diesel engine that is responsible for fuel injection into the combustion chamber. The nozzle will be located at the end of the fuel injector and delivers precise amounts of fuel in a fine spray. The fuel spray is designed to meet a specific engine's performance and emissions goals.
To create the power necessary to run a diesel engine, fuel is injected into a combustion chamber, then it mixes with compressed air and ignites. The nozzle is designed to be highly precise and deliver fuel in a very fine mist. Over time that nozzle can become clogged with impurities in the fuel or may wear down from usage resulting in reduced engine performance. Regular nozzle maintenance and cleaning will reduce the risk of failure or damage.
A diesel engine nozzle is usually made of metal with a very small hole (or series of holes) to allow fuel to flow through it under high pressure. The shape and size of the holes will determine the fuel spray pattern and affect the combustion process efficiency.
How a Fuel Injector Functions
A fuel injector is a small electrical part of a diesel engine that delivers fuel to the combustion chamber. Diesel fuel passes through the injector but also functions as a lubrication source for an injector's internal components. Fuel is an excellent lubricant, but water and air are not. Having a low fuel tank or getting water into the fuel source can wear down diesel engine parts, including fuel injectors, and they can break down quickly.
The diesel fuel injector is a crucial part of an engine. Injector valves open and close at the same RPM that the engine is running at. The diesel engine nozzle atomizes the exact amount of fuel necessary for peak engine performance, allowing it to combine with air and ignite. This process is where your engine gets its horsepower output.
The Function of a Diesel Engine Fuel Injector Nozzle
Nozzles in a diesel engine take liquid fuel and atomize it so that it burns efficiently. The proper amount of fuel must be mixed with compressed air in a combustion chamber to give the engine the level of horsepower required. A diesel engine nozzle must perform this job repeatedly throughout its lifespan. Nozzles are also subjected to extremely high temperatures and pressure. Manufacturers recommend that nozzles are routinely serviced and maintained to keep them functioning over time.
Diesel Engine Nozzle Maintenance
A nozzle should be checked to ensure that the nozzle opening pressure or NOP is where it should be, that the nozzle is not clogged and that there is no forward or back leakage. Each nozzle and engine model will have a specific required NOP value that can be tested for. Forward leakage is any leakage that happens before the NOP is reached.
Like with many diesel engine parts, prevention is critical for maintaining the lifespan of your fuel injector nozzles. An adequately maintained nozzle can stand the test of time.
A significant component of maintaining the performance of a nozzle is to use clean fuel and filters. Untreated or dirty fuel can clog nozzles with impurities and quickly reduce engine performance. Sulfur should be removed from diesel fuel before use. Sulfur can wear down your nozzle, creating pressure and internal leakage.
Types of Diesel Engine Nozzles
There are two basic types of diesel fuel injection nozzles. These two types include:
1. Pin Nozzles
Primarily used in engines that have indirect fuel injection and a precombustion chamber. The disadvantage here is that they are known to dribble more easily.
2. Hole Nozzles
These are more commonly used in engines with indirect fuel injection. Using a multi-hole over single-hole or pin injector in a diesel engine allows for smaller exit points and finer fuel atomization. This design ensures better air and fuel mixing and delivers higher combustion efficiency.
FAQ about Diesel Fuel Engine Nozzles:
Q: What is a diesel engine nozzle made of?
A: Diesel engine nozzles are typically made from brass or steell, which are resistant to high heat and pressure.
Q: How can I tell if my diesel engine nozzle is faulty?
A: Signs of failing diesel engine nozzles will include a decrease in engine performance, rough idling, increased emissions, black exhaust smoke, and fuel leakage. If you notice any of these issues, have your engine checked by a qualified mechanic. Another easy way to know if your injector leaks is if you notice a prominent gas smell coming from the vehicle. If this is the case, take your vehicle to a trusted mechanic, who may run a nozzle pressure test on the fuel injector. If the test confirms that the injector is leaking, this could mean that the nozzle is stuck in the open position.
Q: What is the difference between a gasoline engine injector and a diesel engine nozzle?
A: The main difference is in the way that fuel is injected into a combustion chamber. A diesel engine uses a high-pressure fuel injection system, and a gasoline engine uses a low-pressure injection system.
Q: What are some common problems you will find with diesel engine nozzles?
A: Some common problems with diesel engine nozzles include physical wear, clogs from dirt or impurities, and fuel leakage. A worn or clogged nozzle can result in inefficient combustion and a reduction in engine performance. A leaking nozzle may cause fuel to spray outside the combustion chamber, increasing the fire risk.
Q: How often should a diesel engine nozzle be replaced?
A: Replacement frequency for diesel engine nozzles will depend on the make and model of the vehicle's engine, the fuel used, as well as the operational conditions. That being said, most manufacturers recommend replacing nozzles every 3 to 5 years or every 100,000 to 150,000 miles. Fuel nozzles should be inspected during routine engine maintenance.
Q: Can I clean my own diesel engine nozzles?
Cleaning a diesel engine nozzle takes specialized equipment to remove debris and buildup. Your mechanic will be able to do this during maintenance checks. If the nozzle is significantly clogged or damaged, you may need to replace it.
Advantages of Using Rebuilt Diesel Engine Parts
Choosing rebuilt or remanufactured diesel engine parts instead of brand-new options can offer monetary and performance advantages. The rebuilt parts sold at Goldfarb use components from trusted OEM suppliers which meet high standards and can be customized to fit your vehicle.
1. Performance Enhancement
Rebuilt and remanufactured parts should perform like new, increasing the horsepower and performance of your engine.
Rebuilt diesel engine parts typically cost much less than new parts while ensuring the same performance.
3. Good for the Environment
Choosing rebuilt and used parts is more sustainable and will reduce the amount of discarded engine part waste.
Goldfarb has a warehouse of rebuilt engine parts, making it easy to get your vehicle back in action quickly.
5. Quality Assurance
All rebuilt and remanufactured parts sold at Goldfarb undergo thorough testing and quality control checks.
Diesel Engine Nozzles for Sale
Having been in the industry for the past 20 years, Goldfarb & Associates supplies customers worldwide with high-quality diesel engine parts. Goldfarb has the expertise to help identify and find your vehicle's right diesel engine nozzle. Whether you work with passenger cars, commercial vehicles, agricultural vehicles, marine vehicles, or anything in between, we have or can find the nozzles you need.
We stand by our warehouse inventory of new, used, and remanufactured products, as well as our vast network of diesel engine parts suppliers and manufacturers. Any part sold through our Rockville, Maryland headquarters is thoroughly inspected.
Goldfarb understands the complexity of diesel engine issues and can help to diagnose and replace the parts necessary to get your vehicle running again. Our nozzles and other engine parts are carefully packaged, with free shipping anywhere in the United States. Explore our range of inventory online, or come to the Rockville, MD warehouse to find what you need in person.
