What is an ECM: Complete Guide

Posted by Alex Smith on

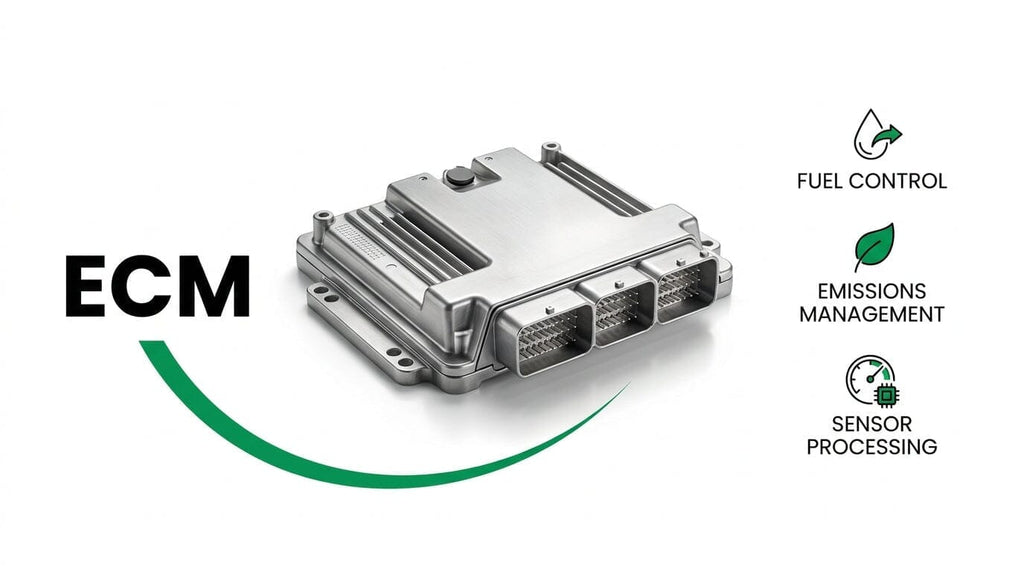

An ECM (engine control module) is the onboard computer that regulates critical diesel engine parameters, including fuel injection timing, air/fuel ratios, emissions system operation, and cooling system performance. It continuously collects data from sensors across the engine and converts those inputs into real-time commands that keep every system operating within optimal thresholds.

This guide covers ECM functions and internal hardware, the step-by-step operating cycle, failure symptoms and root causes, diagnostics and repair decisions, and sourcing the right replacement unit.

The ECM manages fuel injection, emissions aftertreatment, and turbo boost pressure by referencing stored calibration maps and adjusting outputs down to the microsecond. Internally, it relies on a 32-bit microprocessor, multiple memory types, input/output circuits, a regulated power supply, and J1939 communication interfaces that coordinate with other vehicle modules.

Failing ECMs produce recognizable patterns: erratic engine behavior, simultaneous unrelated fault codes, starting difficulties, degraded fuel economy, and migrating cylinder misfires. Moisture intrusion, electrical shorts, vibration fatigue, corrosion, and voltage spikes are the primary causes behind these failures.

Diagnosis requires manufacturer-specific scan tools, digital multimeters, and OEM software such as Cummins INSITE or Cat ET to access data beyond generic OBD-II capabilities. Once confirmed, the choice between repair, new, used, or remanufactured replacement depends on failure severity, cost, and downtime tolerance.

ECM compatibility varies significantly across on-highway trucks, construction equipment, agricultural machinery, and marine applications, each carrying distinct calibrations, ruggedization standards, and emissions requirements. Matching the exact part number to your engine serial number prevents costly mismatches and ensures proper post-installation programming.

What Does an ECM Do in a Diesel Engine?

An ECM manages every critical function in a diesel engine, from processing sensor inputs to controlling fuel delivery and emissions. The following sections cover how the ECM handles sensor data, fuel injection timing, emissions systems, and turbo boost pressure.

Four core ECM functions including fuel injection timing, emissions control, boost regulation, and sensor data processing.

How Does an ECM Process Sensor Data?

An ECM processes sensor data by continuously receiving electrical signals from sensors distributed across the engine and converting those signals into actionable commands in real time. Sensors monitoring air flow, fuel pressure, temperatures, crank position, and exhaust conditions feed voltage and frequency data to the ECM's microprocessor. The module then compares these inputs against stored calibration maps to calculate optimal fueling and timing adjustments.

According to Copperhill Technologies, J1939 is a higher-layer protocol based on Controller Area Network (CAN) that provides serial data communications between microprocessor systems in heavy-duty vehicles. This standardized communication bus allows the ECM to exchange data with other electronic control units across the vehicle, ensuring coordinated system-wide responses.

How Does an ECM Control Fuel Injection Timing?

An ECM controls fuel injection timing by calculating the precise moment each injector fires based on real-time engine speed, load, and temperature data. The module references pre-programmed fuel maps stored in its memory, adjusting injection duration and advance angle to optimize combustion efficiency under varying operating conditions.

As defined by ScienceDirect, an ECM is an electronic system that regulates critical engine parameters such as air/fuel ratios, injection timing, and cooling system performance. By modulating injector pulse width down to the microsecond, the ECM balances power output against fuel consumption. For operators managing fleet costs, this level of precision directly translates to measurable fuel savings over thousands of operating hours.

How Does an ECM Manage Emissions Systems?

An ECM manages emissions systems by monitoring exhaust gas composition and controlling aftertreatment components to meet regulatory standards. The module oversees the diesel particulate filter (DPF) regeneration cycle, selective catalytic reduction (SCR) dosing, and exhaust gas recirculation (EGR) valve positioning.

Key emissions functions the ECM controls include:

  • Triggering DPF regeneration when soot accumulation reaches programmed thresholds.

  • Regulating DEF injection rates to maintain proper NOx conversion in the SCR catalyst.

  • Adjusting EGR valve opening to recirculate measured amounts of exhaust gas into the intake.

  • Logging emissions-related diagnostic trouble codes when sensor readings fall outside acceptable ranges.

Without precise ECM calibration, diesel engines cannot consistently meet EPA Tier 4 or CARB emissions requirements.

How Does an ECM Regulate Turbo Boost Pressure?

An ECM regulates turbo boost pressure by controlling the turbocharger's wastegate or variable geometry turbine (VGT) vanes based on real-time intake manifold and exhaust pressure readings. The module compares actual boost levels against target values stored in its calibration tables, then adjusts vane position or wastegate duty cycle to match demand.

During acceleration, the ECM commands higher boost to increase air density in the cylinders, supporting complete combustion at elevated fuel delivery rates. Under light load, it reduces boost to prevent over-pressurization and excessive exhaust temperatures. This closed-loop control protects engine components from damage while maximizing throttle response. Properly calibrated boost management is one of the most overlooked factors in diesel longevity and performance consistency.

With these core functions understood, examining the ECM's internal hardware components reveals how the module physically executes these complex tasks.

What Are the Main Components of an ECM?

The main components of an ECM are the microprocessor, memory modules, input and output circuits, power supply unit, and communication interfaces. Each component serves a distinct role in processing engine data and executing control commands.

ECM internal architecture diagram showing microprocessor, memory modules, power supply, input output circuits, and J1939 communication interfaces.

Microprocessor

The microprocessor is the central processing unit inside an ECM. It executes real-time calculations for fuel injection timing, emissions control, and sensor data interpretation. Modern diesel ECMs use 32-bit architectures to handle the computational demands of simultaneous engine management tasks. According to Infineon Technologies, their 32-bit TriCore microcontrollers combine RISC, MCU, and DSP processor cores into a unified architecture. This integrated design allows a single chip to manage digital signal processing, analog-to-digital conversion, and logic operations without relying on multiple discrete processors. For heavy-duty diesel applications, this level of integration is what separates a responsive ECM from one prone to processing bottlenecks.

Memory Modules

Memory modules store the software, calibration maps, and operational data the ECM needs to function. There are three primary types:

  • ROM (Read-Only Memory) holds the base operating software and factory calibration parameters.

  • RAM (Random Access Memory) stores temporary sensor readings and real-time calculations during engine operation.

  • EEPROM (Electrically Erasable Programmable ROM) retains learned adaptations, fault codes, and reprogramming data when the engine is off.

Without properly functioning memory modules, an ECM cannot retain critical fuel maps or store diagnostic trouble codes for later retrieval.

Input and Output Circuits

Input and output circuits serve as the ECM's interface with the physical engine. Input circuits receive analog and digital signals from sensors measuring crankshaft position, coolant temperature, boost pressure, and exhaust gas composition. These raw signals are conditioned and converted into data the microprocessor can interpret. According to UE Systems documentation, voltage output ranges from 0 to 10 volts DC full scale, where a 2.5-volt change corresponds to a 10 dB change in input signal. Output circuits then send commands to actuators such as fuel injectors, EGR valves, and turbo wastegates. Proper circuit function is essential; even minor signal degradation can trigger incorrect fueling or emissions faults.

Power Supply Unit

The power supply unit regulates and distributes stable voltage to every ECM component. It converts the vehicle's battery voltage into the precise, filtered power levels the microprocessor, memory, and circuits require. Voltage regulators within the unit protect sensitive electronics from fluctuations, spikes, and electrical noise common in diesel engine environments. A failing power supply can cause intermittent ECM behavior that mimics sensor faults or software errors, making it one of the more deceptive failure points to diagnose.

Communication Interfaces

Communication interfaces enable the ECM to exchange data with other vehicle control modules and external diagnostic tools. The primary protocol in heavy-duty diesel applications is SAE J1939, a higher-layer protocol built on Controller Area Network (CAN) that provides serial data communications between electronic control units. These interfaces support real-time data sharing with the transmission control module, anti-lock braking system, and instrument cluster. They also provide the diagnostic link through which technicians read fault codes and update ECM software. Reliable communication interfaces are critical for integrated vehicle management across modern diesel platforms.

How Does an ECM Work Step by Step?

An ECM works step by step through a continuous cycle of sensing, processing, deciding, and commanding. This loop repeats many times per second, keeping the diesel engine operating within optimal parameters. The following sequence breaks down each stage of that cycle.

  1. Sensors collect raw data. Temperature probes, pressure transducers, crankshaft position sensors, and airflow meters generate electrical signals reflecting real-time engine conditions.

  2. Signals travel to the ECM. Sensor outputs, typically voltage or resistance changes, reach the ECM's input circuits through the engine wiring harness.

  3. The microprocessor converts signals. Analog-to-digital converters inside the ECM translate raw voltage into numerical values the processor can interpret.

  4. Software compares data against calibration maps. The ECM's stored fuel maps, timing tables, and emissions parameters serve as reference points for every operating condition.

  5. The processor calculates corrective commands. Based on deviations between actual sensor readings and target values, the ECM determines adjustments to fuel injection timing, injection duration, boost pressure, and EGR valve position.

  6. Output drivers execute commands. The ECM sends precise electrical signals to actuators, including fuel injectors, turbo wastegate solenoids, and cooling fans.

  7. The cycle repeats and self-monitors. Each loop feeds updated sensor data back into the processor, while the ECM logs diagnostic trouble codes whenever readings fall outside acceptable thresholds.

According to Heavy Duty Journal, mastering diesel engine diagnostics relies on a systematic seven-step troubleshooting workflow, which mirrors this same sense-process-act architecture. For fleet operators, understanding this cycle is valuable because it reveals exactly where breakdowns in communication between sensors and actuators occur, making fault isolation far more efficient.

Recognizing how each step connects helps explain why specific symptoms point to specific failures, a topic the next sections address in detail.

What Is the Difference Between an ECM, ECU, and PCM?

The difference between an ECM, ECU, and PCM lies in scope of control. Each acronym refers to an onboard computer, but the systems they manage differ. The sections below clarify how these three terms relate, overlap, and apply to diesel engines.

An ECM (engine control module) manages engine-specific functions such as fuel injection timing, air/fuel ratios, and cooling system performance. According to ECU Testing, a PCM controls both the engine and transmission system, whereas an ECU or ECM controls only one of these systems. The ECU (electronic control unit) is the broadest term; it describes any embedded microprocessor system on a vehicle, including body controllers, anti-lock brake modules, and transmission controllers.

In practice, the terms overlap frequently. Many manufacturers and technicians use "ECU" and "ECM" interchangeably when discussing the engine computer. The PCM, by contrast, combines engine management and transmission logic into a single housing, which is common in light-duty gasoline platforms. Heavy-duty diesel trucks rarely use a standalone PCM. Instead, they rely on a dedicated ECM for the engine and a separate TCM (transmission control module) for the gearbox, communicating over protocols like SAE J1939.

For fleet operators and diesel technicians, recognizing this distinction matters when ordering replacement parts or running diagnostics. Requesting an "ECU" without specifying which module can lead to incorrect part shipments, while confusing an ECM with a PCM may result in mismatched programming. Understanding which controller your engine requires prevents costly compatibility errors and downtime.

What Are the Signs of a Failing ECM?

The signs of a failing ECM include erratic engine behavior, dashboard warning lights, starting difficulties, poor fuel economy, and random cylinder misfiring. Each symptom reflects a specific breakdown in the ECM's ability to process sensor data and regulate engine functions.

Failing ECM warning signs including erratic engine behavior, dashboard lights, starting problems, poor fuel economy, and misfires.

How Does Erratic Engine Behavior Indicate ECM Failure?

Erratic engine behavior indicates ECM failure when the module sends incorrect or inconsistent commands to the engine's actuators. The ECM continuously receives data from sensors monitoring air flow, fuel pressure, temperatures, crank position, and exhaust conditions to adjust fueling and timing in real time. When internal circuitry degrades, those calculations become unreliable.

Symptoms of erratic behavior include:

  • Sudden surging or loss of power under steady throttle.

  • Unexplained RPM fluctuations at idle.

  • Intermittent stalling that resolves without apparent cause.

  • Hesitation or rough transitions during acceleration.

Because the ECM governs nearly every engine output, even minor processing errors can cascade into unpredictable drivability issues that standard sensor replacements will not resolve.

What ECM Warning Lights Appear on the Dashboard?

ECM warning lights that appear on the dashboard typically include the Check Engine Light (MIL), the Engine Power Derate indicator, and transmission or ABS warnings that activate without a corresponding mechanical fault. According to Goldfarb & Associates, multiple sensor codes appearing simultaneously, especially when unrelated sensors trigger alerts at the same time, are one of the strongest indicators of ECM trouble.

A single illuminated warning may point to an individual sensor. However, when several unrelated fault codes populate at once, the common thread is often the module itself misinterpreting or failing to process incoming signals. Clearing codes that immediately return after a key cycle further supports ECM involvement.

How Do Starting Problems Relate to ECM Malfunction?

Starting problems relate to ECM malfunction because the module controls fuel injection timing, glow plug activation, and cranking fuel delivery sequences required for ignition. If the ECM cannot execute these startup commands accurately, the engine may crank without firing, require extended cranking, or start and immediately stall.

In diesel engines, the ECM regulates critical parameters such as air/fuel ratios and injection timing during the start sequence. A compromised module may fail to energize injectors at the correct crank angle, starving the combustion chamber of fuel. When a starter motor and battery test healthy but starting remains inconsistent, the ECM should be evaluated.

What Role Does Poor Fuel Economy Play in Diagnosing ECM Issues?

Poor fuel economy plays a significant role in diagnosing ECM issues because the module directly controls injector pulse width, injection timing, and boost pressure to optimize combustion efficiency. When the ECM miscalculates these parameters, the engine burns more fuel than necessary.

Common fuel-economy-related ECM symptoms include:

  • Injectors staying open too long per cycle, delivering excess fuel.

  • Incorrect timing advancing or retarding beyond optimal ranges.

  • Failure to properly regulate turbo boost, reducing combustion efficiency.

A gradual, unexplained increase in fuel consumption, particularly when no other mechanical fault is found, often points back to degraded ECM logic. This is especially telling when fuel economy declines across all operating conditions rather than just one load range.

How Does Random Cylinder Misfiring Point to ECM Trouble?

Random cylinder misfiring points to ECM trouble when misfires shift between cylinders rather than remaining isolated to one. The ECM fires each injector at a precise crank angle; if its internal timing reference or output driver circuits degrade, misfires appear across multiple cylinders without a consistent pattern.

ECM/TCU systems are stressed by electrical faults, software issues, or sensor wear, any of which can corrupt the firing sequence. A single-cylinder misfire usually implicates the injector or wiring for that cylinder. When misfires migrate randomly, the shared control element is the ECM itself. Confirming this requires diagnostic software capable of monitoring individual cylinder contribution data in real time.

With these failure symptoms identified, understanding the root causes behind ECM degradation helps prevent repeated failures.

What Causes an ECM to Fail?

An ECM fails due to environmental and electrical stresses, including moisture intrusion, short circuits, vibration, corrosion, and voltage spikes. Each of these causes damages internal circuitry in distinct ways.

Five common ECM failure causes including moisture damage, electrical shorts, vibration, corrosion, and voltage spikes.

How Does Water or Moisture Damage an ECM?

Water or moisture damages an ECM by infiltrating sealed connectors and corroding internal circuit boards. Even small amounts of condensation can create conductive paths between traces, causing short circuits that corrupt sensor signals or destroy microprocessor components entirely. According to GoECM, moisture or water damage is a common factor of failure in Cummins ECM modules. Seal degradation around wiring harness connectors is often the entry point, particularly in engines exposed to pressure washing, heavy rain, or humid operating environments. Addressing compromised seals early is one of the most effective ways to prevent this type of failure.

How Do Electrical Short Circuits Cause ECM Failure?

Electrical short circuits cause ECM failure by sending unregulated current through sensitive internal components. Damaged wiring insulation, chafed harnesses, or faulty ground connections can direct excessive amperage into the module's input and output circuits. According to Diesel ECM, under-the-hood temperatures are a main cause of component failure, as heat degrades wire insulation and accelerates short circuit risk. Once a short reaches the ECM's microprocessor or memory modules, the damage is often irreversible. Routine inspection of wiring harnesses, particularly near heat sources and sharp edges, significantly reduces short circuit exposure.

How Does Excessive Vibration Affect ECM Longevity?

Excessive vibration affects ECM longevity by loosening solder joints, cracking circuit board traces, and degrading connector pins over time. Diesel engines produce continuous mechanical vibration that transfers directly to mounted electronic components. A study published through JSTOR found that transmission of vibration from the engine to the ECM case was significantly reduced by using elastomer isolation mounts between the case and the engine. Without proper mounting, repeated micro-movements fatigue internal connections until intermittent faults become permanent failures. For fleet operators, verifying that ECM mounting hardware and isolation grommets remain intact during scheduled maintenance is a simple but often overlooked preventive measure.

How Does Corrosion Contribute to ECM Breakdown?

Corrosion contributes to ECM breakdown by degrading electrical contact points and increasing resistance across critical circuits. Salt exposure, acidic battery fumes, and environmental moisture all accelerate oxidation on connector pins and circuit board traces. As corrosion builds, signal integrity deteriorates, producing intermittent faults that progressively worsen. Corroded ground connections are particularly problematic because they affect multiple sensor readings simultaneously, often mimicking internal ECM failures during diagnostics. Applying dielectric grease to ECM connectors during installation helps create a protective barrier against oxidation.

How Do Voltage Spikes or Jump-Start Errors Damage an ECM?

Voltage spikes or jump-start errors damage an ECM by exceeding the module's designed voltage tolerance, which destroys sensitive semiconductor components instantly. Incorrect jump-start polarity, loose battery connections, and welding on the vehicle frame without disconnecting the ECM are common causes. Even brief voltage surges can burn out input circuits, corrupt stored calibration data, or destroy the microprocessor entirely. Disconnecting the ECM before performing any jump-start or electrical welding procedure is the single most effective precaution. Understanding these failure causes helps inform the diagnostic process covered next.

How Do You Diagnose ECM Problems?

You diagnose ECM problems by reading diagnostic trouble codes, using the right scan tools, and selecting software matched to your engine platform. The following subsections cover each diagnostic step.

What Diagnostic Trouble Codes Indicate ECM Issues?

Diagnostic trouble codes (DTCs) that indicate ECM issues include simultaneous, unrelated sensor fault codes and persistent communication errors on the data bus. A single sensor code usually points to that specific sensor or its wiring. When multiple unrelated sensors trigger alerts at the same time, however, the pattern shifts toward the module itself.

Multiple sensor codes appearing simultaneously are one of the strongest indicators of ECM trouble. For example, if boost pressure, coolant temperature, and crank position codes all appear together despite healthy wiring, the ECM's internal processing or output drivers are likely at fault. Repeated U-codes, which flag lost communication between modules, also warrant ECM inspection. Clearing codes and monitoring for immediate return helps distinguish a true module failure from an intermittent wiring issue.

What Tools Are Needed to Test an ECM?

The tools needed to test an ECM include a diagnostic scan tool, a digital multimeter, and an oscilloscope for advanced signal analysis. At minimum, a scan tool capable of reading manufacturer-specific DTCs lets you pull fault codes and monitor live sensor data streams.

Essential ECM diagnostic tools include:

  • A diagnostic scan tool or laptop with compatible software to read and clear DTCs.

  • A digital multimeter to verify power supply voltage, ground integrity, and sensor reference voltages at ECM connector pins.

  • An oscilloscope to examine waveform quality on injector driver circuits and CAN bus communication lines.

  • A breakout box or harness adapter that allows pin-by-pin testing without back-probing sealed connectors.

For most fleet shops, combining a quality scan tool with a multimeter covers the majority of ECM diagnostic scenarios.

When Should You Use OBD-II vs OEM Diagnostic Software?

You should use OBD-II for basic code reads and generic fault monitoring, and OEM diagnostic software when you need full ECM access on a specific diesel platform. OBD-II scanners read standardized emissions-related codes but cannot access proprietary manufacturer parameters.

OEM software, such as Cummins INSITE, Cat ET, or Detroit Diesel DDDL, unlocks deeper functionality:

  • Reading and clearing all manufacturer-specific fault codes, not just emissions DTCs.

  • Viewing advanced live data parameters like injector trim values, turbo actuator position, and aftertreatment status.

  • Performing ECM reprogramming, injector code calibration, and forced DPF regeneration.

  • Running guided diagnostic routines that isolate ECM hardware faults from sensor or wiring problems.

For heavy-duty diesel engines, OEM tools are practically essential. Generic OBD-II provides a starting point, but proper ECM diagnosis almost always requires manufacturer-level software to reach the data that matters.

With the root cause identified, the next step is deciding between ECM repair and replacement.

Can a Diesel ECM Be Repaired or Does It Need Replacement?

A diesel ECM can often be repaired, depending on the type and extent of damage. The decision between repair and replacement hinges on failure mode, cost, and turnaround requirements.

ECM repair is viable when the issue involves specific, isolatable faults such as:

  • Damaged solder joints or cracked circuit traces caused by thermal cycling and vibration

  • Failed capacitors or resistors on the circuit board

  • Corroded connector pins that can be cleaned or resoldered

  • Minor water intrusion that has not destroyed the microprocessor

Replacement becomes necessary when the microprocessor itself has failed, when multiple internal circuits are compromised, or when physical damage is too extensive for board-level work. According to The ECU Pro, ECM replacement costs range between $1,000 and $2,500 on average, while truck ECUs can reach $2,000 to $5,000. Repair typically costs significantly less, making it the preferred first step when the failure mode allows it.

According to ResearchGate research on automotive ECUs, digital control modules exhibit predictable degradation patterns when exposed to heat cycling, moisture, and voltage fluctuations. This predictability means experienced technicians can often pinpoint repairable components before recommending full replacement.

For most fleet operators, starting with a professional diagnosis is the smartest approach. A qualified technician can determine whether the root cause is a repairable circuit fault or a deeper processor failure, saving thousands in unnecessary replacement costs. Understanding the options between new, used, and remanufactured units adds another layer to this decision.

What Is the Difference Between New, Used, and Remanufactured ECMs?

The difference between new, used, and remanufactured ECMs comes down to cost, reliability, and remaining service life. Each option suits different budgets and operational needs.

Comparison chart showing new, remanufactured, and used ECM replacement options by cost, reliability, and warranty.

What Are the Benefits of a New ECM?

The benefits of a new ECM include factory-original components, full manufacturer warranty coverage, and guaranteed compatibility with your engine's specifications. New ECMs arrive with the latest firmware revisions, which can improve fuel map accuracy and emissions compliance. According to The ECU Pro, ECM replacement costs can range between $1,000 and $2,500 for standard applications, while truck ECUs can reach $2,000 to $5,000. That premium buys zero wear on internal circuits, fresh solder joints, and microprocessors free from heat-cycle degradation. For fleets where unplanned downtime carries steep penalties, the upfront investment in a new unit often pays for itself through longer service intervals.

What Should You Know Before Buying a Used ECM?

You should know that a used ECM carries inherent risks tied to its unknown operational history. Prior exposure to moisture, voltage spikes, or excessive vibration may have caused invisible micro-damage to internal circuits. Key considerations before purchasing include:

  • Verify the exact part number matches your engine serial number and configuration.

  • Request documentation of the donor vehicle's mileage and operating conditions.

  • Confirm the unit has been bench-tested for proper sensor input and output response.

  • Check for visible corrosion on connector pins and housing seals.

Used ECMs cost significantly less upfront, but without thorough inspection, hidden degradation can lead to repeat failures. A trustworthy supplier that hand-inspects every unit reduces this risk considerably.

What Makes a Remanufactured ECM a Reliable Option?

A remanufactured ECM is a reliable option because it undergoes complete disassembly, component-level testing, and replacement of all worn or degraded parts before reassembly to OEM specifications. This process addresses the predictable degradation patterns that digital control modules exhibit when exposed to heat cycling, moisture, and voltage fluctuations, according to ResearchGate research on automotive ECUs. Remanufactured units typically include updated firmware and fresh capacitors, resistors, and driver circuits. They deliver near-new performance at a fraction of new-unit pricing, making them a practical middle ground for owner-operators balancing reliability against budget constraints.

Understanding these three sourcing options helps you match the right ECM type to your engine's compatibility requirements.

How Do You Choose the Right ECM for Your Diesel Engine?

You choose the right ECM for your diesel engine by matching the engine make, model, and exact part number to a compatible module. The sections below cover compatibility factors, part number importance, and post-installation programming.

How Does Engine Make and Model Affect ECM Compatibility?

Engine make and model affect ECM compatibility because each manufacturer designs its control modules for specific engine configurations. A Caterpillar ECM will not function in a Cummins engine, and even within the same brand, variations exist across model years and horsepower ratings.

For example, the Caterpillar ECM part number 240-5307 has exact compatibility that depends on the engine's configuration, with related variants like 240-5308 or 240-5401 serving different setups. Verifying your engine serial number against the manufacturer's ECM compatibility chart is the most reliable way to avoid a mismatch. Even a single digit difference in configuration codes can mean incompatible software calibrations or connector pinouts.

Why Does the ECM Part Number Matter?

The ECM part number matters because it identifies the exact hardware revision, software calibration, and connector configuration designed for a specific engine. Ordering by part number, rather than by engine model alone, prevents costly mismatches.

According to Highway and Heavy Parts, all Caterpillar engine serial numbers follow a similar format, beginning with a three-character prefix followed by seven digits. Cross-referencing this serial number with the OEM part catalog ensures the replacement ECM matches the original unit's specifications. For fleet operators managing multiple engine platforms, maintaining a log of each unit's ECM part number simplifies future sourcing and reduces diagnostic guesswork during replacements.

What Role Does ECM Programming Play After Installation?

ECM programming plays a critical role after installation because a new or remanufactured module typically ships with base-level software that must be configured to match the specific engine's parameters. Without proper programming, the engine may run in a derated or limp mode.

Post-installation programming calibrates fuel injection maps, turbo boost targets, idle speed settings, and emissions system thresholds to the engine's exact specifications. OEM diagnostic software, such as Caterpillar's Electronic Technician (ET) or Cummins INSITE, is required for this process. Skipping or rushing the programming step is one of the most common mistakes technicians make, often resulting in poor performance that gets misdiagnosed as a defective module.

Understanding ECM selection criteria prepares you to evaluate sourcing options from trusted suppliers.

How Do ECMs Differ Across Diesel Applications?

ECMs differ across diesel applications in hardware ruggedization, software calibration, and regulatory compliance tailored to each operating environment. The subsections below cover on-highway trucks, construction equipment, agricultural machinery, and marine diesel systems.

How Are ECMs Used in On-Highway Truck Engines?

ECMs are used in on-highway truck engines to manage fuel injection, emissions aftertreatment, and transmission integration under sustained high-speed, high-mileage conditions. These modules communicate over SAE J1939 networks, coordinating with other vehicle systems in real time.

Manufacturer-specific compatibility is a defining characteristic. According to Diesel ECM Tech, Detroit Diesel ECMs are compatible exclusively with Detroit Diesel engines, such as the Series 50, Series 60, and newer DD Series. Cummins and Caterpillar ECMs follow similarly strict pairing requirements. On-highway ECMs also carry EPA on-road emissions calibrations, including DPF regeneration and SCR dosing logic, that off-road units do not require. For fleet operators, this means sourcing the exact ECM matched to both engine serial number and federal emissions tier.

How Are ECMs Different in Construction Equipment?

ECMs in construction equipment differ primarily in their ruggedization and load-responsive calibration. Excavators, dozers, and wheel loaders subject ECMs to extreme vibration, dust infiltration, and wide temperature swings that on-highway modules rarely encounter.

Key differences include:

  • Torque mapping prioritizes low-RPM pulling power over highway fuel economy.

  • Enclosure ratings feature enhanced sealing against particulate ingress and moisture common on job sites.

  • Idle management algorithms reduce fuel consumption during frequent start-stop duty cycles.

  • Tier 4 Final compliance requires emissions logic calibrated for nonroad standards, which differ from on-road EPA requirements.

Because construction ECMs often lack the transmission integration found in truck units, they focus computational resources on hydraulic system coordination instead. This specialization makes cross-application ECM swaps impractical without reprogramming.

How Do Agricultural Diesel ECMs Differ?

Agricultural diesel ECMs differ by incorporating variable-load calibrations and precision farming interfaces absent from other applications. Tractors, combines, and sprayers operate across extreme seasonal workload swings, from light transport to full-throttle harvest operations.

These ECMs manage:

  • Power take-off (PTO) governor logic that maintains constant RPM under fluctuating implement loads.

  • ISOBUS communication protocols enabling data exchange with GPS guidance, yield monitors, and variable-rate controllers.

  • Extended idle and low-load strategies that prevent DPF clogging during prolonged field operations.

Nonroad emissions tiers govern agricultural ECM calibrations differently than on-highway standards, often with longer DEF refill intervals matched to fuel tank capacity. For operators replacing agricultural ECMs, verifying both the emissions tier and implement communication compatibility is essential.

What Makes Marine Diesel ECMs Unique?

Marine diesel ECMs are unique because they must withstand saltwater corrosion, constant humidity, and cooling system demands that land-based applications never face. These modules govern propulsion engines where failure creates immediate safety risks, not just operational downtime.

Distinguishing features include:

  • Corrosion-resistant housings with conformal-coated circuit boards rated for high-humidity, salt-air environments.

  • Trolling and variable-speed calibrations optimized for sustained low-RPM operation during maneuvering.

  • Cooling system integration that monitors raw-water or keel-cooled heat exchangers rather than conventional radiators.

  • Coast Guard and IMO compliance logic enforcing maritime-specific emissions and safety standards.

Marine ECMs also incorporate alarm and shutdown protocols for overheating or low oil pressure that trigger faster than their on-road counterparts. Understanding these application-specific requirements is critical when sourcing replacement units, since a truck ECM cannot safely substitute for a marine-rated module.

How Should You Source a Diesel ECM from a Trusted Supplier?

You should source a diesel ECM from a trusted supplier by verifying quality inspection processes, confirming compatibility with your engine's exact part number, and choosing a company with extensive inventory across major diesel manufacturers.

Can Goldfarb Help You Find the Right Diesel ECM?

Yes, Goldfarb & Associates can help you find the right diesel ECM. Established in 1997, Goldfarb & Associates is America's leading diesel parts supplier, offering new, used, and remanufactured Engine Control Modules across a wide range of diesel applications. Goldfarb & Associates stocks over 20,000 unique part numbers covering manufacturers such as Cummins, Caterpillar, and Detroit Diesel. Every part undergoes a thorough hand inspection and must pass a full quality checklist before shipping. Goldfarb & Associates guarantees that remanufactured and new ECMs work upon installation, with same-day shipping available for orders placed before 3:30 PM EST. For help identifying the correct ECM for your engine, contact Goldfarb & Associates at 301-770-4514.

What Are the Key Takeaways About Diesel ECMs?

The key takeaways about diesel ECMs center on understanding their function, maintaining their health, and sourcing replacements wisely. A diesel ECM regulates critical engine parameters, including fuel injection timing, air-fuel ratios, and emissions system operation, in real time. Failure causes such as moisture damage, voltage spikes, and excessive vibration can be mitigated through preventive measures. When replacement is necessary, matching the exact part number and engine serial number ensures compatibility. Choosing between new, used, and remanufactured units depends on budget and reliability requirements. Working with a knowledgeable supplier simplifies the process, from diagnosis through proper ECM programming after installation.

0 comments

Leave a comment

Please note, comments must be approved before they are published

Specials

Stay up to date with our best deals by signing up for our email specials.

Weekly Specials
Join Our Newsletter
Save 10% on your next order

Submit Withdrawal Request

Please fill out the following form to submit your withdrawal request.
