Hand inspection is a structured, manual evaluation process where trained inspectors assess every critical turbocharger component through visual examination, tactile feedback, and precise measurement before a unit is approved for resale. At Goldfarb & Associates, every incoming turbocharger passes through this process regardless of its source or apparent condition.
This guide covers why manual evaluation is necessary for used turbochargers, the step-by-step inspection procedure, common defects and what they reveal, diesel-specific inspection demands, and how rigorous quality screening shapes long-term reliability.
Used turbochargers arrive with unknown service histories, carrying hidden problems like hairline housing cracks, subtle shaft play, and early oil contamination that automated systems and visual-only checks routinely miss. Manual evaluation lets inspectors feel bearing drag, detect abnormal resistance, and catch micro-geometry defects that fixed-parameter sensors overlook.
The inspection sequence moves through housing integrity, compressor and turbine wheel condition, shaft play measurement against documented tolerances, bearing and seal assessment, and wastegate or VGT mechanism function. Each step isolates a specific failure point using a combination of finger pressure, dial indicators, and magnification.
Defects like scored bearings, blade contact damage, excessive endplay, and heat discoloration each tell a distinct story about operating history; units that fail any checkpoint are pulled from inventory entirely. Turbochargers that pass earn approval for resale with verified tolerances, clean oil passages, and structurally sound housings.
Diesel turbochargers face even closer scrutiny because higher soot loads, heavier thermal cycling, and elevated particulate exposure accelerate wear patterns that demand experienced tactile judgment. Remanufactured diesel units must also meet certifications like ISO 9001:2015 and IATF 16949, making thorough hand inspection the final quality gate before entering the regulated supply chain.
Why Does Every Incoming Turbocharger Need Hand Inspection?
Every incoming turbocharger needs hand inspection because hidden defects in housings, wheels, bearings, and shafts can compromise reliability after installation. The following sections cover undetectable problems, how manual evaluation compares to automated testing, and why visual and tactile assessment matters for used units.
What Problems Can Go Undetected Without Manual Evaluation?
The problems that can go undetected without manual evaluation include:
-
Hairline cracks in turbine and compressor housings that are invisible in photographs or standard bench tests.
-
Subtle shaft play beyond allowable tolerances that only becomes apparent when physically manipulated by hand.
-
Early-stage oil contamination deposits inside bearing journals, where faint scoring or coking signals deeper lubrication failure.
-
Foreign object damage on compressor wheel leading edges, where micro-nicks may seem cosmetic but indicate structural compromise.
-
Wastegate actuator stiffness or diaphragm weakness that responds inconsistently under finger pressure but passes static electrical tests.
These defects share a common trait: they involve texture, resistance, or micro-geometry that sensors and cameras frequently miss. For used turbochargers with unknown service histories, skipping hands-on evaluation means gambling on components whose hidden wear patterns only surface after installation.
How Does Hand Inspection Differ From Automated Testing?
Hand inspection differs from automated testing in scope, sensitivity, and context. Automated systems excel at repetitive, high-volume dimensional checks. According to a report from Elementary ML, automated inspection systems reduce warranty costs by 20% and overall defects by 35% in automotive manufacturing environments. However, those systems are calibrated for new production runs with known baselines.
Used turbochargers arrive in unpredictable condition. Manual evaluation allows an inspector to feel shaft resistance, detect abnormal play through finger pressure, and assess housing integrity by touch. Automated camera systems may flag surface blemishes, yet they often miss the tactile cues, such as bearing drag or seal stiffness, that indicate internal wear. For incoming cores with unknown histories, the adaptability of a trained inspector fills gaps that fixed-parameter automated testing cannot address.
Why Is Visual and Tactile Assessment Critical for Used Turbochargers?
Visual and tactile assessment is critical for used turbochargers because each unit carries a unique wear signature shaped by its operating history. According to ScienceDirect, common terms for manual turbocharger evaluation in technical literature include tactile assessment and visual inspection, both used to identify surface flaws and mechanical play.
A trained inspector rotates the compressor wheel to feel for bearing roughness, applies lateral force to gauge radial play, and examines blade tips under magnification for erosion patterns. These combined sensory inputs build a complete picture that no single measurement tool replicates. For a supplier handling thousands of incoming cores, this hands-on approach is the most reliable filter separating rebuildable turbochargers from units destined for scrap.
Understanding why hand inspection matters sets the stage for examining what the process looks like in practice.
What Does the Turbocharger Hand Inspection Process Look Like Step by Step?

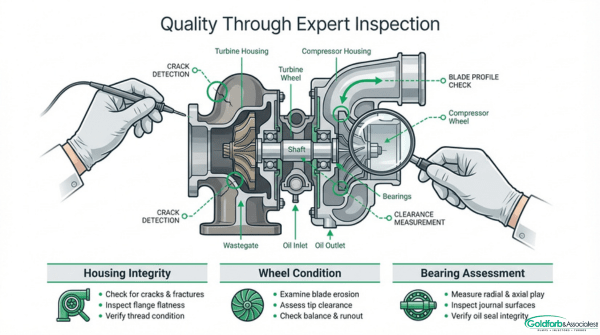

The turbocharger hand inspection process follows a structured sequence covering the housing, compressor wheel, turbine wheel, shaft play, bearings, seals, and boost control mechanisms. Each step isolates a specific failure point.
How Is the Turbocharger Housing Examined for Cracks and Damage?
The turbocharger housing is examined for cracks and damage through a combination of cleaning, visual scanning, and tactile evaluation of all exterior and interior surfaces. Inspectors first clean the compressor wheel and housing to check for evidence of foreign object damage before measuring shaft play with a dial indicator, according to published turbocharger inspection procedures.
Primary components subject to failure analysis include:
-
Turbine housing and wheel
-
Compressor housing and wheel
-
Center housing rotating assembly (CHRA)
-
Bearings, thrust parts, and seals
Stress fractures along flange mounting points and exhaust inlet areas receive particular attention, since thermal cycling concentrates damage in these zones. Even hairline cracks that seem cosmetic can propagate under boost pressure, making housing integrity a pass-or-fail checkpoint.
How Is Compressor Wheel Condition Evaluated by Hand?
Compressor wheel condition is evaluated by hand through visual and tactile assessment of every blade surface, leading edge, and hub area. Inspectors rotate the wheel slowly, feeling for nicks, bent tips, or surface roughness that indicates foreign object impact.
Even minor leading-edge damage disrupts airflow symmetry, which reduces boost efficiency and accelerates bearing wear. Aluminum compressor blades are softer than turbine alloys, so ingested debris tends to leave clear deformation patterns. Any wheel showing blade contact marks against the housing bore is flagged immediately, because that contact signals either bearing failure or prior surge events.
How Is the Turbine Wheel Checked for Erosion and Blade Damage?
The turbine wheel is checked for erosion and blade damage by visually inspecting each blade for pitting, material loss, cracking at the root, and trailing-edge thinning. Inspectors look for asymmetric wear patterns that indicate hot spots or exhaust flow imbalance.
A 2021 proof-of-concept study published in MDPI Aerospace found that even automated turbine blade defect detection achieved only 83% overall accuracy with 54.1% precision, which underscores why trained human inspectors remain essential for catching subtle erosion that machines miss. Thermal fatigue cracks at blade roots are especially critical; if left undetected, a single fractured blade can destroy the entire rotating assembly at operating speed.
How Is Shaft Play Measured During a Manual Inspection?
Shaft play is measured during a manual inspection by applying light finger pressure to the compressor nut in both axial (in-and-out) and radial (side-to-side) directions while observing movement. A dial indicator provides precise readings when tighter tolerances must be verified.
According to a BorgWarner service bulletin, journal bearing turbochargers are designed with a significant amount of shaft movement that is removed only after pressurized oil is introduced during engine operation. In specific models like the S100/B1 series, allowable axial play ranges from 0.05 to 0.11 mm, while radial play is permitted between 0.36 and 0.53 mm. Movement beyond these thresholds, or any grinding sensation during rotation, indicates bearing wear that disqualifies the unit.
How Are Bearings and Seals Assessed for Wear?
Bearings and seals are assessed for wear by examining the journal bearing surfaces for scoring, discoloration, and material transfer, then checking piston ring seals for carbon buildup and elasticity loss. Inspectors look for oil residue on both the compressor and turbine sides of the center housing, which signals seal failure.
Scored bearing journals feel rough when rotated by hand; a healthy bearing produces smooth, drag-free movement. Seal degradation on the turbine side often presents as oil coking from extreme heat exposure, while compressor-side leaks leave wet oil film in the housing bore. Both conditions compromise lubrication film integrity and lead to progressive shaft damage if the turbocharger were reinstalled.
How Is the Wastegate or VGT Mechanism Inspected?
The wastegate or VGT mechanism is inspected by verifying actuator movement, linkage integrity, and vane freedom. Diagnostic criteria include confirming that the wastegate mechanism is not set incorrectly and that the actuator diaphragm has not failed, per established turbocharger inspection guidelines.
Key inspection points include:
-
Actuator rod movement through its full stroke without binding
-
Diaphragm holding vacuum or pressure without decay
-
VGT vane ring rotating freely with no carbon seizure
-
Linkage connections free of excessive play or corrosion
A stuck wastegate causes either chronic over boosting or under boosting, while seized VGT vanes trigger limp mode in modern diesel engine management systems. These mechanisms represent the final checkpoint before a turbocharger advances to performance-level evaluation.
What Turbocharger Defects Does Hand Inspection Catch?
Hand inspection catches defects including oil contamination, compressor wheel contact damage, scored bearing surfaces, excessive shaft endplay, and heat discoloration on the turbine. Each defect tells a different story about the turbocharger's operating history and remaining viability.
What Does Oil Contamination Inside a Turbocharger Indicate?
Oil contamination inside a turbocharger indicates lubrication system failure or degraded oil quality that has compromised internal components. When an inspector finds oil residue, sludge, or coking inside the center housing, it points to conditions that accelerate wear on precision-fit parts.
According to Melett, oil contamination is one of the most common causes of premature turbocharger failure, often manifesting as scratches and score lines on the journal bearing and shaft. These surface marks reveal that contaminated oil carried abrasive particles through the bearing system, grinding against rotating components at high speed. A turbocharger showing this pattern has likely suffered progressive damage that worsened over thousands of operating hours.
What Does Compressor Wheel Contact Damage Reveal?
Compressor wheel contact damage reveals that the wheel made physical contact with the compressor housing during operation. This condition signals one or more underlying problems:
-
Foreign object ingestion pulled debris through the air intake and into the wheel blades.
-
Bearing wear allowed the shaft to shift, closing the tight clearance between wheel and housing.
-
Housing distortion from thermal stress or impact narrowed the internal passage.
Even minor blade tip contact creates imbalance in a component spinning at over 100,000 RPM. Once imbalance begins, it compounds rapidly, making this one of the most telling defects a hand inspector can identify through visual and tactile evaluation.
What Do Scored or Pitted Bearing Surfaces Mean?
Scored or pitted bearing surfaces mean the lubrication film between the shaft and bearing broke down during operation. Scoring appears as parallel grooves cut into the bearing journal, while pitting presents as small craters caused by material fatigue or corrosive contaminants in the oil supply.
These surface defects are easy to detect by touch; a healthy bearing feels uniformly smooth, whereas a damaged one catches against the fingertip. Scored bearings cannot maintain the oil wedge needed to support the shaft at operating speed. In most cases, this damage disqualifies the CHRA from resale without a full rebuild, since compromised bearings lead to cascading failures in the turbine and compressor wheels.
What Does Excessive Shaft Endplay Tell an Inspector?
Excessive shaft endplay tells an inspector that the thrust bearing system has worn beyond acceptable limits. Shaft endplay refers to axial movement along the shaft's length, and a trained hand can detect abnormal play by gently pushing the shaft forward and backward.
According to BR Turbo, radial play is considered normal within 0.02 to 0.10 mm for journal bearing turbochargers, while any axial play exceeding 0.01 mm typically indicates a fault. When endplay exceeds these thresholds, the turbine and compressor wheels risk contacting their housings. This single measurement often determines whether a turbocharger core is rebuildable or must be scrapped entirely.
What Does Heat Discoloration on the Turbine Suggest?
Heat discoloration on the turbine suggests the turbocharger was exposed to exhaust gas temperatures beyond its design limits. Inspectors look for color changes on the turbine wheel and housing; a blue or purple tint indicates extreme thermal cycling, while a chalky white appearance signals sustained overheating.
These color shifts result from metallurgical changes in the nickel-based superalloys used in turbine wheels. Prolonged thermal abuse weakens grain structure, making the material brittle and prone to cracking under rotational stress. For experienced inspectors, the specific color gradient reveals not just whether overheating occurred but how severe and prolonged the exposure was. This is one defect where hands-on expertise consistently outperforms automated screening, since subtle gradations in discoloration carry diagnostic meaning that sensors often miss.
Understanding these specific defects helps explain what happens when a turbocharger does not pass evaluation.
What Happens to a Turbocharger That Fails Hand Inspection?
A turbocharger that fails hand inspection is removed from resale inventory and routed for either remanufacturing, core salvage, or disposal. The specific path depends on the type and severity of defects found.
Most failures trace back to lubrication-related problems. Research published on ResearchGate by Apostolos Pesyridis into turbocharger lubrication systems attributes a significant percentage of failures to lubricant behavior and factors such as hot stops that reduce service life. These conditions leave unmistakable physical evidence, from scored bearing surfaces to heat-discolored turbine wheels, that hand inspection is specifically designed to catch.
Units with repairable damage, such as worn bearings or minor housing imperfections, may be flagged as candidates for professional remanufacturing. Turbochargers with catastrophic defects follow a different path:
-
Units with cracked housings or structural fatigue are pulled for core material recovery only.
-
Turbochargers showing severe foreign object damage to both compressor and turbine wheels are typically scrapped.
-
Cores with excessive shaft play beyond salvageable tolerances are removed from circulation entirely.
This sorting process is what separates a quality-focused supplier from one that simply moves volume. Every turbocharger that fails inspection at Goldfarb & Associates is kept out of the sales pipeline, protecting buyers from installing a unit destined for premature failure. Understanding what qualifies a turbocharger for resale requires equally clear criteria.
What Criteria Must a Turbocharger Pass to Be Approved for Resale?
A turbocharger must pass criteria covering structural integrity, dimensional tolerances, component wear limits, and functional mechanism checks to be approved for resale. The specific benchmarks span housing condition, shaft play measurements, bearing surface quality, seal integrity, and wastegate or VGT operation.
-
Housing integrity: No cracks, warping, or foreign object damage on compressor or turbine housings.
-
Shaft play within specification: Radial play typically falls within 0.02 to 0.10 mm for journal bearing turbochargers, while axial play exceeding 0.01 mm indicates a fault, according to BR Turbo's published tolerance guidelines.
-
Bearing and seal condition: Journal bearing surfaces must be free of score lines, pitting, and oil contamination damage. Seals must show no hardening, tears, or oil bypass evidence.
-
Compressor and turbine wheel condition: Blades must be free of contact marks, erosion, nicks, and heat discoloration that would compromise aerodynamic balance.
-
Wastegate or VGT function: The mechanism must move freely through its full range, with correct actuator diaphragm response and proper calibration.
-
Oil passage cleanliness: Internal oil galleries must be clear of sludge or carbon buildup that could restrict lubrication flow after installation.
Any unit that falls outside these benchmarks during hand inspection is rejected. For experienced inspectors, the combination of tactile feedback, visual assessment, and dial indicator measurement catches marginal units that might otherwise pass a surface-level check. This discipline is what separates a reliable resale turbocharger from one likely to fail shortly after installation.
Why Does Hand Inspection Matter More for Diesel Turbochargers?
Hand inspection matters more for diesel turbochargers because diesel operating conditions produce higher soot loads, greater thermal cycling, and more aggressive wear patterns that demand closer scrutiny. The sections below cover how diesel-specific conditions accelerate turbo wear and why remanufactured diesel turbos face stricter quality standards.
How Do Diesel Operating Conditions Increase Turbo Wear?
Diesel operating conditions increase turbo wear through elevated soot production, sustained high-load duty cycles, and particulate fouling that accelerates component degradation. According to SAE International research, a diesel engine may emit up to seven times more particulate matter during transient operation such as acceleration, directly contributing to turbocharger fouling and performance loss.
This heavy particulate environment coats turbine housings, erodes blade surfaces, and contaminates oil pathways faster than gasoline applications. Diesel turbochargers also experience higher problem rates overall compared to non-turbo engines. When these units do fail, repair costs typically range from $2,000 to $8,000, with warning signs including power loss and black smoke under load.
Because diesel exhaust gas temperatures generally remain below 1,000°F during normal operation, heat alone is rarely the primary threat. Instead, the combination of soot accumulation, carbon buildup, and oil contamination makes thorough hand inspection essential for catching wear that instruments alone might miss.
Why Are Remanufactured Diesel Turbos Held to Stricter Standards?
Remanufactured diesel turbos are held to stricter standards because the operating conditions they return to are inherently more punishing than gasoline applications. Remanufactured turbochargers must meet stringent quality assurance certifications such as DIN EN ISO 9001:2015 and IATF 16949, which govern dimensional accuracy, material integrity, and performance benchmarking against OEM specifications.
The scale of the remanufacturing industry reinforces why these standards exist. In 2015, the Automotive Parts Remanufacturers Association (APRA) reported that approximately $35 to $40 billion worth of remanufactured parts were produced annually under industry-defined quality frameworks.
For diesel turbos specifically, hand inspection serves as the final quality gate before a unit enters this regulated supply chain. Any bearing score, housing crack, or shaft play anomaly overlooked during evaluation could lead to premature failure under heavy diesel loads. This is precisely why every unit deserves careful tactile and visual assessment before earning approval for resale.
With diesel-specific demands established, the next step is understanding how rigorous inspection shapes long-term reliability.
How Does Rigorous Hand Inspection Affect Turbocharger Reliability and Longevity?
Rigorous hand inspection affects turbocharger reliability and longevity by catching defects before they escalate into catastrophic failures during operation. Proper inspection and installation practices prevent the vast majority of premature turbo failures, directly extending service life.
According to Rotomaster, proper turbocharger installation and maintenance can prevent up to 90 percent of turbocharger failures. That statistic underscores why the inspection stage matters so much: a turbocharger cleared without thorough evaluation carries hidden risks that compound under boost pressure, heat cycling, and sustained RPM loads. Every scored bearing, hairline housing crack, or marginal shaft play measurement left undetected shortens the unit's operational window. Conversely, units that pass a disciplined hand inspection enter service with verified tolerances, clean oil passages, and structurally sound housings. For buyers sourcing used or remanufactured turbochargers, this level of pre-sale scrutiny is the single strongest predictor of reliable, long-term performance. Knowing how a supplier selects its inventory helps narrow the search for a quality replacement.
How Should You Choose a Diesel Turbocharger Supplier That Prioritizes Quality Inspection?
You should choose a diesel turbocharger supplier that prioritizes quality inspection by verifying hand-inspection protocols, inventory transparency, and adherence to recognized standards. The following sections cover how Goldfarb & Associates meets these criteria and the key takeaways from the inspection process.
Can Goldfarb's Hand-Inspected Turbocharger Inventory Help You Find a Reliable Replacement?
Yes, Goldfarb's hand-inspected turbocharger inventory can help you find a reliable replacement. Every turbocharger entering the Goldfarb & Associates facility undergoes a thorough manual evaluation covering housing integrity, wheel condition, shaft play, bearings, seals, and wastegate function. Units that fail any checkpoint are pulled from stock before reaching customers.
Goldfarb & Associates maintains over 20,000 unique part numbers across new, used, and remanufactured diesel components. This combination of rigorous hand inspection and deep inventory means buyers receive parts verified against a full quality checklist, not just a catalog listing. According to a 2024 Car Parts Industries report, remanufactured turbochargers must meet standards such as DIN EN ISO 9001:2015 and IATF 16949 to satisfy current market demands. Goldfarb & Associates aligns with this standard-driven approach by guaranteeing that used cores are in good rebuildable condition and all new or remanufactured parts are guaranteed to work upon installation.
What Are the Key Takeaways About How Turbochargers Are Hand Inspected Before Sale?
The key takeaways about how turbochargers are hand inspected before sale center on thoroughness, specificity, and accountability at every stage. Each unit is evaluated across multiple checkpoints:
-
Housing is examined for cracks, warping, and foreign object damage.
-
Compressor and turbine wheels are checked for blade erosion, contact marks, and heat discoloration.
-
Shaft play is measured against documented tolerances for both axial and radial movement.
-
Bearings and seals are assessed for scoring, pitting, and oil contamination.
-
Wastegate or VGT mechanisms are verified for correct operation and diaphragm integrity.
Only turbochargers that pass every criterion are approved for resale. For diesel applications, this discipline is especially critical because higher soot loads, elevated thermal cycling, and heavier duty cycles accelerate wear in ways that automated scans alone may not fully capture. Hand inspection adds a layer of experienced judgment that bridges the gap between machine data and real-world component reliability. Choosing a supplier like Goldfarb & Associates, where this process is standard practice, reduces the risk of premature failure and costly downtime.
