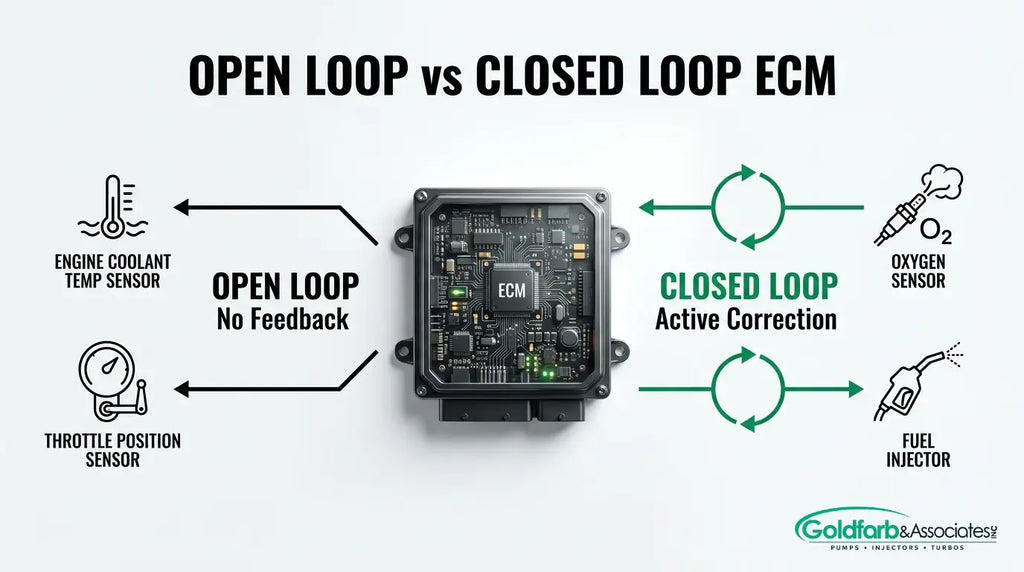

Closed loop and open loop ECM operation are the two fundamental modes an engine control module uses to manage fuel delivery, ignition timing, and emissions output. In an open loop, the ECM follows predetermined fuel maps without exhaust gas correction. In a closed loop, it actively adjusts those maps using real-time oxygen sensor feedback.
We cover ECM architecture and control authority, open loop and closed loop operating principles, fuel metering differences, performance and efficiency impacts, emissions consequences, common faults that prevent proper loop transitions, diesel-specific loop behavior, diagnostic procedures, and the relationship between fuel system component quality and closed loop accuracy.
The ECM's internal hardware processes dozens of sensor signals per second, calculating actuator commands for fuel injection, ignition timing, EGR positioning, and turbocharger control. Regulatory programs like EPA Tier 3 treat the vehicle and fuel system as an integrated whole, making electronic precision non-negotiable.
Open loop activates during cold starts, hard acceleration, and wide-open throttle, when oxygen sensors are unavailable or intentionally bypassed. The ECM commands richer mixtures from stored lookup tables, sacrificing efficiency for combustion reliability and engine protection.
Closed loop engages once coolant temperature and oxygen sensor readiness thresholds are met. Short-term and long-term fuel trims then correct injector pulse width continuously, holding the air-fuel ratio near stoichiometric targets. Adaptive algorithms in modern ECMs refine these corrections across changing conditions.
Diesel engines add complexity because they rely on fuel pressure and EGR feedback loops rather than traditional oxygen sensing, and they spend more operating time in open loop during events like DPF regeneration.
Faulty sensors, wiring issues, or degraded fuel system components can trap the ECM in open loop, causing measurable losses in fuel economy and emissions compliance. Proper diagnosis with OBD-II live data and investment in precision fuel injectors and injection pumps give the ECM the mechanical foundation it needs for stable closed loop control.
What Is an ECM and Why Does It Control Engine Operation?
An ECM is a computerized component that manages fuel injection, ignition timing, and emissions control by continuously monitoring sensor inputs and adjusting engine parameters in real time. The ECM controls engine operation because every combustion variable, from air-fuel ratio to exhaust gas recirculation, requires precise electronic coordination to meet performance and emissions targets. Its internal architecture and regulatory obligations define how it switches between open loop and closed loop modes.
According to Geotab, an ECM contains a microcontroller, memory (ROM for calibration data and RAM for temporary storage), input/output ports, an analog-to-digital converter, a voltage regulator, and a clock circuit that synchronizes all operations. These components work together to process dozens of sensor signals per second, calculate optimal actuator commands, and store learned calibration values.
The ECM's control authority spans several critical subsystems:
-
Fuel injection timing and pulse width determine combustion efficiency.
-
Ignition timing adjustments prevent knock and optimize torque.
-
EGR valve positioning controls NOx formation in both gasoline and diesel applications.
-
Variable geometry turbocharger vane positioning manages boost pressure and backpressure in diesel engines.
Regulatory pressure reinforces why electronic control is non-negotiable. The EPA's Tier 3 program, finalized in 2014, treats the vehicle and its fuel as an integrated system, setting emissions standards that require the ECM to maintain tight calibration across the full durability period. Without continuous electronic management, no modern engine could meet these targets consistently.
For diesel applications specifically, the ECM's role extends beyond basic fuel metering. Commercial EGR systems utilize open or closed loop electronic control to provide precise EGR rates and proper air-fuel ratios, balancing NOx reduction against particulate matter and fuel economy penalties. This layered responsibility makes the ECM the single most consequential component in determining whether an engine runs cleanly, efficiently, and reliably. Understanding how it operates in open loop versus closed loop is essential for diagnosing performance issues and maintaining emissions compliance.
What Does Open Loop ECM Operation Mean?
Open loop ECM operation means the engine control module delivers fuel based on predetermined maps and calculated estimates, without real-time exhaust gas feedback. The subsections below cover when open loop activates, which sensors the ECM uses during this mode, and how fuel delivery is determined.
When Does an ECM Enter Open Loop Mode?
An ECM enters open loop mode during conditions where oxygen sensor feedback is unavailable or intentionally bypassed. Cold starts are the most common trigger, since oxygen sensors require heat to reach operating temperature. Hard acceleration and wide-open throttle also force open loop operation, because the ECM prioritizes a richer fuel mixture over emissions optimization.
In diesel applications, open loop extends to soot management. According to HotShot Secret, the open loop model uses an algorithm based on engine speed, fuel consumption, airflow, and engine coolant temperature to calculate soot production, then initiates active DPF regeneration by injecting raw fuel into the exhaust stream at temperatures exceeding 1,100 degrees Fahrenheit. This calculated approach works without direct sensor correction.
What Sensors Does the ECM Rely on During Open Loop?
The ECM relies on non-exhaust sensors during open loop, including the mass airflow sensor, manifold absolute pressure sensor, engine coolant temperature sensor, throttle position sensor, and crankshaft position sensor. These inputs feed the ECM's preprogrammed fuel maps. Oxygen sensors remain inactive or ignored because they have not yet reached operating temperature.
Sensor type affects how long open loop persists. According to Walker Products, heated oxygen sensors should be inspected or replaced every 60,000 miles, while unheated oxygen sensors require attention every 30,000 miles. Unheated variants rely solely on hot exhaust gas to warm up, which delays the transition to closed loop. For technicians diagnosing open loop duration, understanding which sensor type is installed matters significantly.
How Does the ECM Determine Fuel Delivery in Open Loop?
The ECM determines fuel delivery in an open loop by referencing preprogrammed fuel maps stored in ROM. These maps plot injector pulse width against variables such as engine speed, intake air volume, coolant temperature, and throttle position. The module interpolates between mapped data points to calculate a fuel quantity for each combustion event.
Because no exhaust feedback corrects these calculations, the ECM typically commands a slightly richer mixture than stoichiometric to protect against lean misfires during warm-up. This conservative calibration sacrifices some fuel efficiency and produces higher emissions, but it prevents catalytic converter damage and maintains drivability. Once the oxygen sensors reach operating temperature and pass readiness checks, the ECM transitions to closed loop, where real-time corrections refine what open loop's static maps approximate.
Understanding how open loop fueling works clarifies why closed loop correction is essential for long-term efficiency.
What Does Closed Loop ECM Operation Mean?
Closed loop ECM operation means the engine control module actively adjusts fuel delivery based on real-time sensor feedback. The subsections below cover when the transition occurs, the oxygen sensor's central role, and how fuel trim corrections maintain optimal air-fuel ratios.
When Does an ECM Transition Into Closed Loop Mode?
An ECM transitions into closed loop mode once specific temperature and sensor readiness criteria are met. The engine coolant temperature must rise a minimum of 40°F and reach at least 160°F, completing what OBD-II standards define as a warm-up cycle. The oxygen sensor's heater circuit must also bring the sensor to operating temperature so it can produce reliable voltage readings. Some PCMs enter an intermediate "open loop STFT" state when O2 sensors show signs of operation before the coolant threshold is fully reached. A programmable delay, measured in seconds after startup, provides an additional buffer before the ECM enables closed loop. These layered prerequisites ensure the feedback data is trustworthy before the module begins correcting fuel delivery.
What Role Does the Oxygen Sensor Play in Closed Loop?
The oxygen sensor plays the role of primary feedback device in closed loop, measuring exhaust gas composition so the ECM can correct the air-fuel ratio in real time. Wideband O2 sensors respond to mixture changes in less than 100 milliseconds, according to Boosted Tech, providing the speed necessary for precise corrections. A malfunctioning sensor disrupts this entire feedback cycle, leading to decreased fuel efficiency, increased emissions, and potential catalytic converter damage.
Oxygen sensor failure traces to three common factors:
-
Age and high mileage degrading the sensing element
-
Internal contamination from oil, coolant, or fuel additives (sensor poisoning)
-
Electrical issues, particularly heater circuit failures that prevent the sensor from reaching operating temperature
When the sensor fails, the ECM loses its correction capability and reverts to open loop, relying solely on pre-programmed fuel maps. For any engine dependent on tight closed loop control, sensor health is non-negotiable.
How Does Real-Time Feedback Adjust Fuel Trim in Closed Loop?
Real-time feedback adjusts fuel trim in a closed loop through two complementary correction layers. Short Term Fuel Trim (STFT) reacts moment to moment, bouncing as driving conditions change. Long Term Fuel Trim (LTFT) is the learned average; when STFT consistently leans one direction, the ECM shifts LTFT to compensate permanently.
Healthy fuel trims generally stay within plus or minus 5%. Values beyond plus or minus 10% signal a developing issue, and readings past plus or minus 20% typically trigger a check engine light. According to Eureka PatSnap, adaptive ECM strategies incorporating machine learning elements improved fuel economy by 7.77% and 4.48% compared with rule-based control strategies. These adaptive algorithms continuously refine correction accuracy across varying conditions, making modern closed loop operation far more precise than earlier fixed-threshold systems.
Understanding how closed loop fuel trim operates helps explain why component quality directly affects engine efficiency and emissions.
How Do Closed Loop and Open Loop Differ in Fuel Metering?
Closed loop and open loop differ in fuel metering by how the ECM calculates injector pulse width: open loop relies on fixed fuel maps, while closed loop actively corrects those maps using oxygen sensor feedback. The subsections below cover each metering strategy in detail.
How Is Fuel Metered in Open Loop Without Sensor Feedback?
Fuel is metered in open loop without sensor feedback by following predetermined fuel maps stored in ECM memory. According to TuneZilla, open loop operation means the ECU follows predetermined fuel maps without sensor feedback, typically during cold starts, hard acceleration, and wide-open throttle. The ECM references lookup tables indexed by engine speed, load, and throttle position to calculate injector pulse width. Because no oxygen sensor data corrects these values, the delivered air-fuel ratio depends entirely on calibration accuracy. During these conditions, the ECM intentionally commands richer mixtures to protect against lean misfires and ensure reliable combustion. This approach trades precision for predictability, which is why open loop fuel metering produces higher emissions and reduced efficiency compared to corrected delivery.
How Is Fuel Metered in Closed Loop With Active Correction?
Fuel is metered in closed loop with active correction by comparing real-time oxygen sensor readings against the target air-fuel ratio and adjusting injector pulse width accordingly. The ECM uses proportional gain tables to scale corrections based on how far the measured O2 value deviates from the desired target. According to HP Tuners EU documentation on GM ECM parameters, the closed loop integrator delay table sets the minimum time in milliseconds that an overly rich or lean condition must persist before the VCM is allowed to make a fuel correction. This prevents erratic adjustments from momentary sensor fluctuations. Lambda serves as the universal reference point: a value of 1.0 represents stoichiometric combustion, values below 1.0 indicate rich, and values above 1.0 indicate lean. For technicians working with diesel fuel systems, understanding this correction logic is essential to diagnosing fuel trim faults accurately.
How Do Closed Loop and Open Loop Affect Engine Performance?
Closed loop and open loop affect engine performance by determining whether the ECM corrects fuel delivery in real time or relies on preset maps. The subsections below cover cold start behavior, steady-state efficiency, and throttle response under load.
How Does Open Loop Impact Cold Start and Warm-Up Performance?
Open loop impacts cold start and warm-up performance by forcing the ECM to deliver a richer, pre-programmed fuel mixture until sensors reach operating temperature. The OBD-II drive cycle defines a cold start as coolant temperature below 50°C (122°F), with coolant and air temperatures within 11 degrees of one another. During this window, the ECM cannot reference oxygen sensor feedback, so fuel calculations rely entirely on stored maps calibrated for worst-case starting conditions.
This rich strategy carries measurable emissions costs. According to a 2025 Netherlands TNO cold start emissions study, petrol vehicles produce 236 mg of NOx and 759 mg of total hydrocarbons per start, with most NOx occurring in the first 30 seconds after ignition. That initial period represents the peak of open loop inefficiency. Until ECT and O2 readiness thresholds are satisfied, the engine trades fuel economy and clean combustion for reliable cold start operation.
How Does Closed Loop Improve Steady-State Efficiency?
Closed loop improves steady-state efficiency by enabling the ECM to continuously adjust fuel delivery based on real-time oxygen sensor readings. Once the engine reaches operating temperature and the O2 sensors pass readiness checks, the ECM compares actual exhaust oxygen content against target values and corrects injector pulse width accordingly.
This active correction keeps the air-fuel ratio near its stoichiometric target, minimizing both wasted fuel and excess emissions during cruise and light-load conditions. Without this feedback mechanism, even minor drift in injector flow rates or intake air density would go uncorrected, gradually degrading combustion efficiency. Closed loop operation is where the ECM earns its value; the system essentially self-tunes during normal driving, which is why persistent open loop operation at steady state almost always signals a fault worth investigating.
How Does Each Mode Affect Throttle Response Under Load?
Each mode affects throttle response under load differently because open loop prioritizes engine protection while closed loop targets precision. During wide-open throttle or sudden acceleration, many ECMs deliberately enter open loop to deliver a richer mixture that prevents detonation and manages exhaust gas temperatures.
According to HP Tuners, the ideal stoichiometric ratio for pure gasoline is 14.7:1, but modern fuels shift that target; E10 blends require 14.1:1, and E85 drops to 9.7:1. Under heavy load, the ECM commands ratios well below stoichiometric regardless of loop mode. The key difference is that closed loop returns to precise correction once load decreases, while open loop holds its programmed enrichment until transition conditions are met again.
Understanding how each mode shapes real-world performance helps clarify why fuel efficiency and emissions shift across driving conditions.
How Do Closed Loop and Open Loop Affect Fuel Efficiency?
Closed loop and open loop affect fuel efficiency by determining whether the ECM corrects fuel delivery in real time or relies on fixed programming. Closed loop operation optimizes the air-fuel ratio through continuous sensor feedback, while open loop defaults to richer, less efficient fuel maps.
During open loop, the ECM intentionally commands a richer-than-stoichiometric mixture to protect engine components and ensure reliable combustion before sensors reach operating temperature. This deliberate richness wastes fuel. Every cold start, every wide-open throttle burst, and every sensor warm-up period burns more fuel than necessary because the ECM has no exhaust data to refine its calculations.
Closed loop corrects this inefficiency by using oxygen sensor readings to hold the air-fuel ratio near 14.7:1, the stoichiometric point where combustion is most complete. The ECM's short-term and long-term fuel trims continuously adjust injector pulse width, trimming excess fuel that would otherwise pass through unburned. This precision matters because even small deviations from stoichiometry compound over thousands of miles into measurable fuel waste.
Component quality plays a significant role that is often underestimated. Fuel injector tolerances directly influence how accurately the ECM can maintain its target ratio in a closed loop. An injector that delivers slightly more or less fuel than commanded forces the ECM to apply larger trim corrections, reducing the system's overall efficiency and responsiveness. Goldfarb & Associates supplies new, used, and remanufactured diesel fuel injectors that undergo thorough hand inspection and must pass a full checklist of quality criteria before shipping. Quality-assured injectors with tight manufacturing tolerances give ECMs the precision needed for stable closed loop operation and accurate fuel trim corrections.
For fleet operators and diesel applications, minimizing time spent in open loop is one of the simplest ways to improve fuel economy. Ensuring sensors, wiring, and coolant temperature circuits function correctly allows faster transitions into closed loop, where the ECM can do its most efficient work. Investing in quality fuel system components, particularly injectors with tight manufacturing tolerances, gives the ECM the mechanical precision it needs to translate sensor feedback into genuine fuel savings.
Understanding how these two modes shape fuel consumption helps explain why emissions output also varies between them.
How Do Closed Loop and Open Loop Affect Emissions Output?
Closed loop and open loop affect emissions output by determining whether the ECM actively corrects the air-fuel ratio or relies on preset fuel maps that tend to run rich. The key differences involve catalytic converter efficiency, cold start pollutant spikes, and regulatory compliance.
Why Does Open Loop Operation Produce Higher Emissions?
Open loop operation produces higher emissions because the ECM delivers a richer-than-stoichiometric fuel mixture without oxygen sensor correction. During cold starts, the catalytic converter has not yet reached its light-off temperature, so excess hydrocarbons and nitrogen oxides pass through untreated. According to Netherlands TNO research, cold start emissions testing measured NOx at 236 mg per start and total hydrocarbons at 759 mg per start, with most NOx occurring in the first 30 seconds after engine start. Wide-open throttle conditions also force open loop enrichment, temporarily bypassing emissions optimization. These periods represent the highest pollutant output in any drive cycle.
How Does Closed Loop Reduce Tailpipe Pollutants?
Closed loop reduces tailpipe pollutants by maintaining the air-fuel ratio at or near stoichiometry, which is the precise mixture where the catalytic converter operates at peak conversion efficiency. At lambda 1.0, the three-way catalyst simultaneously oxidizes hydrocarbons and carbon monoxide while reducing nitrogen oxides. Fuel trim corrections keep the mixture oscillating within a narrow band around 14.7:1, preventing sustained rich or lean excursions that would overwhelm the catalyst. Even small deviations beyond ±5% fuel trim can increase converter passthrough of unburned pollutants. Closed loop operation is essential for meeting modern tailpipe standards because it provides the real-time precision that static fuel maps cannot replicate.
What Emissions Standards Require Proper Loop Operation?
The emissions standards that require proper loop operation include EPA Tier 3 and Euro 5/6 regulations. According to DieselNet, the Tier 3 fleet average NMOG+NOx limit phases down to 30 mg/mi by 2025, applicable to all light-duty vehicle categories. Meeting this threshold demands consistent closed loop control across normal driving conditions, since open loop excursions during warm-up or heavy load produce pollutant spikes that erode fleet averages. Euro 5/6 regulations further extend PM mass emission standards to gasoline direct injection engines. For any vehicle to remain compliant over its required 150,000-mile emissions durability period, the ECM must reliably enter and sustain closed loop operation whenever sensor and temperature conditions allow.
Understanding how loop modes shape emissions output clarifies why sensor health and ECM calibration matter for regulatory compliance.
What Causes an ECM to Stay Stuck in Open Loop?
An ECM stays stuck in an open loop when one or more closed loop entry conditions remain unmet. The most common causes involve faulty oxygen sensors, failed coolant temperature sensors, and wiring or calibration faults.
Can a Faulty Oxygen Sensor Prevent Closed Loop Entry?
Yes, a faulty oxygen sensor can prevent closed loop entry. The ECM requires a valid oxygen sensor signal before transitioning from open loop, and a failed or sluggish sensor keeps that readiness condition unsatisfied. According to Walker Products, oxygen sensor failure can often be traced to age and high mileage, internal contaminant poisoning, or an electrical issue, with heater circuit problems being a common source of OBD-II codes. Without a functioning heater circuit, the sensor never reaches operating temperature, so the ECM continues running on predetermined fuel maps. A stuck-open-loop condition caused by a bad O2 sensor is one of the easiest faults to overlook because the engine may still run, just with poor fuel economy and elevated emissions.
Can a Failed Coolant Temperature Sensor Keep the ECM in Open Loop?
Yes, a failed coolant temperature sensor can keep the ECM in open loop. The ECM uses engine coolant temperature as a primary gate for closed loop enable; if the sensor reads incorrectly, that threshold is never recognized as met. Every modern car has dozens of sensors feeding PIDs to the ECM, including coolant temperature, airflow, exhaust oxygen content, and throttle position. When the coolant temperature PID reports a falsely low value, the ECM behaves as though the engine has not completed its warm-up cycle. This is particularly consequential because even a functioning oxygen sensor cannot trigger closed loop until the ECM confirms adequate coolant temperature. Diagnosing this fault requires comparing the live coolant temperature PID against an infrared thermometer reading on the thermostat housing.
Can Wiring or ECM Calibration Issues Block Closed Loop?
Yes, wiring or ECM calibration issues can block closed loop. Corroded connectors, broken ground wires, or damaged signal harnesses prevent valid sensor data from reaching the ECM, which then defaults to open loop operation as a protective measure. Calibration problems create a similar outcome through a different mechanism. If the ECM's stored calibration data contains incorrect closed loop enable thresholds or corrupted fuel maps, the module may never recognize that transition conditions have been satisfied. Reflashing the ECM with the correct OEM calibration file resolves software-related faults, while a thorough wiring inspection with a multimeter identifies resistance and continuity failures in the harness. In my experience, intermittent wiring faults are the hardest to catch because they may allow closed loop entry sporadically before dropping back to open loop under vibration or heat.
Understanding what keeps an ECM stuck in open loop clarifies how diesel and gasoline fuel systems depend on reliable components.
How Does ECM Loop Operation Differ in Diesel Engines?
ECM loop operation differs in diesel engines because these powertrains rely on fuel pressure and EGR feedback rather than traditional exhaust oxygen sensing for closed loop control. The following subsections cover fuel pressure feedback loops and why diesel systems spend more time in open loop.
How Do Diesel ECMs Use Fuel Pressure Feedback for Closed Loop?
Diesel ECMs use fuel pressure feedback for closed loop by monitoring common rail pressure sensors and adjusting injector pulse width to maintain target fuel delivery. Unlike gasoline engines that center closed loop around oxygen sensor readings, diesel ECMs compare actual rail pressure against commanded pressure and correct in real time. The ECM also integrates EGR valve position feedback to regulate exhaust gas recirculation rates. According to DieselNet's Technology Guide, commercial EGR systems utilize open or closed loop electronic EGR control to provide precise EGR rates and proper air-to-fuel ratios for NOx reduction while minimizing particulate matter and fuel economy penalties. This layered feedback approach makes diesel closed loop fundamentally different from gasoline systems.
Why Do Some Diesel Systems Operate in Open Loop More Often?
Some diesel systems operate in open loop more often because diesel combustion inherently runs lean, reducing the usefulness of stoichiometric oxygen feedback that gasoline engines depend on. During DPF regeneration cycles, the ECM switches to open loop algorithms that calculate soot loading based on engine speed, fuel consumption, and airflow. Active regeneration injects raw fuel into the exhaust stream, generating temperatures exceeding 1,100 degrees Fahrenheit to burn accumulated soot from the ceramic filter. Cold starts, low-load idling, and variable-geometry turbocharger adjustments also push diesel ECMs into open loop operation. For diesel operators, this means ECM calibration quality and fuel system component precision matter even more, since the engine spends significant time without active sensor correction.
Understanding how diesel ECM loops function helps clarify why fuel system component quality directly influences engine performance and emissions compliance.
What Symptoms Indicate Incorrect ECM Loop Operation?
Symptoms of incorrect ECM loop operation include rough idle, poor fuel economy, increased exhaust emissions, and a persistent check engine light. These signs point to the ECM failing to transition properly between open loop and closed loop, or operating in the wrong mode for current conditions.
A malfunctioning oxygen sensor can disrupt the engine's air-fuel balance, leading to decreased fuel efficiency, increased emissions, reduced vehicle performance, and potential damage to the catalytic converter, according to Edmunds. An incorrect air-fuel ratio can cause the engine to run poorly or overheat.
Key symptoms to watch for:
-
Fuel trim values beyond normal range. Healthy fuel trims stay within plus or minus 5%. Values consistently beyond plus or minus 10% signal a problem, and readings beyond plus or minus 20% almost always trigger a check engine light with noticeably rough running.
-
Stuck or lazy oxygen sensor voltage. An upstream O2 sensor should oscillate between 0.1 and 0.9V several times per second at idle. Slow switching below 1 Hz indicates a lazy sensor, while voltage stuck lean or rich suggests a failed sensor or fuel delivery issue.
-
Excessive cold-start emissions or prolonged warm-up. If the ECM remains in open loop longer than expected, fuel enrichment continues past the warm-up cycle, wasting fuel and producing elevated hydrocarbon output.
-
OBD-II diagnostic trouble codes. Codes such as P0131 indicate the oxygen sensor voltage remained low for longer than two minutes, pointing to a lean condition that prevents proper closed loop correction.
From a diagnostic standpoint, fuel trim data is the single most revealing indicator of loop malfunction. When short-term and long-term trims consistently skew in one direction, the ECM is either compensating for a real mechanical issue or receiving bad sensor data that corrupts its correction strategy. If diagnostic testing reveals a faulty ECM or related fuel system components preventing proper loop operation, sourcing quality replacement parts matters. Goldfarb & Associates maintains an inventory of over 20,000 unique diesel part numbers, including ECMs, fuel injectors, and injection pumps, with same-day shipping available for orders placed before 3:30 PM EST.
Recognizing these symptoms early allows targeted diagnosis with OBD-II scan tools and live data monitoring.
How Do You Diagnose Whether an ECM Is in Closed or Open Loop?
You diagnose whether an ECM is in closed or open loop by reading live OBD-II data with a scan tool. Key parameters include fuel system status, oxygen sensor voltage, fuel trim values, and coolant temperature. The following steps cover the essential diagnostic process.
An OBD-II scan tool is the most direct diagnostic instrument for this task. Connect the tool to the vehicle's diagnostic port, then navigate to the live data stream. The fuel system status PID will display either "OL" (open loop) or "CL" (closed loop) in real time. According to Skanyx, each individual reading is called a Parameter ID, or PID, and modern cars have dozens of sensors feeding information to the ECM, including coolant temperature, airflow, exhaust oxygen content, throttle position, and engine speed. Monitor the upstream O2 sensor voltage: a signal oscillating between 0.1V and 0.9V several times per second at idle confirms active closed loop correction, while a fixed or sluggish signal suggests the ECM remains in open loop.
Fuel trim readings provide the next layer of confirmation. Short term fuel trim (STFT) values that actively fluctuate indicate closed loop correction is engaged. Long term fuel trim (LTFT) values beyond plus or minus 10% point to a persistent compensation issue worth investigating further. Freeze frame data also proves valuable here, since OBD-II compliant vehicles capture a snapshot of sensor readings at the moment a diagnostic trouble code is set, revealing whether the fault occurred during open or closed loop operation.
Coolant temperature deserves close attention during the diagnostic process. If the ECT sensor reads below its closed loop enable threshold, the ECM will remain in open loop regardless of other conditions. Comparing the scan tool's reported coolant temperature against actual engine temperature with an infrared thermometer can expose a faulty ECT sensor that is artificially holding the system in open loop. For technicians working on diesel platforms, where loop behavior differs from gasoline applications, understanding these diagnostic fundamentals becomes especially important when evaluating fuel system component performance.
How Does ECM Loop Operation Relate to Diesel Fuel System Parts?
ECM loop operation relates to diesel fuel system parts because the ECM's ability to maintain closed loop control depends directly on the precision and condition of components like fuel injectors and injection pumps. The sections below cover how part quality affects closed loop performance and summarize the key differences between both operating modes.
Can Quality Fuel Injectors and Injection Pumps Improve ECM Closed Loop Performance?
Yes, quality fuel injectors and injection pumps can improve ECM closed loop performance. The ECM continuously refines fuel maps using adaptive fuel trim strategies, so it depends on injectors and pumps delivering fuel within tight tolerances. When injector spray patterns degrade or an injection pump delivers inconsistent rail pressure, the ECM's correction algorithms work harder to compensate. Worn or low-quality components push fuel trims beyond acceptable ranges, potentially forcing the system out of closed loop entirely.
The EPA's Tier 3 program reinforces this connection by treating the vehicle and its fuel system as an integrated system, setting emissions standards that demand precise fuel delivery from every component. For diesel applications especially, where injection pressures and timing tolerances are critical, investing in properly remanufactured or OEM-spec injectors and pumps gives the ECM the mechanical foundation it needs to hold stable closed loop operation.
What Are the Key Takeaways About Closed Loop vs Open Loop ECM Operation?
The key takeaways about closed loop vs open loop ECM operation are:
-
Closed loop operation uses real-time sensor feedback to adjust fuel delivery continuously, while open loop relies on predetermined fuel maps without active correction.
-
The transition from open loop to closed loop requires specific conditions: engine coolant temperature must rise a minimum of 40°F and reach at least 160°F, and oxygen sensors must pass readiness tests.
-
Modern ECMs incorporate adaptive learning capabilities that continuously refine fuel maps across varying driving conditions and environmental factors.
-
Component quality in fuel injectors, injection pumps, and sensors directly determines how effectively the ECM maintains closed loop accuracy.
