Diesel engine tolerances are the precisely defined dimensional limits, often measured in single-digit microns, that govern how internal components fit, seal, and function together. These specifications directly control combustion efficiency, lubrication integrity, and long-term component survival.
This guide covers how tolerances and precision are defined and measured, why micron-level accuracy governs combustion, lubrication, thermal management, and fuel delivery, which specific components demand the tightest dimensional control, how tolerance degradation produces predictable failure patterns, and how parts quality, maintenance practices, and sourcing decisions protect precision over time.
Tolerances measured in microns and thousandths of an inch follow ISO International Tolerance Grades, where a 40 mm part at IT7 carries a total allowable deviation of just 25 micrometres. Understanding the distinction between individual part tolerances and assembled clearances is essential for evaluating component quality.
Precision at the micron level controls fuel atomization, oil film stability, thermal expansion behavior, and volumetric fuel delivery accuracy. Common rail injector nozzles operate with internal clearances below 5 microns, and nozzle opening pressure tolerances can be as tight as 1%. Even microscopic deviations disrupt spray geometry, collapse bearing oil films, or shift combustion phasing.
Components including injector nozzles, pump plungers, crankshaft journals, turbocharger shafts, and valve guides each carry unique tolerance demands. When those tolerances fall out of spec, the results range from rough idle and smoke to bearing seizure and turbo wheel burst.
Fuel contamination, thermal cycling, and severe duty cycles accelerate wear progressively. Oil analysis, fuel filtration, correct torque specifications, and sourcing hand-inspected OEM-spec parts are the most effective defenses against tolerance loss.
What Are Diesel Engine Tolerances?
Diesel engine tolerances are the precisely defined dimensional limits that govern how engine components fit and function together. These specifications, often measured in microns, determine combustion efficiency, sealing integrity, and component longevity.
What Units of Measurement Define Engine Tolerances?
The units of measurement that define engine tolerances are primarily microns (micrometers) and thousandths of an inch. One micron equals one-millionth of a meter (0.001 mm), and most critical diesel components are specified within single-digit micron ranges. The ISO system of limits and fits standardizes these measurements using International Tolerance Grades, where each grade assigns a specific allowable deviation based on nominal part size. According to Xometry, the International Tolerance Grade IT7 for a 40 mm part provides a total tolerance width of just 25 micrometres (0.025 mm). As emission standards have tightened, electronic engine control units and cleaner fuels have pushed tolerance requirements even finer to meet Tier 2 and Tier 3 compliance.
How Do Tolerances Differ From Clearances in Diesel Engines?
Tolerances differ from clearances in diesel engines in a fundamental way: a tolerance defines the allowable manufacturing deviation of a single part, while a clearance describes the functional gap between two mating parts. Tolerance is a production specification; clearance is an assembly outcome. When two components, each manufactured within tolerance, are assembled together, the resulting clearance falls within a predictable range. If individual part tolerances drift, the assembled clearance shifts accordingly, directly affecting combustion dynamics and sealing. Research published in Thermal Science found that combustion efficiency and CO₂ emissions improved with pre-injection rates of 20% and 30% at 75% load conditions, underscoring how even small dimensional variables influence engine performance.
Understanding this distinction matters for anyone sourcing or inspecting diesel parts, because a component can be "within tolerance" individually yet produce an unacceptable clearance when paired with another borderline part.

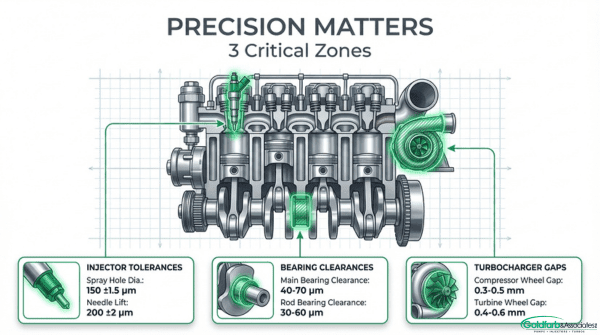

Why Is Micron-Level Precision Critical in Diesel Engines?
Micron-level precision is critical in diesel engines because even microscopic deviations in component dimensions compromise combustion, lubrication, thermal management, and fuel delivery. The following subsections explain how precision governs each of these systems.
How Does Precision Affect Combustion Efficiency?
Precision affects combustion efficiency by controlling fuel atomization, spray geometry, and injection timing at the microscopic level. Nozzle hole dimensions and needle seat tolerances determine how finely diesel fuel breaks into droplets; tighter tolerances produce more uniform spray patterns, which promote complete combustion and reduce unburned hydrocarbons.
According to DieselNet, tolerances in nozzle opening pressure for common rail diesel injectors can be as tight as 1% in certain high-precision applications. When those tolerances drift, spray cone angles shift, fuel distribution becomes uneven, and combustion temperatures rise unpredictably. This is one of the most overlooked drivers of both power loss and elevated exhaust emissions in aging diesel engines.
How Does Precision Influence Oil Film Integrity?
Precision influences oil film integrity by maintaining the exact clearances that allow hydrodynamic lubrication to form between moving metal surfaces. Bearing journals, piston skirts, and camshaft lobes all depend on oil films measured in single-digit microns to prevent metal-to-metal contact.
If a bearing bore exceeds its specified tolerance, the oil wedge collapses, friction spikes, and accelerated wear follows. For Detroit Diesel 71 Series engines, Diesel Pro notes that the allowable taper for critical inspection points should be no more than 0.005 inches (0.127 mm). Beyond that threshold, oil film stability degrades rapidly. Holding these tolerances is what separates predictable service life from premature bearing failure.
How Does Precision Impact Heat Dissipation and Expansion?
Precision impacts heat dissipation and expansion by ensuring that thermal growth stays within the clearance budget engineered into each component pair. Pistons, cylinder liners, and valve stems expand at material-specific rates as operating temperatures climb. Tolerances account for this growth so that running clearances remain optimal at full operating temperature.
When initial machining tolerances are loose, thermal expansion can close gaps entirely, causing scuffing, seizure, or valve sticking. Conversely, excessive cold clearance leads to combustion gas blow-by and poor heat transfer to coolant jackets. Precision at the micron level ensures components expand into their design envelope rather than against each other.
How Does Precision Determine Fuel Delivery Accuracy?
Precision determines fuel delivery accuracy by governing the volumetric consistency of each injection event. Plunger-to-barrel clearances in injection pumps and control valve fits in common rail injectors must remain within single-digit micron tolerances to meter fuel predictably across all cylinders.
Even slight dimensional variation between injector assemblies creates cylinder-to-cylinder fueling imbalances, which produce rough idle, power variation, and increased particulate output. Maintaining micron-level precision across the entire fuel system ensures that each combustion event receives the correct volume at the correct pressure, a requirement that only tightens as emission standards evolve.
With precision's role in combustion, lubrication, thermal management, and fuel delivery established, the next step is identifying which specific components demand the tightest tolerances.
Which Diesel Engine Components Require the Tightest Tolerances?
The diesel engine components that require the tightest tolerances include fuel injector nozzles, injection pump plungers, piston-to-cylinder wall interfaces, crankshaft bearing journals, turbocharger assemblies, valve guides, and ECM solenoid valve seats.
Fuel Injector Nozzles
Fuel injector nozzles require some of the tightest tolerances in any diesel engine. According to G2 Diesel Products, modern common rail diesel fuel injectors contain internal clearances within the control valve and nozzle that are often less than 5 microns. That margin is narrower than a human red blood cell. Even minor erosion or contamination at the nozzle tip disrupts spray pattern geometry, leading to incomplete combustion and elevated emissions. Maintaining sub-5-micron precision across millions of injection events is what separates a well-performing injector from one causing power loss and excessive soot.
Injection Pump Plungers and Barrels
Injection pump plungers and barrels operate as matched, lapped pairs with clearances typically in the low-micron range. The plunger must seal against the barrel bore tightly enough to generate and sustain injection pressures exceeding 25,000 PSI, yet still reciprocate freely without galling. Surface finish quality directly governs both sealing integrity and service life. Even slight scoring from contaminated fuel allows pressure bleed-off, reducing fuel delivery accuracy. This is one component where replacement with anything less than OEM-spec tolerances creates immediate, measurable performance degradation.
Piston-to-Cylinder Wall Clearances
Piston-to-cylinder wall clearances balance two competing demands: tight enough to seal combustion gases, loose enough to allow thermal expansion under load. Modern honing processes achieve bore surface accuracy measured in tenths of a micron, according to research published in Metals (MDPI). The crosshatch pattern left by precision honing retains oil film while promoting ring seal. Too tight, and the piston scuffs at operating temperature. Too loose, and blow-by gases enter the crankcase, reducing power and accelerating oil contamination. Cylinder bore geometry is among the most thermally sensitive tolerances in a diesel engine.
Crankshaft Main and Rod Bearing Journals
Crankshaft main and rod bearing journals depend on micron-level surface finish to maintain hydrodynamic lubrication. Journal roundness, taper, and surface roughness all determine whether the oil film supports the shaft or allows metal-to-metal contact. For Detroit Diesel 71 Series engines, Diesel Pro specifies that allowable taper at critical inspection points should be no more than 0.005 inches (0.127 mm). Out-of-round journals generate localized high-pressure zones that break down the oil film. For crankshafts spinning at thousands of RPM under heavy combustion loads, even marginal journal geometry deviations shorten bearing life dramatically.
Turbocharger Shaft and Bearing Assemblies
Turbocharger shaft and bearing assemblies operate at rotational speeds exceeding 100,000 RPM, making their tolerances critical. Allowable impeller shaft end play is specified with a minimum of 0.038 mm (0.0015 in.) and a maximum of 0.089 mm (0.0035 in.), as documented in Cummins technical data. That total allowable range spans just 0.051 mm. Excessive radial or axial play allows the compressor or turbine wheel to contact its housing, causing catastrophic failure. The oil film supporting these bearings must remain stable across extreme temperature gradients, which makes shaft journal finish and bearing bore concentricity essential.
Valve Stem-to-Guide Clearances
Valve stem-to-guide clearances govern both valve sealing and heat transfer from the valve head to the cylinder head. Intake and exhaust valves require different clearance specifications because exhaust valves operate at significantly higher temperatures and expand more. If the clearance is too loose, the valve wobbles, preventing a consistent seal against the seat and allowing combustion gases to erode both surfaces. If too tight, the stem binds in the guide as temperatures rise, potentially holding the valve open. Proper guide clearance also channels lubricating oil without allowing excessive oil consumption into the combustion chamber.
ECM-Controlled Solenoid Valve Seats
ECM-controlled solenoid valve seats regulate the precise timing and duration of fuel injection events in electronically managed diesel engines. These valves open and close millions of times over their service life, with seat geometry tolerances that must remain consistent to ensure accurate fuel metering. Even microscopic wear on the sealing surface alters injection timing by fractions of a millisecond, enough to shift combustion phasing and affect emissions compliance. Because the ECM calibrates injection events assuming factory-spec valve response, degraded seats create a mismatch between commanded and actual fuel delivery. Understanding which components demand the tightest tolerances helps explain why tolerance degradation produces specific failure patterns.
What Happens When Diesel Engine Tolerances Fall Out of Spec?
Diesel engine tolerances that fall out of spec cause progressive failures across injectors, bearings, turbochargers, and piston rings. Each component responds differently to dimensional deviation, but all paths lead to reduced performance, increased wear, and costly damage.
What Symptoms Indicate Worn Injector Tolerances?
Symptoms that indicate worn injector tolerances include rough idle, misfiring, excessive smoke, increased fuel consumption, and loss of power. Common rail diesel fuel injectors contain internal clearances within the control valve and nozzle often less than 5 microns, according to G2 Diesel Products. When wear pushes those clearances beyond spec, fuel atomization degrades and spray patterns become uneven.
Degraded atomization produces incomplete combustion, which manifests as:
-
Black or white exhaust smoke under load
-
Cylinder-to-cylinder power imbalance
-
Hard starting, especially in cold conditions
-
Elevated exhaust gas temperatures
Even a few microns of additional nozzle wear can shift injection timing and volume enough to trigger diagnostic trouble codes. Catching these symptoms early prevents cascading damage to pistons, valves, and catalytic aftertreatment systems.
What Failures Result From Excessive Bearing Clearances?
Failures that result from excessive bearing clearances include oil pressure loss, journal scoring, bearing knock, and catastrophic crankshaft seizure. Engine bearing oil films typically range in thickness from 2 to 100 microns (0.00008 to 0.004 inches), as reported by Machinery Lubrication. When clearances exceed specification, that protective film becomes too thin to separate rotating metal surfaces under load.
Once hydrodynamic lubrication breaks down, metal-to-metal contact accelerates exponentially. Operators often notice a deep knocking sound at idle first, followed by declining oil pressure readings. Left uncorrected, excessive bearing clearance generates heat and metallic debris that contaminates the entire lubrication system. This is one of the most expensive tolerance failures to recover from, since it frequently damages the crankshaft itself beyond simple regrinding limits.
How Do Out-of-Spec Turbo Tolerances Cause Damage?
Out-of-spec turbo tolerances cause damage by allowing shaft play beyond design limits, which leads to compressor or turbine wheel contact with the housing. Turbocharger shafts spin at speeds exceeding 100,000 RPM, so even minor radial or axial play amplifies into destructive vibration and imbalance.
When shaft end play exceeds the allowable range, several failures develop:
-
Compressor wheel rubs against the housing bore, gouging both surfaces
-
Oil seals lose contact pressure, allowing lubricant into the intake or exhaust stream
-
Bearing surfaces overheat from inconsistent oil film distribution
-
Boost pressure drops as compressor efficiency declines
Blue or gray exhaust smoke often signals turbo seal failure from worn tolerances. Continued operation risks complete wheel burst, sending metal fragments downstream into the engine.
What Problems Arise From Worn Piston Ring Clearances?
Problems that arise from worn piston ring clearances include blowby, oil consumption, compression loss, and accelerated cylinder bore wear. Piston rings rely on precise end gap and side clearance to maintain a dynamic seal between the combustion chamber and crankcase.
Excessive ring clearance allows combustion gases to escape past the rings into the crankcase, a condition known as blowby. This pressurizes the crankcase, pushes oil past other seals, and dilutes lubricating oil with soot and fuel byproducts. Simultaneously, oil migrates upward past worn rings into the combustion chamber, producing blue exhaust smoke and fouling injector tips. Compression testing across cylinders typically reveals the extent of ring seal degradation, with pressure variations exceeding 10% between cylinders often confirming the diagnosis.
Understanding how tolerances degrade under real operating conditions helps predict and prevent these failures before they escalate.
How Do Operating Conditions Affect Tolerance Degradation?
Operating conditions affect tolerance degradation by introducing environmental stressors that progressively erode micron-level clearances. Fuel contamination, thermal cycling, and duty cycle severity each accelerate wear through distinct mechanisms.
How Does Fuel Contamination Accelerate Tolerance Wear?
Fuel contamination accelerates tolerance wear by introducing abrasive particles into precision clearances smaller than 5 microns. Even microscopic debris acts like liquid sandpaper against injector nozzle seats and control valve surfaces.
The ISO 4406 cleanliness standard quantifies particulate contamination by measuring particles larger than 4µm, 6µm, and 14µm within a 100ml fluid sample, according to AXI International. High-pressure common rail systems are particularly vulnerable; contamination levels exceeding the World Wide Fuel Charter purity class of ISO code 18/16/13 can cause accelerated erosion of injection components.
Because these internal clearances operate at such tight margins, particles that would pass harmlessly through lower-pressure systems become destructive at modern injection pressures. Consistent fuel filtration is the most cost-effective defense against this form of tolerance degradation.
How Do Thermal Cycles Alter Component Dimensions?
Thermal cycles alter component dimensions by causing repeated expansion and contraction of mating parts at different rates. Steel and aluminum, commonly paired in diesel assemblies, have significantly different thermal expansion coefficients. Steel expands at roughly 12 parts per million per degree Celsius, while aluminum expands at approximately 23 parts per million per degree Celsius. This mismatch means that each heat-cool cycle shifts the relative clearance between components.
Over thousands of start-stop events, these micro-movements fatigue contact surfaces and gradually widen original tolerances. Cold starts in particular subject components to their steepest thermal gradients, concentrating stress at the tightest clearance points before oil films fully establish.
How Does Duty Cycle Severity Impact Tolerance Life?
Duty cycle severity impacts tolerance life by determining how quickly components accumulate fatigue cycles and thermal stress events. Engines subjected to frequent heavy-load operation, extended idling, or constant stop-and-go driving consume their tolerance budget faster than those running at steady, moderate loads.
Bosch specifies the life expectancy of diesel injectors at approximately 1 billion cycles, equating to roughly 230,000 miles of operation. Severe duty applications, such as construction equipment or urban delivery trucks, can reach that cycle count well before the equivalent mileage. For operators managing fleets under demanding conditions, monitoring duty cycle patterns helps predict when tolerances will approach their service limits.
Understanding how operating conditions drive wear helps inform smarter maintenance and parts sourcing decisions.
How Are Micron-Level Tolerances Maintained During Manufacturing?
Micron-level tolerances are maintained during manufacturing through precision machining processes, strict environmental controls, and advanced metrology. These methods work together to ensure diesel engine components meet exact dimensional specifications.
Modern honing processes for engine blocks achieve process capability and accuracy measured in tenths of a micron, according to a 2023 study published in Metals (MDPI). This level of precision allows cylinder bores, bearing journals, and valve guides to meet the tight clearance requirements that diesel combustion pressures demand.
Temperature stability plays an equally critical role. Steel and aluminum components expand at different rates during machining; steel leadscrews expand at 12 parts per million per degree Celsius, while aluminum expands at 23 parts per million per degree Celsius. Even small thermal fluctuations in a machining environment can push finished dimensions beyond acceptable limits.
High-precision measurement techniques also verify critical features after machining. Diesel spray hole diameters, for instance, can be measured with repeatability errors as low as 1.12 µm, ensuring that nozzle geometry conforms to design intent before assembly. Manufacturers pair these inspections with coordinate measuring machines and optical comparators to validate tolerances across production runs.
For components like common rail injectors and injection pump plungers, the combination of controlled machining environments, sub-micron finishing operations, and rigorous dimensional verification is what separates parts that perform reliably from those that fail prematurely. Understanding these manufacturing standards makes it easier to evaluate the quality of replacement diesel components.
What Role Does Parts Quality Play in Preserving Tolerances?
Parts quality directly determines whether micron-level tolerances survive from the box to the engine block. OEM-spec manufacturing, professional remanufacturing, and hand inspection each protect dimensional accuracy in distinct ways.
Why Do OEM-Spec Parts Hold Tolerances Better Than Knockoffs?
OEM-spec parts hold tolerances better than knockoffs because they are manufactured under tightly controlled environmental and metallurgical conditions that aftermarket imitators rarely replicate. Achieving micrometer-level accuracy demands extraordinary process control. According to the National Institute of Standards and Technology, manufacturing micrometer-tolerance assemblies requires temperature control better than 0.1 °C so that thermal variation in a 100 mm steel part represents less than 10% of a 1 μm tolerance.
Knockoff parts, often produced in facilities lacking this level of environmental regulation, introduce dimensional inconsistencies that compound under the heat and pressure of diesel combustion. For components like plungers, barrels, and nozzles, even minor deviations from spec compromise sealing surfaces and spray geometry.
How Does Remanufacturing Restore Original Tolerances?
Remanufacturing restores original tolerances by disassembling a used component, machining worn surfaces back to OEM dimensions, and replacing parts that fall outside acceptable limits. Skilled remanufacturers use precision honing, lapping, and grinding to bring bores, shafts, and sealing faces within micron-level specifications.
The process goes beyond simple cleaning or cosmetic refurbishment. Critical wear surfaces are measured against factory blueprints, and any component that cannot be restored is replaced with new OEM-grade stock. When executed properly, a remanufactured diesel injector or injection pump performs identically to a new unit, at a fraction of the cost.
Why Does Hand Inspection Matter for Tolerance Verification?
Hand inspection matters for tolerance verification because automated quality systems, while efficient, can miss surface-level defects and subtle dimensional deviations that trained inspectors detect through tactile and visual evaluation. Gauging bore diameters, checking plunger fitment, and verifying nozzle spray patterns by hand adds a final layer of quality assurance no machine fully replicates.
This is particularly valuable for remanufactured and used diesel parts, where each unit carries a unique wear history. A part may measure within tolerance on a CMM yet show micro-scoring that compromises long-term sealing. Hand inspection catches what instruments alone cannot, protecting the engine's precision well after installation.
With quality verified at the component level, maintaining those tolerances over time depends on disciplined maintenance practices.
How Can Proper Maintenance Extend Tolerance Life in Diesel Engines?
Proper maintenance extends tolerance life in diesel engines by catching wear early, preventing contaminant-driven erosion, and preserving factory-spec fits. The subsections below cover oil analysis, fuel filtration, and torque specifications.
How Does Oil Analysis Help Monitor Tolerance Wear?
Oil analysis helps monitor tolerance wear by tracking the concentration of metallic particles suspended in used engine oil. Each metal traces back to a specific component: iron signals cylinder liner or camshaft wear, copper points to bearing overlay erosion, and lead indicates bearing-back degradation.
According to Archer Oil, typical wear metal limits for diesel engines set iron at no higher than 300 ppm, while lead and copper levels should remain below 30 ppm. Trending these values across successive drain intervals reveals whether internal clearances are opening up gradually or accelerating toward failure. When results spike above baseline, it often indicates that a tolerance boundary has been breached and corrective action is needed before catastrophic damage occurs.
Why Is Fuel Filtration Critical for Injector Tolerances?
Fuel filtration is critical for injector tolerances because modern common rail injectors operate with internal clearances often below 5 microns. Particles that pass through a compromised filter can score these precision-lapped surfaces, permanently widening the gap between needle and bore.
Even a small increase in internal clearance reduces injection pressure consistency and degrades spray atomization. Filter efficiency ratings, reported through ISO 16889 Beta ratios, quantify a filter's ability to capture particles at specific micron thresholds. Replacing fuel filters at OEM-recommended intervals, rather than stretching service life, is one of the most cost-effective ways to protect injector tolerances. Skipping a single replacement can introduce enough abrasive contamination to shorten injector life by thousands of hours.
How Do Correct Torque Specs Preserve Assembly Tolerances?
Correct torque specs preserve assembly tolerances by applying the exact clamping force engineers calculated for each fastened joint. Under-torqued bolts allow micro-movement between mating surfaces, which accelerates fretting wear and gradually opens clearances beyond their designed range. Over-torquing distorts bores, warps gasket surfaces, and can permanently deform housings.
Cylinder head bolts illustrate this clearly; uneven torque across the head creates localized bore distortion that alters piston-to-wall clearances by several microns. Using a calibrated torque wrench and following the manufacturer's tightening sequence ensures uniform load distribution. For critical assemblies like connecting rod caps and main bearing caps, even small deviations from spec compromise the round geometry that oil film integrity depends on.
With maintenance strategies protecting existing tolerances, sourcing precision-quality replacement parts becomes the next priority.
How Should You Source Precision Diesel Components for Optimal Tolerances?
You should source precision diesel components from suppliers that verify tolerances through hand inspection, maintain deep OEM-spec inventory, and guarantee part condition. The following sections cover how Goldfarb & Associates meets these criteria and the key takeaways on micron-level precision.
Can Goldfarb's Hand-Inspected Diesel Parts Help Maintain Micron-Level Tolerances?
Yes, Goldfarb & Associates' hand-inspected diesel parts can help maintain micron-level tolerances. Every part in Goldfarb & Associates' inventory undergoes a thorough hand inspection against a full quality checklist before shipping. This process catches dimensional deviations that automated sorting alone may miss, particularly in components like nozzles, plungers and barrels, and injection pumps where clearances fall below 5 microns.
Goldfarb & Associates stocks over 20,000 unique part numbers across new, remanufactured, and used diesel components. This breadth means customers sourcing injectors, turbochargers, ECMs, or delivery valves can find OEM-spec replacements without settling for knockoff parts that compromise tolerance integrity. All new and remanufactured parts are guaranteed to work upon installation, and used diesel cores are guaranteed to arrive in good rebuildable condition. For operations where every micron matters, that verification step before a part ever leaves the warehouse is what separates reliable sourcing from costly guesswork.
What Are the Key Takeaways About Diesel Engine Tolerances and Micron-Level Precision?
The key takeaways about diesel engine tolerances and micron-level precision center on three realities: tolerances are extraordinarily tight, degradation is inevitable, and sourcing quality parts is the most controllable variable in the equation.
-
Critical diesel components operate within single-digit micron clearances, making even minor dimensional shifts a threat to performance and longevity.
-
According to DieselNet, common rail injector nozzle opening pressure tolerances can be as tight as 1% in high-precision applications.
-
Fuel contamination, thermal cycling, and duty cycle severity all accelerate tolerance wear over time.
-
Proper maintenance practices, including oil analysis, fuel filtration, and correct torque specifications, directly extend tolerance life.
-
Parts quality determines whether original tolerances are preserved or compromised at every rebuild and replacement interval.
Sourcing from a supplier that hand-inspects every component and guarantees condition, like Goldfarb & Associates, closes the gap between factory-spec precision and real-world diesel reliability.
