Diagnose Common Rail Fuel System Problems (2026 Guide)

A common rail fuel system is a high-pressure diesel injection system that stores pressurized fuel in a shared rail and delivers it to each cylinder independently of engine speed. Diagnosing problems in these systems requires isolating whether the fault originates in the mechanical, hydraulic, or electronic subsystems that work together under extreme precision tolerances.

This guide covers how the system works, the symptoms and root causes of common rail failure, pressure and injector diagnostics, electrical fault isolation, required tools, common mistakes, and sourcing the right replacement parts.

Understanding the system's architecture is the foundation for every diagnostic step that follows. The common rail separates pressure generation from injection timing, giving the ECM precise control over fuel delivery; failures in any single component (pump, injector, sensor, or wiring) can cascade into symptoms that mimic unrelated engine faults.

Recognizing failure symptoms narrows the search. Hard starting, rough idle, power loss under load, excessive exhaust smoke, declining fuel economy, and fuel system fault codes each point to specific subsystem problems, from worn injector seals to contaminated fuel supplies.

Hands-on diagnostic procedures confirm the root cause. Scanner-based rail pressure testing, injector return flow measurement, leak-down tests, pump output volume checks, and cylinder cut-out techniques each target a different failure mode with measurable pass/fail criteria.

Electrical and ECM-related faults require their own diagnostic path. Corroded connectors, damaged harnesses, and drifting sensor signals produce intermittent symptoms that mimic mechanical failures, making systematic wiring and signal verification essential before condemning expensive components.

Choosing quality replacement parts matched to OEM specifications ensures lasting repairs. Goldfarb & Associates stocks over 20,000 diesel part numbers, including injectors, pumps, and sensors, with same-day shipping on orders placed before 3:30 PM EST.

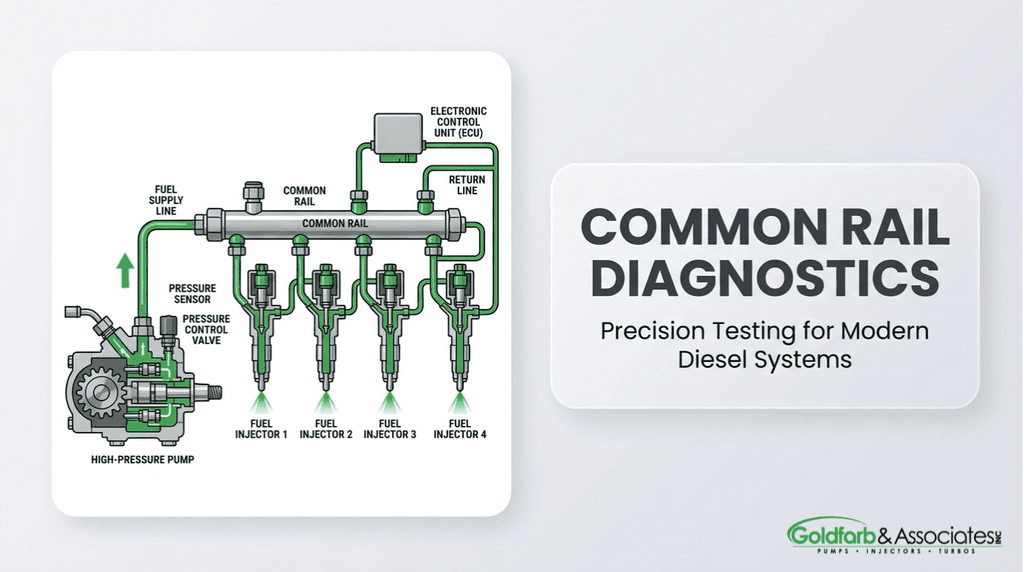

What Is a Common Rail Fuel System and How Does It Work?

A common rail fuel system is a high-pressure diesel fuel injection system that stores pressurized fuel in a shared rail and delivers it to each cylinder's injector independently of engine speed. The system separates pressure generation from injection timing, giving the engine control module (ECM) precise authority over fuel delivery at every operating point.

Three core subsystems make this possible: a high-pressure fuel pump that pressurizes diesel fuel, a common fuel rail that acts as an accumulator, and electronically controlled fuel injectors that meter fuel into each combustion chamber. According to DieselNet, common rail systems can reach pressures up to 300 MPa (3,000 bar), which prevents significant pressure drops during full fueling events. This accumulator design allows multiple injection events per combustion cycle, including pilot injections, main injections, and post-injections, all timed with microsecond precision by the ECM.

The process follows a defined sequence:

1. A low-pressure transfer pump draws diesel from the fuel tank through a fuel filter.

2. The high-pressure fuel pump compresses fuel and delivers it to the common fuel rail.

3. A rail pressure sensor monitors accumulator pressure and reports to the ECM.

4. The fuel pressure regulator or metering unit adjusts pump output to maintain the target rail pressure.

5. The ECM commands each fuel injector to open at the exact timing, duration, and frequency required for the current load and speed conditions.

6. Excess fuel from the injectors returns to the fuel tank through return lines.

Because pressure generation and injection timing operate independently, common rail diesel injection achieves finer atomization, quieter combustion, and lower emissions than older mechanical pump-line-nozzle designs. Bosch launched the first common rail system for passenger cars in 1997, and the technology has since evolved through four generations. For technicians diagnosing fuel system problems, understanding this architecture is essential, since failures in any single subsystem, from the high-pressure pump to a single injector's solenoid coil, can cascade into drivability symptoms that mimic unrelated engine faults.

What Are the Most Common Symptoms of Common Rail Failure?

The most common symptoms of common rail failure include hard starting, rough idle, power loss under load, excessive exhaust smoke, declining fuel economy, and illuminated check engine lights with fuel system codes. Each symptom points to a specific area of the injection system.

Why Does the Engine Have Hard Starting or No Start?

The engine has hard starting or no start because the common rail system cannot build or maintain adequate fuel pressure during cranking. A worn high-pressure pump, leaking injectors, or a faulty pressure regulator allows pressure to bleed off, starving the cylinders of fuel.

When fuel rail pressure drops below the ECM's minimum threshold, the injectors cannot atomize fuel properly, and combustion fails entirely. Common causes include:

• Air intrusion from cracked low-pressure supply lines

• A sticking fuel metering unit that restricts pump output

• Excessive injector return flow draining rail pressure during cranking

Extended cranking times that worsen in cold weather often indicate progressive internal wear rather than a single failed component. Diagnosing whether pressure loss originates at the pump, rail, or injectors is the essential first step.

Why Is the Engine Producing Rough Idle or Misfiring?

The engine produces rough idle or misfiring because one or more common rail injectors deliver inconsistent fuel quantities at low RPM. Even minor variations in injector spray pattern or timing become noticeable when the engine operates at idle speed with minimal load.

Internal diesel injector deposits, worn nozzle seats, or electrical faults in injector solenoids cause uneven cylinder-to-cylinder fueling. The ECM attempts correction through injector trim values, but when wear exceeds the compensation range, rough idle and misfiring result.

According to Cummins, Tier 4 diesel engines achieve a 90% reduction in particulate matter and an 85% reduction in nitrous oxides through advanced injection and after-treatment technologies. This precision means even slight injector degradation disrupts the tightly calibrated combustion process that modern emissions systems depend on.

Why Does the Engine Lose Power Under Load?

The engine loses power under load because the high-pressure pump or injectors cannot sustain the elevated fuel delivery demands that full-throttle operation requires. Under load, the ECM commands maximum rail pressure and extended injection duration; any component weakness surfaces immediately.

Typical causes of load-related power loss include:

• A high-pressure pump with worn internal components that cannot maintain target rail pressure above 20,000 psi

• Injectors with eroded nozzle holes that alter spray geometry and reduce combustion efficiency

• A partially restricted fuel filter that limits supply volume to the pump

Intermittent power loss that appears only during acceleration or hill climbing, then resolves at steady cruise, strongly suggests a pressure-supply deficit rather than a complete component failure.

Why Is There Excessive White or Black Smoke at Exhaust?

There is excessive white or black smoke at the exhaust because the common rail system is delivering fuel incorrectly, resulting in incomplete combustion. Smoke color provides a direct diagnostic clue about the type of fueling problem.

• White smoke indicates unburned or partially burned fuel, typically caused by low rail pressure, a misfiring injector, or incorrect injection timing.

• Black smoke indicates an overly rich fuel mixture, often from a leaking injector that delivers excess fuel or a faulty pressure sensor sending incorrect data to the ECM.

• Blue-white smoke at startup can indicate fuel dilution in the crankcase from injectors that dribble during shutdown.

Persistent smoke under normal operating temperatures warrants immediate inspection. Ignoring it risks catalytic converter or diesel particulate filter damage, which compounds repair costs significantly.

Why Are Fuel Economy and Performance Dropping?

Fuel economy and performance drop because degraded common rail components waste fuel through internal leakage, poor atomization, or inaccurate pressure regulation. These losses often develop gradually, making them easy to overlook until consumption increases noticeably.

Injectors with worn nozzle tips lose spray precision, delivering fuel in streams instead of a fine mist. The result is incomplete combustion that wastes energy as heat and unburned hydrocarbons. Similarly, a high-pressure pump with internal bypass leakage works harder to maintain target rail pressure, consuming more mechanical energy from the engine.

For fleet operators tracking cost-per-mile, a 10 to 15 percent fuel economy decline across multiple vehicles often reveals a systemic fuel quality issue rather than isolated component wear.

Why Is the Check Engine Light On With Fuel System Codes?

The check engine light is on with fuel system codes because the ECM has detected rail pressure deviations, injector circuit faults, or fuel metering errors that exceed programmed thresholds. These diagnostic trouble codes pinpoint which subsystem triggered the fault.

Common fuel system codes include rail pressure below or above target, injector circuit open or short, and fuel metering valve performance faults. Each code narrows the diagnostic path, though multiple codes often appear simultaneously when a single root cause cascades through the system.

According to the Electronic Code of Federal Regulations, 49 CFR Part 393 Subpart E establishes specific fuel system requirements for commercial motor vehicles, including mandatory safety standards for installation and maintenance. Addressing fuel system codes promptly protects both compliance standing and engine longevity.

Recognizing these symptoms early simplifies the diagnostic process covered in the next sections.

What Are the Main Causes of Common Rail System Problems?

The main causes of common rail system problems include fuel contamination, worn injectors, high-pressure pump failure, faulty regulators, damaged fuel rails, failed sensors, wiring faults, and clogged filters.

Fuel Contamination

Fuel contamination is the leading cause of common rail system failures. Water, dirt, and micro-fine particles in diesel fuel damage precision-machined internal components operating at extreme pressures. According to Heavy Duty Journal, over 85% of fuel system failures in modern high-pressure common rail systems are attributed to moisture and water contamination. Improper fuel storage accelerates contamination by introducing condensation and sediment. Even trace amounts of water cause corrosion on injector needle seats and pump plungers, while particulate matter scores critical sealing surfaces. Because common rail tolerances are measured in microns, contamination that would be harmless in older mechanical systems can be catastrophic here.

Worn or Failing Injectors

Worn or failing injectors cause poor fuel atomization, misfires, and power loss in common rail engines. Over time, the needle valve, nozzle tip, and internal seals degrade from the constant cycling at extreme pressures. Internal diesel injector deposits (IDID) compound this wear by altering spray patterns and restricting fuel delivery. Symptoms often appear gradually; a slight increase in fuel consumption or rough idle may be the earliest sign. Excessive return flow, typically above 20cc per minute at idle, confirms internal leakage past worn high-pressure seals. Replacing injectors promptly prevents downstream damage to the fuel rail and catalytic after-treatment components. Understanding what causes fuel injector failure before it escalates protects the entire high-pressure circuit from secondary contamination.

High-Pressure Fuel Pump Failure

High-pressure fuel pump failure prevents the common rail from reaching or maintaining target operating pressure. According to Bosch Mobility, the CP4 high-pressure pump handles pressure levels between 1,800 and 2,700 bar across passenger car and small heavy-duty applications. When internal pump components wear or seize, metal debris circulates through the entire fuel system, contaminating injectors and the rail itself. Recognizing common injection pump problems early prevents this cascading contamination from destroying downstream components. Poor fuel quality accelerates this failure; fuel injector or fuel pump performance failures are generally not covered under warranty because fuel quality is considered a maintenance factor. Regular fuel filter changes and quality fuel sourcing are the most effective preventive measures against pump failure.

Faulty Fuel Pressure Regulator or Metering Unit

A faulty fuel pressure regulator or metering unit causes erratic rail pressure that the ECM cannot compensate for. The fuel metering unit controls how much fuel enters the high-pressure pump, while the pressure regulator maintains target rail pressure by returning excess fuel. When either component sticks, leaks internally, or loses its electrical signal, the system oscillates between over-pressure and under-pressure conditions. Symptoms include surging at idle, hesitation under load, and stored diagnostic trouble codes related to rail pressure deviation. Electrical connector corrosion is a frequent root cause, particularly in vehicles exposed to road salt or harsh operating environments.

Leaking or Damaged Fuel Rail

A leaking or damaged fuel rail causes immediate pressure loss across all injectors simultaneously. The common rail serves as the high-pressure accumulator that stores fuel at operating pressure for all cylinders. Cracks from vibration fatigue, corroded fittings, or improperly torqued connections allow pressurized fuel to escape. Unlike a single failing injector, rail leaks produce system-wide symptoms: hard starting, total power loss, and stalling. External fuel weeping near rail connections is often visible during inspection. Even minor seepage at these pressures represents a significant volume loss that the pump cannot overcome, making prompt repair essential.

Failed Rail Pressure Sensor

A failed rail pressure sensor sends incorrect pressure readings to the ECM, disrupting the entire fuel delivery strategy. The ECM relies on this sensor to calculate injector pulse width and pump output commands. When the sensor drifts out of calibration or fails completely, the ECM either enters diesel engine limp mode or commands incorrect fuel quantities. Common failure modes include signal dropout, voltage readings outside the expected range, and slow response to rapid pressure changes. A failed sensor frequently mimics pump or injector problems, which makes scanner-based live data comparison between commanded and actual rail pressure critical for accurate diagnosis.

Wiring and ECM Communication Faults

Wiring and ECM communication faults disrupt the electronic signals that coordinate injector firing, pump metering, and sensor feedback. Corroded connectors, chafed harnesses, and broken ground circuits introduce resistance or signal interruption into circuits operating on millivolt-level precision. These faults are particularly deceptive because they produce intermittent symptoms that may not trigger consistent fault codes. Heat cycling, vibration, and exposure to diesel fuel all degrade wiring insulation over time. A thorough pin-by-pin resistance and voltage drop test at each connector often reveals problems that a quick visual inspection misses entirely.

Clogged or Restricted Fuel Filters

Clogged or restricted fuel filters starve the high-pressure pump of adequate fuel supply, causing cavitation and accelerated internal wear. Fuel filters serve as the primary defense against contaminants reaching precision common rail components. As filter media loads with trapped particles and water, flow restriction increases and suction-side pressure drops below acceptable levels. Most manufacturers specify replacement intervals between 15,000 and 30,000 miles, though contaminated fuel sources may require more frequent changes. Neglected filters are one of the most preventable causes of expensive pump and injector failures. With causes identified, the next step is diagnosing rail pressure faults directly.

How Do You Diagnose Common Rail Pressure Problems?

You diagnose common rail pressure problems by comparing actual rail pressure readings against manufacturer specifications using a combination of scanner data, leak-down testing, and component-level checks. The following subsections cover scanner-based pressure testing, leak-down procedures, pressure relief valve inspection, and fuel pressure regulator verification.

How Do You Test Rail Pressure With a Diagnostic Scanner?

You test rail pressure with a diagnostic scanner by connecting an OBD-II or manufacturer-specific scan tool and monitoring live rail pressure data against commanded pressure values. The scanner displays actual versus desired pressure in real time, and any consistent deviation signals a problem in the high-pressure circuit.

Key parameters to monitor include:

• Actual rail pressure at cranking, idle, and under load.

• Commanded (desired) rail pressure from the ECM.

• Pressure deviation percentage between actual and commanded values.

• Fuel metering unit duty cycle and correction factors.

According to Highway & Heavy Parts, a CP3 pump output test should produce a minimum of 70 ml of fuel discharge during a 10-second cranking period at 150 rpm. If scanner data shows rail pressure falling short during cranking, the high-pressure pump becomes the primary suspect. Persistent low-pressure readings at idle, by contrast, often point toward injector back-leakage or a faulty regulator rather than pump failure. Ruling out common low fuel pressure problems at the supply side simplifies downstream diagnosis.

How Do You Perform a Fuel Pressure Leak-Down Test?

You perform a fuel pressure leak-down test by shutting off the engine at operating temperature and monitoring how quickly rail pressure drops. A rapid pressure decline indicates an internal leak in the high-pressure circuit, typically at the injectors, pump check valves, or rail connections.

The basic procedure involves:

1. Bring the engine to normal operating temperature and note the stable rail pressure on the scanner.

2. Turn off the engine and immediately watch the pressure decay rate.

3. Compare the decay curve against OEM specifications for acceptable pressure hold time.

4. Isolate components one at a time, starting with the injector return lines, to identify the leak source.

Internal diesel injector deposits have been widely reported by ResearchGate as a cause of performance issues in high-pressure common rail engines, affecting fuel delivery and spray patterns. These deposits degrade injector sealing surfaces over time, making leak-down testing especially valuable for catching gradual failures before they escalate into complete injector breakdown.

How Do You Check the Pressure Relief Valve for Faults?

You check the pressure relief valve for faults by inspecting it for physical damage, verifying its sealing capability, and monitoring rail pressure behavior under load. A faulty pressure relief valve either bleeds off pressure prematurely or sticks closed, creating dangerously high rail pressure.

Signs of a failing pressure relief valve include:

• Rail pressure capping well below the commanded maximum under load.

• Fuel weeping or visible leakage at the valve seat.

• Over-pressure fault codes stored in the ECM.

To test, remove the valve and inspect the sealing surfaces for scoring, erosion, or debris contamination. Bench testing with a calibrated hand pump confirms whether the valve opens at its rated cracking pressure. If it opens below specification, the valve has weakened and requires replacement. For most technicians, combining visual inspection with scanner-based pressure monitoring under load provides the most reliable diagnosis without specialized bench equipment.

How Do You Verify Fuel Pressure Regulator Operation?

You verify fuel pressure regulator operation by commanding the regulator through the scanner and measuring the corresponding rail pressure response. The fuel pressure regulator, often called the fuel metering unit, controls fuel volume entering the high-pressure pump.

Steps to verify proper operation include:

1. Use the scanner's bi-directional control to command the regulator to specific duty cycle values.

2. Observe whether actual rail pressure rises and falls proportionally with commanded changes.

3. Check for erratic pressure fluctuations that indicate a sticking or electrically intermittent regulator.

4. Measure the regulator's electrical resistance and compare it to OEM specifications.

A regulator that fails to respond to commanded changes, or one that produces inconsistent pressure output, typically needs replacement. Electrical faults in the regulator wiring harness can mimic a bad regulator, so always confirm wiring integrity before condemning the component itself.

With pressure diagnostics complete, the next step focuses on isolating individual injector performance.

How Do You Diagnose Faulty Common Rail Injectors?

You diagnose faulty common rail injectors using a combination of electrical tests, fuel return measurements, scanner data analysis, and cylinder isolation techniques. The following methods cover each diagnostic approach.

How Do You Run an Injector Buzz Test?

You run an injector buzz test by activating each injector individually through a scan tool or dedicated driver while listening for an audible click. A healthy solenoid injector produces a consistent, sharp buzzing sound when energized. Silence or a weak click suggests a failed coil or seized internal valve.

For a more precise evaluation, measure coil resistance with a multimeter. According to NW Fuel Injection Service, standard DC wound coil injectors typically show resistance between 0.3 and 0.8 ohms; values outside this range indicate coil damage or internal shorts. Comparing readings across all injectors quickly isolates the suspect cylinder.

How Do You Perform an Injector Return Flow Test?

You perform an injector return flow test by disconnecting the fuel return lines from each injector and routing them into individual graduated cylinders or clear tubes. With the engine idling, observe the volume of fuel each injector leaks back to the tank over a set time interval.

According to Diesel World Mag, healthy common rail injectors typically return less than 20cc of fuel per minute at idle; flow exceeding this limit indicates worn high-pressure seals and internal leakage. An injector with excessive return flow cannot maintain proper spray pressure, leading to misfires and power loss. This test is one of the most reliable ways to confirm internal injector wear without removal.

How Do You Read Injector Correction Values on the Scanner?

You read injector correction values on the scanner by navigating to the live data or fuel system parameters within your OBD-II or OEM diagnostic tool. Correction values, sometimes called trim values or quantity adjustments, represent the ECM's real-time compensation for each injector's deviation from its ideal fuel delivery rate.

A well-functioning injector shows a correction value near zero. Positive corrections mean the ECM is adding fuel to compensate for under-delivery, while large negative corrections indicate over-fueling. When any single cylinder's correction value drifts significantly beyond the manufacturer's specified tolerance, that injector is degrading and likely needs replacement or recalibration.

How Do You Identify a Failing Injector With Cylinder Cut-Out?

You identify a failing injector with cylinder cut-out by using a scan tool to electronically disable one injector at a time while monitoring engine RPM and smoothness. When a normally contributing cylinder is disabled, engine speed drops noticeably. If disabling a particular cylinder produces little or no RPM change, that injector is already underperforming.

This process of elimination pinpoints which cylinder is not carrying its share of the combustion workload. Combined with return flow data and correction values from the methods above, cylinder cut-out testing provides strong confirmation before committing to injector removal. With injector diagnosis complete, the next step is evaluating the high-pressure fuel pump that feeds them.

How Do You Diagnose the High-Pressure Fuel Pump?

You diagnose the high-pressure fuel pump by testing output volume, inspecting for internal debris, and verifying drive timing. Each method isolates a different failure mode.

How Do You Test Pump Output Volume and Pressure?

You test pump output volume and pressure by disconnecting the high-pressure line at the rail and cranking the engine while measuring fuel discharge into a graduated container. According to Highway & Heavy Parts, a CP3 pump output test should produce a minimum of 70 ml of fuel discharge during a 10-second cranking period at 150 rpm. Output below this threshold points to worn internal pistons, failed check valves, or a compromised inlet metering valve. Always confirm low-pressure supply is adequate before condemning the high-pressure pump, since restricted feed pressure from a clogged filter mimics pump failure.

How Do You Check for Metal Debris in the Fuel System?

You check for metal debris in the fuel system by cutting open the fuel filter and inspecting the media under magnification. Fine metallic particles, particularly aluminum or steel shavings, indicate internal pump wear. Sampling fuel from the rail bleed port provides additional confirmation. If debris is present, the contamination has likely traveled downstream into injectors and the rail itself. Replacing only the pump without flushing the entire system risks immediate repeat failure. A magnetic particle trap installed upstream of the filter helps catch ferrous material before it reaches precision components.

How Do You Inspect the Pump Drive and Timing?

You inspect the pump drive and timing by verifying the gear or chain alignment marks against the manufacturer's specifications. A worn drive gear introduces lash that delays pressure buildup and reduces peak rail pressure during acceleration. Timing drift of even one or two degrees alters injection events enough to cause hard starting, reduced power, and elevated emissions. Check the drive coupling or key for shear damage, which can occur after a hydraulic lock event. Confirming correct pump-to-engine timing with a diagnostic scanner's actual-versus-desired rail pressure comparison is the most reliable validation method.

With pump condition confirmed, attention shifts to the electrical and ECM signals that govern fuel delivery.

How Do You Diagnose Electrical and ECM-Related Faults?

You diagnose electrical and ECM-related faults by systematically testing wiring harness continuity, sensor signal outputs, and ECM command signals to the fuel metering unit. The following subsections cover connector inspection, rail pressure sensor testing, and ECM command verification.

How Do You Check Wiring Harness and Connector Integrity?

You check wiring harness and connector integrity by performing visual inspections followed by electrical continuity and resistance measurements. Start by examining connectors at the injectors, rail pressure sensor, and fuel metering unit for corrosion, bent pins, or heat damage. Moisture intrusion is a common cause of intermittent faults in common rail wiring circuits.

Use a digital multimeter to measure resistance across each wire run from the ECM connector to the component connector. An open circuit or resistance above the manufacturer's specification indicates a damaged wire or poor terminal contact. According to NW Fuel Injection Service, injector resistance testing for standard DC wound coil injectors typically reveals values between 0.3 and 0.8 ohms; values outside this range indicate coil damage or internal shorts.

Chafed harnesses near exhaust manifolds and vibration points deserve particular attention, since these locations account for the majority of wiring failures in diesel engine bays.

How Do You Test the Rail Pressure Sensor Signal?

You test the rail pressure sensor signal by back-probing its connector while monitoring live data on a diagnostic scanner. The rail pressure sensor typically outputs a voltage signal between 0.5 V and 4.5 V proportional to actual fuel rail pressure. A signal stuck at 0 V or 5 V usually points to an open circuit or short in the sensor wiring.

Compare the scanner's displayed rail pressure to a known-good mechanical gauge reading at the rail. A discrepancy between the two values confirms a faulty sensor or wiring issue rather than an actual pressure problem. Check the sensor's reference voltage (usually 5 V) and ground circuit at the connector before condemning the sensor itself.

Replacing a rail pressure sensor based solely on a fault code, without verifying the actual signal, is one of the most common misdiagnoses in common rail systems. Always confirm signal behavior under cranking and idle conditions before ordering parts.

How Do You Verify ECM Commands to the Fuel Metering Unit?

You verify ECM commands to the fuel metering unit by monitoring the duty cycle or current signal the ECM sends to the metering valve. The ECM controls rail pressure by adjusting the pulse-width modulation signal to the fuel metering unit on the high-pressure pump. A scan tool with bidirectional control capability can command the metering unit to specific positions while you observe corresponding changes in rail pressure.

Measure the metering unit's coil resistance at its connector. If resistance falls within the manufacturer's specification, the solenoid is electrically sound. Then verify that the ECM is actually sending a variable command signal under different load conditions using an oscilloscope or current clamp.

A metering unit that receives correct ECM commands yet fails to regulate pressure points to a mechanical valve failure rather than an electrical fault. Confirming this distinction prevents unnecessary ECM replacements, which rank among the costliest misdiagnoses in diesel fuel system repair. With electrical faults ruled out, selecting the right diagnostic tools streamlines every remaining test.

What Diagnostic Tools Do You Need for Common Rail Systems?

The diagnostic tools you need for common rail systems include OEM-level scan tools, fuel pressure test kits, multimeters, injector return flow testers, and dedicated bench test equipment. Each tool category targets a specific failure mode, from electronic faults to mechanical wear.

• OEM-level diagnostic scanner: Reads live rail pressure data, injector correction values, and fault codes from the ECM. This is the single most important tool for common rail troubleshooting, since electronic control governs every aspect of fuel delivery.

• Fuel pressure test gauge or transducer: Measures actual rail pressure against commanded pressure to identify pump weakness, regulator faults, or internal leaks.

• Digital multimeter (DMM): Tests injector solenoid resistance, sensor signal voltages, and wiring continuity. According to NW Fuel Injection Service, standard DC wound coil injectors typically measure between 0.3 and 0.8 ohms; values outside this range indicate coil damage or internal shorts.

• Injector return flow test kit: Collects and measures fuel returning from each injector to identify worn high-pressure seals. Graduated cylinders or calibrated collection tubes make side-by-side comparison between cylinders straightforward.

• Noid light or injector pulse tester: Confirms the ECM is sending activation signals to each injector, isolating electrical faults from mechanical ones.

• Bench test stand: Allows off-engine testing of injectors and high-pressure pumps under controlled conditions, verifying spray pattern, delivery volume, and leak-off rates with precision that field tests cannot match.

• Borescope or inspection camera: Inspects internal fuel rail passages and pump cavities for metal debris or scoring without full disassembly.

For most shops, the scanner and return flow test kit handle the majority of diagnostic scenarios. Investing in quality tooling pays for itself quickly, given that misdiagnosis on these systems often leads to unnecessary part replacements costing thousands of dollars. Understanding which tool to reach for first saves both time and money during common rail diagnosis.

What Mistakes Should You Avoid When Diagnosing Common Rail?

The mistakes you should avoid when diagnosing common rail systems include skipping foundational checks, replacing parts without testing, ignoring fuel quality, and misreading scanner data. These errors lead to unnecessary costs and repeated failures.

• Replacing injectors or pumps without confirming the root cause. A contaminated fuel supply will destroy new components just as quickly. Always test fuel quality and inspect filters before swapping parts.

• Skipping the injector return flow test. Healthy common rail injectors typically return less than 20cc of fuel per minute at idle, according to Diesel World Mag. Ignoring this test means missing internal seal wear that scanner data alone cannot reveal.

• Relying only on diagnostic trouble codes. DTCs point to a circuit or parameter range, not the failed component itself. A rail pressure code could trace back to the pump, regulator, sensor, or even a wiring fault.

• Overlooking fuel contamination as the primary failure driver. Water, micro-fine particles, and improper storage cause the majority of common rail damage. Diagnosing downstream components without checking upstream fuel condition wastes time and money.

• Misinterpreting injector correction values. High correction values flag compensation the ECM is applying, but they do not always mean the injector is faulty. Fuel supply restrictions or rail pressure issues can skew these readings.

• Neglecting wiring and connector inspections. Corroded pins or chafed harnesses produce intermittent faults that mimic mechanical failures, sending technicians down the wrong diagnostic path.

From a practical standpoint, the most expensive common rail diagnostic mistake is treating symptoms instead of systems. Testing fuel quality, verifying pressure at the rail, and checking electrical integrity before ordering parts saves both time and significant repair costs. Pairing diagnostic accuracy with consistent fuel injector maintenance extends component life well beyond minimum service intervals. With diagnostic fundamentals covered, choosing the right replacement parts ensures a lasting repair.

How Do You Fix Common Rail Problems With the Right Parts?

You fix common rail problems with the right parts by sourcing quality-matched injectors, high-pressure pumps, rail pressure sensors, and fuel metering units that meet OEM specifications. Individual common rail fuel injector repair or replacement typically costs between $350 and $1,500 per unit, with parts alone ranging from $150 to $800.

Can Goldfarb & Associates Supply Common Rail Components?

Yes, Goldfarb & Associates can supply common rail components. The company maintains an inventory of over 20,000 unique diesel part numbers, including fuel injectors, injection pumps, nozzles, plungers and barrels, ECMs, and delivery valves. Every part undergoes hand inspection against a full quality checklist before shipping.

Goldfarb & Associates stocks new, used, and remanufactured options for a wide range of diesel engine manufacturers. Orders placed Monday through Friday before 3:30 PM EST ship the same day. Because common rail components operate under extreme precision tolerances, sourcing parts that meet ASTM D975 fuel compatibility standards and OEM specifications is essential for long-term reliability. Goldfarb & Associates provides knowledgeable staff who can help identify the correct part number for any application, from construction and agricultural equipment to marine and industrial diesel engines.

What Are the Key Takeaways About Diagnosing Common Rail Problems?

The key takeaways about diagnosing common rail problems center on systematic testing, root cause identification, and quality replacement parts:

• Start every diagnosis by scanning for fault codes and comparing live rail pressure data against manufacturer specifications.

• Perform injector return flow tests and cylinder cut-out tests before replacing any injector.

• Test high-pressure pump output volume during cranking to confirm pump health before condemning it.

• Inspect fuel samples for water, metal debris, and contamination, since fuel quality drives the majority of common rail failures.

• Check wiring harnesses, connectors, and sensor signals before assuming mechanical faults.

• Avoid swapping parts without data; misdiagnosis wastes money and can introduce secondary damage.

Accurate diagnosis saves significant repair costs. Pairing methodical troubleshooting with properly sourced components from a trusted supplier like Goldfarb & Associates ensures repairs hold up under the demanding pressures these systems generate.
