What Are Freeze Plugs and Why Do They Fail in Diesel Engines?

A freeze plug (also called a core plug) is a metal disc pressed into the engine block to seal holes left over from the sand casting process. Despite the name, these plugs were never designed as freeze protection; their purpose is structural, and they frequently fail to eject before a block cracks under freezing conditions.

This guide covers freeze plug fundamentals and types, the causes and symptoms of failure, step-by-step diagnosis and replacement, engine-specific considerations and costs, and long-term prevention strategies.

Freeze plugs come in dish-style, cup-style, rubber expansion, brass, and steel variants, each suited to different block materials and operating environments. Low carbon steel plugs conform to ASTM A109 standards for cast iron blocks, while stainless steel versions reduce galling in aluminum applications and brass serves marine conditions where saltwater corrosion is a concern.

Plugs fail through five distinct mechanisms: coolant freezing that forces expansion against the bore, internal corrosion from depleted inhibitors, electrolysis from stray electrical currents, neglected coolant maintenance that lets pH drift below safe ranges, and improper installation that leaves uneven seating or missing sealant. Recognizing symptoms early (sweet-smelling leaks, crusty deposits, or persistent overheating) prevents cascading damage to head gaskets and cylinder heads.

Replacement difficulty varies dramatically by engine layout. Side-mounted plugs on inline diesels are straightforward, while rear plugs behind the flywheel require roughly 4.5 hours of transmission removal labor before the plug itself can be accessed. Consistent coolant testing and correct plug material selection remain the most cost-effective defenses against premature failure.

What Is a Freeze Plug and What Does It Do?

A freeze plug is a metal disc pressed into the engine block to seal holes left from the casting process. The sections below clarify naming conventions and typical plug locations.

How Does a Freeze Plug Differ From a Core Plug?

A freeze plug differs from a core plug only in name. According to Wikipedia, the term "freeze plug" originated from the mistaken belief that these components protect the engine block from freezing, whereas their original manufacturing purpose was to plug the sand exit ports after casting. "Core plug" is the technically accurate term, and "Welch plug" refers to a specific dome-shaped design.

Despite the naming confusion, all three terms describe the same component: a metal disc that seals sand casting core holes in water-cooled internal combustion engines. Master mechanics confirm that core plugs are primarily designed to seal casting holes, not to serve as a reliable safety mechanism against freezing. In practice, they frequently fail to eject before the block cracks.

Material selection varies by application:

• Low carbon steel plugs (SAE 1008/1010) conform to ASTM A109 standards and suit most cast iron blocks.

• 304 stainless steel plugs adhere to ASTM A313 specifications and are favored for aluminum blocks due to reduced scoring and superior spring-back sealing.

• Brass and aluminum plugs serve marine applications because of their inherent corrosion resistance.

Understanding that "freeze plug" is a misnomer helps technicians focus on what actually matters: proper material selection and correct installation for the specific engine application.

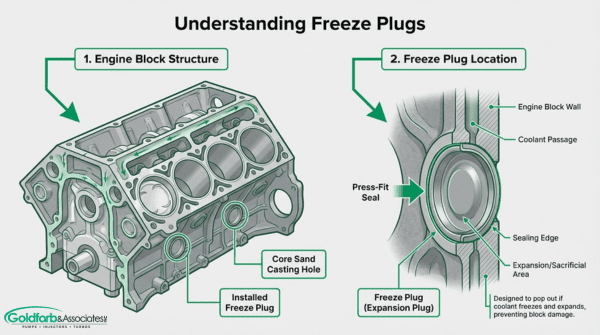

Where Are Freeze Plugs Located on an Engine Block?

Freeze plugs are located along the sides of the engine block, pressed into the openings of the water jacket casting channels. Most engines have plugs on both the left and right sides of the block, with additional plugs positioned at the rear near the flywheel or flexplate housing.

Rear freeze plugs sit between the engine and transmission, making them the most difficult to access. Replacing a rear plug typically requires transmission removal, a process that amounts to roughly 4.5 hours of labor for the removal and reinstallation alone, according to YourMechanic, plus an additional hour for the plug itself. Side-mounted plugs, by contrast, are usually reachable once accessories and exhaust components are cleared.

Inline diesel engines generally position plugs in a single row along each side of the block, while V-configuration diesels place them within the valley and along both outer banks. Knowing exact plug locations before starting any cooling system repair saves significant time and prevents unnecessary disassembly.

What Are the Common Types of Freeze Plugs?

The common types of freeze plugs are dish-style, cup-style, rubber expansion, brass, and steel. Each type differs in shape, material, and installation method.

Dish-Style Freeze Plugs

Dish-style freeze plugs are thin, concave metal discs that seal casting holes through lateral expansion. According to Wikipedia, a Welch plug (the original dish-style design) seals a hole by expanding laterally when its convex side is struck with a hammer during installation. This dome-shaped profile creates an interference fit against the bore walls. Dish-style plugs remain the most traditional design found in cast iron engine blocks. Their thin profile makes them lightweight, though it also leaves them more vulnerable to corrosion over time compared to thicker alternatives. For engines exposed to aggressive coolant conditions, pairing dish plugs with consistent coolant maintenance is essential.

Cup-Style Freeze Plugs

Cup-style freeze plugs are cylindrical, flanged plugs that press directly into the casting bore. Unlike dish-style designs that expand outward, cup plugs rely on a tight friction fit between the outer wall and the bore surface. The flanged lip sits flush against the block, providing a visible reference point during installation. This design distributes contact pressure more evenly around the bore circumference, which generally improves sealing consistency. Cup-style plugs are a popular upgrade over dish plugs in heavy-duty diesel applications because their thicker walls resist corrosion longer. Proper bore preparation and sealant application remain critical for either style to hold reliably.

Rubber Expansion Freeze Plugs

Rubber expansion freeze plugs are mechanical assemblies that use a rubber grommet compressed between two metal plates. Tightening a center bolt squeezes the rubber outward against the bore wall, creating a seal without requiring a press fit or hammer installation. This makes them especially useful for temporary repairs or hard-to-reach locations where conventional plugs cannot be driven in with tools. They are not typically recommended as permanent solutions in high-vibration diesel engines, since sustained thermal cycling can degrade the rubber over time. For fleet operators needing a field-ready fix, however, rubber expansion plugs offer unmatched installation convenience.

Brass Freeze Plugs

Brass freeze plugs are corrosion-resistant plugs manufactured primarily for marine and specialty applications. According to M.D. Hubbard Spring Company, brass and aluminum core plugs are typically manufactured for marine applications, primarily owing to their inherent corrosion resistance in such environments. Brass resists saltwater and chemical degradation far better than plain carbon steel. In diesel engines that operate near coastal or high-humidity conditions, brass plugs significantly reduce the risk of galvanic corrosion. Their higher material cost is offset by longer service life in corrosive environments, making them a practical long-term investment for marine diesel operators.

Steel Freeze Plugs

Steel freeze plugs are the most widely used type across automotive and diesel engine applications. Low carbon steel plugs made from SAE 1008/1010 conform to ASTM A109 standards, while 304 stainless steel versions adhere to ASTM A313 specifications, according to M.D. Hubbard Spring Company. Standard carbon steel plugs are affordable and readily available, though they are susceptible to internal corrosion when coolant chemistry deteriorates. Stainless steel variants offer superior corrosion resistance and better spring-back properties, particularly in aluminum engine blocks where reduced galling during installation improves the seal.

With plug type selected, understanding why freeze plugs fail helps prevent premature replacement.

Why Do Freeze Plugs Fail?

Freeze plugs fail from coolant freezing, internal corrosion, electrolysis damage, neglected maintenance, and improper installation. Each cause attacks the plug differently, but all lead to the same outcome: coolant leaks and potential engine block damage.

Why Do Freeze Plugs Fail From Coolant Freezing?

Freeze plugs fail from coolant freezing when insufficient antifreeze concentration allows the coolant mixture to solidify inside the engine block's water jackets. Water expands approximately 9% when it freezes, and that expansion exerts tremendous outward force against the block walls and every plug seated in them. The plug, being the thinnest structural point, gets pushed outward or deformed.

Failed freeze plugs from this cause often manifest as coolant leaks identifiable by a distinct sweet odor, according to JB Tools. Visual inspections may also reveal white or green crusty deposits around the plug's perimeter. For diesel engines operating in cold climates, maintaining the correct ethylene glycol-to-water ratio is the single most effective defense against this type of failure.

Why Do Freeze Plugs Fail From Internal Corrosion?

Freeze plugs fail from internal corrosion when degraded coolant or incompatible metals accelerate material breakdown from the inside out. Low-carbon steel plugs are particularly vulnerable because acidic or contaminated coolant eats through the thin metal wall, creating pinhole leaks that gradually widen.

According to Associated Pipe Line Contractors, galvanic corrosion between dissimilar metals can produce steel corrosion rates ranging from less than 0.2 microns per year in mild conditions to over 20 microns per year in aggressive environments. When a steel freeze plug sits in an aluminum block with depleted corrosion inhibitors, that galvanic reaction intensifies. Corrosion-related failure is often the most common cause in engines with high mileage and infrequent coolant changes.

Why Do Freeze Plugs Fail From Electrolysis Damage?

Freeze plugs fail from electrolysis damage when stray electrical currents pass through the engine coolant and erode metal surfaces. Poor engine grounds, faulty accessories, or aftermarket electrical components can introduce voltage into the cooling system. Even small currents, sometimes under one volt, accelerate pitting on the plug's surface.

This pitting concentrates at the plug's edges where the seal meets the block bore. Over time, the material thins unevenly and the seal weakens. Testing for electrolysis requires placing a multimeter's positive lead in the coolant and grounding the negative lead to the battery. Any reading above 0.3 volts suggests active electrical erosion that will shorten freeze plug life considerably.

Why Do Freeze Plugs Fail From Neglected Coolant Maintenance?

Freeze plugs fail from neglected coolant maintenance when corrosion inhibitors deplete and coolant chemistry drifts outside safe parameters. Conventional coolants should maintain a pH between 8.0 and 11.0, while Extended Life Coolants require 7.0 to 9.5. Once pH drops below these ranges, the coolant becomes acidic and attacks every metal surface it contacts.

Heavy Duty Journal's fleet maintenance guidelines recommend bi-annual coolant condition testing using refractometers for concentration and test strips for pH and freeze point protection. Skipping these checks allows contaminant buildup, inhibitor depletion, and scale formation to progress undetected. For fleet operators running diesel engines year-round, a scheduled coolant analysis program is the most cost-effective way to prevent plug failures before they cause downtime.

Why Do Freeze Plugs Fail From Improper Installation?

Freeze plugs fail from improper installation when the plug is seated unevenly, undersized for the bore, or installed without proper sealant. A plug that sits crooked in the bore creates an uneven contact surface, leaving gaps where coolant seeps through under pressure. Using the wrong diameter plug, even by a fraction of a millimeter, prevents the interference fit that holds the plug in place.

Common installation errors include:

• Striking the plug off-center, which tilts it in the bore.

• Failing to clean corrosion and debris from the bore surface before seating.

• Omitting sealant on the plug's outer edge.

• Over-driving the plug past its optimal expansion point.

Each of these mistakes compromises the seal from the moment the engine first pressurizes. Proper technique, combined with the correct plug type, eliminates installation-related failures almost entirely. With these failure causes identified, recognizing the early warning signs helps catch problems before they escalate.

What Are the Symptoms of a Failing Freeze Plug?

The symptoms of a failing freeze plug include coolant leaks near the engine block, persistent engine overheating, and visible rust or mineral deposits around the plug's perimeter. Each symptom points to a different stage of deterioration.

What Does a Coolant Leak Near the Engine Block Indicate?

A coolant leak near the engine block indicates that a freeze plug has lost its seal, allowing pressurized coolant to escape through the corroded or displaced plug. These leaks often produce a distinct sweet odor and leave white or green crusty deposits visible along the plug's edge.

Corrosion is the most common underlying cause. According to a study published in MDPI Coatings, a chloride concentration exceeding 200 ppm in engine coolant at 90 °C leads to increased pit depths and density of corrosive attacks on cast iron samples. Once pitting perforates the plug's thin metal wall, coolant weeps steadily, even at idle. Any unexplained coolant loss near the lower sides of the block warrants immediate inspection of every freeze plug in that region.

Can a Bad Freeze Plug Cause Engine Overheating?

Yes, a bad freeze plug can cause engine overheating. When a plug leaks, coolant volume in the cooling system drops. Lower coolant levels reduce the system's ability to absorb and transfer heat away from the cylinder walls and combustion chambers.

Even a slow, barely visible leak compounds over time. The cooling system operates under pressure to raise the coolant's boiling point; a compromised plug breaks that pressurized seal, which lowers the effective boiling threshold. Chronic low-coolant conditions accelerate head gasket stress and can warp cylinder heads. If the temperature gauge climbs persistently despite a full reservoir, a leaking freeze plug hidden behind a motor mount or exhaust manifold is a likely culprit worth investigating before more expensive components sustain damage.

What Does Rust or Mineral Buildup Around a Plug Mean?

Rust or mineral buildup around a plug means active corrosion is degrading the seal between the freeze plug and the engine block bore. White, green, or reddish-brown crusty deposits form as coolant seeps past a weakened plug and evaporates on the exterior surface, leaving dissolved minerals and corrosion byproducts behind.

This visible buildup is rarely cosmetic. It signals that the coolant's corrosion inhibitors have depleted, allowing electrochemical reactions to attack the plug material from the inside out. In most cases, the plug has already thinned significantly by the time external deposits become noticeable. Catching these deposits early, before a full breach occurs, can prevent roadside failures and far more costly cooling system repairs down the line.

Recognizing these symptoms early simplifies diagnosis and guides the next repair steps.

How Do You Diagnose a Leaking Freeze Plug?

You diagnose a leaking freeze plug through a combination of sensory checks, visual inspection, and pressure testing. The process involves identifying telltale signs in the coolant system and narrowing the leak source to a specific plug.

Start with these diagnostic steps:

1. Check for a sweet odor near the engine block. Ethylene glycol coolant produces a distinct sweet smell when it escapes. This is often the first clue before any visible puddle forms.

2. Inspect each plug's perimeter for crusty deposits. According to JB Tools, failed freeze plugs often manifest as coolant leaks identifiable by a distinct sweet odor, and visual inspections may reveal white or green crusty deposits around the plug's perimeter.

3. Look for active drips or wet spots along the block. Coolant traces on the lower block surface, especially between the engine and transmission, point toward a specific plug location.

4. Perform a cooling system pressure test. A hand pump pressurizes the system to operating levels, forcing coolant through any compromised seal. This isolates slow leaks that only appear under pressure.

5. Use a mirror and flashlight for rear plugs. Plugs behind the flywheel or near accessories are difficult to see directly; angled inspection tools reveal hidden corrosion or seepage.

6. Add UV dye to the coolant if the source remains unclear. Running the engine briefly, then scanning with a UV light, highlights the exact leak path with fluorescent traces.

Corrosion-related failures often start small, so a plug may weep intermittently before failing completely. Catching these early signs prevents the cascading damage of coolant loss, overheating, and potential block warping. Once you have confirmed which plug is leaking, the next step is gathering the right tools and materials for replacement.

How Do You Replace a Freeze Plug Step by Step?

You replace a freeze plug by gathering the correct tools, removing the damaged plug, preparing the bore, installing the new plug with sealant, and verifying the seal. The following H3s cover each stage in sequence.

What Tools and Materials Do You Need for Replacement?

The tools and materials you need for replacement include both removal instruments and installation supplies. Having everything staged before starting prevents delays once the cooling system is drained.

• Punch and ball-peen hammer for driving out the old plug

• Scotch-Brite pad or emery cloth for cleaning the bore surface

• Freeze plug driver or socket matched to the plug diameter

• Permatex Form-A-Gasket #1 or equivalent non-hardening sealant

• Replacement freeze plug in the correct size and material (steel, stainless steel, or brass)

• Drain pan, safety glasses, and coolant for refilling

Matching the plug material to the block material matters. Stainless steel plugs reduce scoring and galling in aluminum blocks, while brass plugs suit marine environments where saltwater corrosion is a concern.

How Do You Remove a Damaged Freeze Plug?

You remove a damaged freeze plug by punching it inward and then extracting it from the bore. According to NAPA's technical guidance, expert technicians advise using a punch and hammer to drive one edge of the old plug inward, rotating it so pliers or a screwdriver can pry it out.

Once the plug is extracted, thoroughly clean the bore. A Scotch-Brite pad removes rust, scale, and old sealant residue from the seating surface. Any pitting or debris left behind will compromise the new plug's seal. Inspect the bore for deep corrosion; if the metal is severely degraded, professional machining or block repair may be necessary before proceeding.

How Do You Install a New Freeze Plug Properly?

You install a new freeze plug properly by applying sealant to the bore, positioning the plug squarely, and driving it in with a correctly sized driver. Apply a thin, even coat of non-hardening sealant around the outer edge of the plug and the bore surface.

1. Align the plug flush against the bore opening.

2. Place the freeze plug driver or appropriately sized socket against the center of the plug.

3. Strike the driver with firm, controlled hammer blows until the plug seats evenly, slightly recessed below the block surface.

Uneven seating is the most common installation mistake. If the plug cocks to one side during driving, it will leak regardless of sealant quality. Patience with alignment pays off more than force.

How Do You Verify the Seal After Installation?

You verify the seal after installation by pressurizing the cooling system and inspecting for leaks. Refill the system with the correct coolant mixture, then use a cooling system pressure tester to bring the system to its rated cap pressure.

Hold pressure for 10 to 15 minutes while visually inspecting the new plug's perimeter. Any seepage, bubbling, or pressure drop indicates an incomplete seal. Also check for the sweet odor of coolant or the appearance of white or green crusty deposits, both of which signal active leakage. If the plug fails the pressure test, remove it and re-examine the bore surface before attempting reinstallation.

With the replacement confirmed leak-free, understanding how this process varies across engine configurations ensures the right approach for every block layout.

How Does Freeze Plug Replacement Differ by Engine Type?

Freeze plug replacement differs by engine type based on plug accessibility, surrounding component clearance, and whether major assemblies must be removed. The subsections below cover inline diesels, V-configuration diesels, and rear plugs behind the flywheel.

How Do You Replace Freeze Plugs on Inline Diesel Engines?

You replace freeze plugs on inline diesel engines by working along the single, exposed side of the block where plugs are arranged in a linear row. This layout provides the most straightforward access of any engine configuration, since no opposing cylinder bank obstructs the plugs.

The general process follows these steps:

1. Drain the cooling system completely.

2. Remove any brackets, hoses, or accessories blocking the plug area.

3. Drive a punch into the old plug's center, rotate it sideways, and extract it with pliers.

4. Clean the bore thoroughly with an abrasive pad to remove corrosion and old sealant.

5. Apply anaerobic sealant to the new plug's outer edge and seat it squarely using a properly sized driver.

Inline engines rarely require engine removal for side-mounted plugs, making them the least labor-intensive configuration for freeze plug service.

How Do You Replace Freeze Plugs on V-Configuration Diesels?

You replace freeze plugs on V-configuration diesels by addressing plugs on both outer block surfaces and, critically, any plugs located in the valley between the cylinder banks. Valley plugs sit beneath the intake manifold or valley cover, requiring significant disassembly before they become visible.

Key challenges with V-configuration engines include:

• Limited clearance on outer banks: Frame rails, exhaust manifolds, and steering components may restrict tool access on one or both sides.

• Valley plug removal: The intake manifold, wiring harnesses, and fuel system components must come off to reach plugs nestled between the banks.

• Uneven corrosion patterns: The valley area traps moisture and debris, often causing valley plugs to corrode faster than external ones.

When one valley plug fails, replacing all plugs in the valley during the same service prevents repeat teardowns. For most diesel technicians, V-engine freeze plug jobs demand roughly twice the disassembly time compared to inline layouts.

How Do You Replace Rear Freeze Plugs Behind the Flywheel?

You replace rear freeze plugs behind the flywheel by separating the transmission or removing the engine from the vehicle, since the flywheel housing completely blocks direct access. According to YourMechanic, the labor required to remove and reinstall a transmission for rear plug access typically amounts to 4.5 hours, with an additional 1.0 hour needed for replacing the plug itself.

Because of this labor intensity, experienced technicians recommend the following approach:

• Replace all rear freeze plugs during any service that already involves transmission removal, such as clutch replacement or rear main seal work.

• Inspect every accessible plug while the drivetrain is separated, replacing any that show pitting or corrosion.

• Use stainless steel or brass plugs in the rear position to maximize service life and avoid premature repeat removal.

Rear plug failure on a V-configuration diesel compounds the difficulty further, as both the transmission and valley components may need to come apart during the same repair. Understanding these engine-specific differences helps determine whether freeze plug replacement is a straightforward job or one requiring careful planning around major component removal.

How Much Does Freeze Plug Replacement Cost?

Freeze plug replacement cost depends on whether you handle the job yourself or hire a professional. DIY parts are inexpensive, but labor-intensive professional work can push costs significantly higher.

How Much Does a DIY Freeze Plug Replacement Cost?

A DIY freeze plug replacement costs between $5 and $30 in parts for most diesel engines. Individual steel or brass plugs typically run $2 to $8 each, while a complete plug kit ranges from $15 to $30. Sealant, a Scotch-Brite pad, and a freeze plug installation tool add another $10 to $25. The real savings come from eliminating labor charges, which represent the bulk of professional replacement costs. However, DIY replacement is only practical when plugs sit in accessible locations along the sides of the block. Rear plugs sandwiched between the engine and transmission require component removal that most home mechanics cannot safely perform.

How Much Does Professional Freeze Plug Replacement Cost?

Professional freeze plug replacement costs between $150 and $800 or more, depending primarily on plug location. Accessible side plugs on inline diesel engines fall at the lower end, since a technician can reach them without major disassembly. Rear freeze plugs behind the flywheel or transmission drive costs substantially higher. According to YourMechanic, removing and reinstalling a transmission to access rear plugs typically requires 4.5 hours of labor, plus an additional 1.0 hour for the plug replacement itself. At shop rates of $100 to $150 per hour, transmission-related access alone can exceed $500. For fleet operators managing multiple diesel engines, budgeting for professional replacement of hard-to-reach plugs is essential during planned downtime rather than emergency repairs.

Knowing what replacement costs look like makes preventive maintenance strategies even more valuable.

How Can You Prevent Freeze Plug Failure?

You can prevent freeze plug failure by maintaining proper coolant chemistry, using compatible plug materials, and following a routine inspection schedule.

• Maintain correct coolant concentration. A 50/50 mix of antifreeze and distilled water protects against freezing and corrosion. Never run straight water in the cooling system, even in warm climates.

• Test coolant condition regularly. According to heavy-duty fleet maintenance guidelines published by Heavy Duty Journal, bi-annual coolant condition testing using refractometers for concentration and test strips for pH and freeze point protection is recommended.

• Keep coolant pH within specification. Conventional coolants should hold a pH between 8.0 and 11.0, while extended life coolants require 7.0 to 9.5. Depleted inhibitors accelerate corrosion on steel plugs.

• Choose the right plug material. Stainless steel plugs resist galvanic corrosion better than standard carbon steel in mixed-metal cooling systems. Brass plugs suit marine applications where saltwater exposure is a concern.

• Inspect plugs during major service intervals. Look for white or green crusty deposits around plug edges, which signal early-stage corrosion or seepage. Catching degradation early avoids costly rear-plug replacements that require transmission removal.

• Flush the cooling system on schedule. Old coolant accumulates contaminants, including chlorides that pit cast iron surfaces at elevated temperatures. Scheduled flushes remove these deposits before they compromise plug integrity.

• Ensure proper installation on replacement plugs. A plug seated unevenly or without sealant will leak regardless of coolant quality. Clean the bore thoroughly and apply gasket sealant before pressing each plug into place.

Consistent coolant maintenance is the single most effective strategy for extending freeze plug life. Most failures trace back to neglected fluid, not defective parts. With freeze plug health secured, the broader cooling system can better protect every diesel engine component it serves.

How Does Freeze Plug Health Relate to Diesel Engine Parts?

Freeze plug health relates directly to diesel engine parts because corroded or failing plugs compromise the entire cooling system, which protects critical injection components and engine block integrity. Below, learn how Goldfarb & Associates supports cooling system reliability and review the key takeaways from this guide.

Can Goldfarb's Diesel Engine Components Help Maintain Cooling System Integrity?

Yes, Goldfarb & Associates can help maintain cooling system integrity by supplying quality diesel engine components that keep the broader powertrain running reliably. When freeze plugs deteriorate, contaminated coolant circulates through the engine and accelerates wear on surrounding parts. According to the U.S. EPA, waste antifreeze is classified as regulated waste because it accumulates hazardous heavy metals, such as lead, cadmium, and chromium, during circulation through the cooling system.

Maintaining cooling system health protects more than just freeze plugs. It safeguards fuel injectors, injection pumps, and turbochargers from heat-related damage. Goldfarb & Associates stocks over 20,000 unique diesel part numbers, including new, used, and remanufactured injectors, pumps, and turbochargers, so replacement components are available when cooling system neglect has already caused collateral damage.

What Are the Key Takeaways About Freeze Plug Failure and Replacement?

The key takeaways about freeze plug failure and replacement center on prevention, early diagnosis, and proper technique:

• Freeze plugs seal casting holes in the engine block; they are not reliable freeze protection devices.

• Corrosion, coolant neglect, electrolysis, and improper installation are the primary failure causes.

• Symptoms include sweet-smelling coolant leaks, white or green crusty deposits, and unexplained overheating.

• Replacement requires bore cleaning, correct plug sizing, and proper sealant application to ensure a lasting seal.

• Rear freeze plugs behind the flywheel demand significantly more labor due to transmission removal.

• Bi-annual coolant testing with refractometers and pH strips prevents most corrosion-driven failures.

Proactive cooling system care is the most cost-effective strategy for avoiding freeze plug failure. When replacement parts are needed, Goldfarb & Associates can help source quality diesel components to restore engine reliability.
