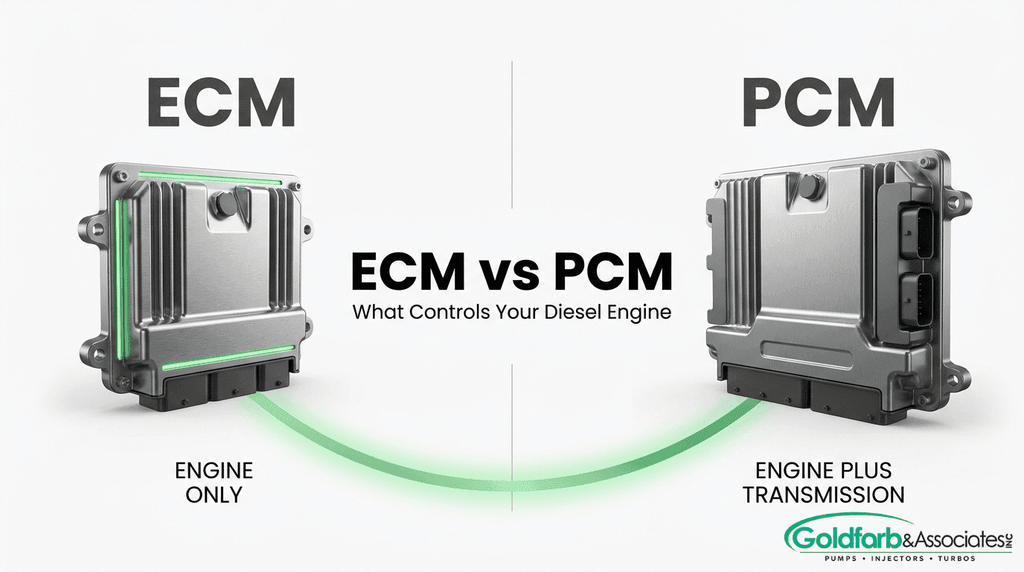

ECM vs PCM Difference: Key Differences

An Engine Control Module (ECM) is a dedicated onboard computer that manages engine-specific functions, while a Powertrain Control Module (PCM) is an integrated unit that controls both the engine and the transmission. A vehicle equipped with a PCM typically does not have a separate ECM or Transmission Control Module.

This guide covers how each module is defined and scoped, their architectural and communication differences, failure symptoms and diagnostics, diesel-specific considerations, and replacement and reprogramming options.

The ECM focuses exclusively on engine parameters like fuel injection timing, ignition control, air-fuel ratios, and emissions monitoring. The PCM handles all of those same functions while also governing automatic transmission shift points, torque converter engagement, and cruise control integration.

Internally, both modules share core components such as a microcontroller, memory, and I/O ports. However, the PCM requires expanded processing power to manage engine and transmission logic simultaneously, resulting in more complex circuit design. Both communicate over CAN bus networks using protocols like SAE J1939 for heavy-duty vehicles and OBD-II for external diagnostics.

ECM failure produces engine-only symptoms like stalling, misfires, and poor fuel economy. PCM failure adds transmission irregularities such as harsh or erratic shifting alongside those engine issues. Diesel engines almost exclusively use standalone ECMs to manage high-pressure fuel injection, turbo boost, and DPF regeneration.

Replacement costs differ substantially; diesel ECMs can run $4,000 to $6,500, while PCM replacements typically fall between $400 and $1,500. Reprogramming offers a lower-cost alternative when the issue is software-related, though EPA regulations restrict emissions-related modifications. Proper diagnosis with scan tools, multimeters, and oscilloscopes prevents unnecessary module swaps.

What Is an Engine Control Module?

An engine control module is a dedicated onboard computer that monitors and manages core engine functions. It collects real-time data from sensors, adjusts operating parameters, and records fault codes when problems arise. The sections below explain what an ECM does, how it works, and why it matters for engine performance.

According to Cummins Inc., the ECM acts like a minicomputer in the heart of an engine, monitoring and collecting data from sensors to optimize engine performance, adjust critical parameters like fuel consumption and ignition timing, and conduct diagnostics by recording fault codes. The module receives input from sensors measuring variables such as coolant temperature, oxygen levels, and throttle position. Based on that data, it calculates the ideal air-fuel mixture, controls ignition timing, and regulates idle speed in real time.

Because the ECM focuses exclusively on the engine, it does not govern transmission behavior or other powertrain systems. This narrow scope allows it to process engine-related sensor data with high precision. For diesel applications in particular, that precision is critical; the ECM must manage high-pressure fuel injection, turbo boost pressure, and emissions controls simultaneously. Understanding this dedicated role is the first step in grasping how an ECM differs from the broader powertrain control module covered next.

What Is a Powertrain Control Module?

A Powertrain Control Module (PCM) is an integrated computer that manages both the engine and the transmission in a single unit. According to HP Tuners, the PCM combines the functions of an Engine Control Module (ECM) and a Transmission Control Module (TCM), overseeing all moving parts in the powertrain. Because it consolidates engine and transmission control, a vehicle equipped with a PCM typically does not have a separate ECM or TCM. This unified design allows the PCM to coordinate shift points, fuel delivery, and ignition timing simultaneously, optimizing overall drivetrain efficiency. For anyone comparing control modules, understanding this combined scope is what sets the PCM apart from engine-only controllers.

What Does an ECM Control Versus a PCM?

An ECM controls engine-specific functions, while a PCM controls both the engine and the transmission as a single integrated unit. The following subsections break down the specific systems each module manages.

What Systems Does an ECM Manage?

An ECM manages engine-dedicated systems. According to Cummins Inc., the Electronic Control Module acts like a minicomputer in the heart of an engine, monitoring and collecting data from sensors to optimize engine performance, adjust critical parameters like fuel consumption and ignition timing, and conduct diagnostics by recording fault codes.

The core systems an ECM oversees include:

• Fuel injection timing and duration

• Ignition timing adjustments

• Air-fuel mixture ratios via oxygen sensor feedback

• Idle speed regulation

• Emissions control system monitoring

• Diagnostic Trouble Code recording and storage

Because the ECM focuses exclusively on the engine, it does not send shift commands or manage torque converter lockup. This narrower scope makes ECMs common in heavy-duty diesel applications where the transmission operates under a separate controller.

What Systems Does a PCM Manage?

A PCM manages both engine and transmission systems within a single module. As HP Tuners explains, the Powertrain Control Module handles all the moving parts in an engine, similar to an ECM, but it also typically manages the transmission, effectively combining ECM and Transmission Control Module functions.

Key systems under PCM authority include:

• All engine functions an ECM handles (fuel delivery, ignition, emissions)

• Automatic transmission shift points and shift quality

• Torque converter clutch engagement

• Cruise control integration with powertrain response

This consolidated design means a vehicle equipped with a PCM typically does not require a separate ECM or TCM. For most passenger vehicles and light-duty trucks, the PCM's integrated approach simplifies wiring, reduces module count, and allows tighter coordination between engine output and transmission behavior.

Understanding which module your vehicle uses determines the correct diagnostic approach and replacement part when issues arise.

How Do ECM and PCM Differ in Architecture and Design?

ECM and PCM differ in architecture and design primarily through scope of integration and hardware complexity. The ECM focuses on engine-only control, while the PCM consolidates engine and transmission management into a single unit.

Both modules share fundamental internal components, including a microcontroller, memory (ROM and RAM), I/O ports, an Analog-to-Digital Converter, a voltage regulator, a clock, and a power capacitor. According to Cummins Inc., these core components remain similar across diesel, hydrogen ICE, battery electric, and fuel cell electric vehicle platforms. What separates the two modules is how broadly each unit's processor and memory architecture must scale.

An ECM typically dedicates its processing resources exclusively to engine parameters. The Cummins CM2350 ECM, for example, uses an NXP microprocessor where memory size and algorithm complexity are calibrated specifically for diesel engine management. A PCM, by contrast, requires expanded processing power and memory to handle both engine and transmission logic simultaneously. The Ford EEC-V PCM was notably the first ECU to utilize the Freescale PowerPC architecture, reflecting the greater computational demands of unified powertrain control.

This architectural distinction matters for diagnostics and replacement. Because a PCM integrates what would otherwise be separate ECM and TCM hardware, its internal circuit design is more complex. Failure in one subsystem can affect the other, and reprogramming requires calibration files covering both engine and transmission maps. An ECM's narrower scope simplifies both troubleshooting and reflashing, since only engine-specific parameters need attention.

For fleet operators and diesel technicians, understanding this design difference directly impacts parts sourcing decisions and repair timelines. The next section covers how these modules communicate with surrounding vehicle systems through standardized protocols.

How Do ECM and PCM Communicate With Other Modules?

ECM and PCM communicate with other modules through standardized digital protocols carried over shared vehicle networks. The primary methods include CAN bus messaging, the SAE J1939 protocol for heavy-duty applications, and OBD-II for external diagnostics.

The ECM typically communicates across a narrower set of engine-related modules, while the PCM exchanges data with both engine and transmission control systems simultaneously. According to Vector Informatik, the SAE J1939 protocol, a collection of standards defining how ECUs exchange data in heavy-duty vehicles, is built upon the Controller Area Network (CAN) physical layer defined by ISO 11898-1 and ISO 11898-2.

Each CAN bus message consists of an identifier representing the message's priority and up to eight data bytes, along with CRC and acknowledge fields for error checking. This compact frame structure allows dozens of modules to share a single twisted-pair wire without signal collisions, keeping real-time communication fast and reliable.

The OBD-II standard adds another communication layer by specifying a protocol between the vehicle's onboard modules and external diagnostic devices. Through the OBD port, technicians retrieve Diagnostic Trouble Codes stored by the ECM or PCM, making fault isolation possible without disassembly.

For those working on diesel platforms, understanding how these protocols interact matters more than it might seem at first glance. A communication fault on the CAN bus can mimic symptoms of a failed ECM or PCM, leading to unnecessary module replacements. Verifying bus integrity before swapping components is one of the most cost-effective diagnostic steps available.

With communication protocols clarified, recognizing whether a vehicle uses one or both modules becomes the next consideration.

Can a Vehicle Have Both an ECM and a PCM?

A vehicle can have both an ECM and a PCM, but this configuration is uncommon in modern automotive design. The answer depends on the vehicle's architecture and the manufacturer's approach to powertrain control.

Most modern vehicles use a single PCM that combines the functions of an ECM and a Transmission Control Module (TCM) into one integrated unit. According to ARES Technologies, a vehicle with a PCM typically does not have a separate ECM or TCM, because the PCM already oversees the full powertrain as a more integrated controller.

However, some vehicles, particularly heavy-duty diesel trucks, do use a dedicated ECM alongside a separate TCM rather than consolidating everything into a single PCM. In these setups, the engine control module handles fuel injection, ignition timing, and emissions management independently, while the transmission module operates on its own. This distributed approach is especially common in commercial and industrial applications where engine and transmission systems come from different manufacturers and require independent calibration.

The evolution of automotive electrical/electronic architectures has driven the trend toward consolidation. Early systems relied on multiple standalone ECUs communicating over separate networks, but modern CAN bus architectures allow a single PCM to manage both engine and transmission functions efficiently. For most passenger vehicles built in the last two decades, a unified PCM is the standard configuration.

In practice, knowing whether your vehicle uses a standalone ECM, a PCM, or both matters most during diagnostics and replacement. Ordering the wrong module type can lead to compatibility issues and failed installations. Understanding your vehicle's specific control module layout before sourcing parts ensures a smoother repair process.

What Are the Symptoms of a Failing ECM Versus a Failing PCM?

The symptoms of a failing ECM versus a failing PCM overlap in several areas, such as check engine lights and poor fuel economy, but diverge when transmission-related issues enter the picture. The sections below break down the specific signs for each module.

What Are the Signs of a Bad ECM?

The signs of a bad ECM include the check engine light turning on, engine stalling or misfiring, general engine performance issues, the car not starting, and poor fuel economy. According to MAKS ECM Rebuilders, these symptoms reflect the ECM's inability to properly process sensor data and manage critical engine functions like fuel injection timing and ignition control.

Because the ECM governs engine-specific operations, its failure symptoms remain confined to how the engine runs. A Diagnostic Trouble Code such as P0301, which indicates a cylinder 1 misfire, can point toward ECM malfunction when no mechanical cause is found. If multiple unrelated engine DTCs appear simultaneously, a degraded ECM is often the underlying culprit rather than individual component failures.

What Are the Signs of a Bad PCM?

The signs of a bad PCM include the check engine light illuminating, poor fuel economy, hard or erratic shifting, engine stalling or rough idling, and failure of emissions tests. According to Solo Auto Electronics, these symptoms reflect the PCM's broader control responsibilities across both engine and transmission systems.

The critical distinction is shifting behavior. Because the PCM integrates ECM and Transmission Control Module functions, erratic or harsh gear changes often signal PCM failure specifically. Emissions test failures also point more directly toward PCM issues, since this module manages the full powertrain calibration that determines tailpipe output. When engine symptoms and transmission irregularities appear together, the PCM should be the first suspect. Accurate diagnosis at this stage can prevent unnecessary part replacements and save significant repair costs.

Understanding these symptom differences helps narrow whether the issue is diesel-specific or spans the entire powertrain.

How Does the ECM vs PCM Difference Affect Diesel Engines?

The ECM vs PCM difference affects diesel engines primarily because most diesel platforms rely on a dedicated ECM rather than an integrated PCM. This distinction shapes how fuel injection, emissions controls, and aftertreatment systems are managed.

The ECM in a diesel engine controls high-pressure fuel injection by regulating a high-pressure return valve to ensure precise fuel delivery, according to research published in the ASME Digital Collection. Unlike gasoline vehicles that often use a PCM to oversee both engine and transmission functions, diesel trucks frequently separate these responsibilities. The ECM handles fuel maps, turbo boost pressure, and exhaust gas recirculation independently.

This dedicated architecture matters because diesel engines demand specialized emissions management. The ECM monitors particulate accumulation in the Diesel Particulate Filter (DPF) and initiates regeneration when necessary, adjusting based on exhaust temperature and soot load. DPF regeneration can occur through passive, active, parked, and forced methods, each triggered by ECM-calculated thresholds.

Heavy-duty diesel platforms also communicate differently. The SAE J1939 protocol defines how ECUs exchange data in these vehicles, built upon the CAN bus physical layer. A standalone ECM on a Cummins 6.7L diesel, for example, uses an NXP microprocessor with memory and algorithms calibrated specifically for diesel combustion cycles. This level of specialization is why diesel ECMs, such as the Cummins CM2350, tend to cost significantly more than a typical PCM found in light-duty gasoline vehicles.

For diesel owners, understanding this distinction is practical. When a diagnostic trouble code appears, knowing whether your truck uses a standalone ECM or an integrated PCM determines which module needs attention, which scan tool protocols apply, and what replacement costs to expect. Replacement costs and reprogramming options vary significantly between these two module types.

How Much Does It Cost to Replace an ECM Compared to a PCM?

The cost to replace an ECM ranges from roughly $4,000 to $6,500 for heavy-duty diesel applications, while a PCM replacement typically costs between $400 and $1,500. Vehicle type, parts sourcing, and labor rates all influence final pricing.

ECM replacement costs run significantly higher because diesel engine control modules manage complex fuel injection, emissions, and turbo calibration systems. According to a RamForum.com discussion, replacement ECMs for 2019–2023 Cummins trucks cost around $4,000 to $4,500, with some reports indicating prices as high as $6,500 for a new PCM on a 2014 Ram 2500 Cummins. These figures reflect OEM dealership pricing, which includes programming and vehicle-specific calibration.

PCM replacement carries a lower price point because many gasoline-vehicle PCMs serve lighter-duty powertrain configurations. A PCM replacement typically costs between $400 and $1,500 in total, with variation depending on vehicle type, parts sourcing, and local labor rates. Even at the high end, gasoline PCM costs remain well below heavy-duty diesel ECM pricing.

Remanufactured modules offer a practical middle ground for both ECM and PCM replacements. These units undergo disassembly, cleaning, inspection, repair, reassembly, and software programming to meet or exceed OEM standards. For fleet operators or owner-operators managing tight budgets, a quality remanufactured ECM can deliver OEM-level reliability at a fraction of the new unit cost. The key factors that influence total replacement cost include:

• Vehicle make, model, and engine platform

• New versus remanufactured module sourcing

• Dealer versus independent shop labor rates

• Programming and calibration fees

• Warranty coverage included with the part

For most diesel applications, the ECM represents one of the most expensive individual electronic components on the vehicle, making the choice between new and remanufactured units a decision worth careful evaluation before committing to a purchase.

Can an ECM or PCM Be Reprogrammed Instead of Replaced?

Yes, an ECM or PCM can be reprogrammed instead of replaced in many cases. Reprogramming, also called reflashing, updates the module's software without swapping hardware. However, success depends on whether the issue is software-related or caused by physical damage, and legal restrictions apply to emissions-related modifications.

An ECM or PCM stores its operating instructions in flash memory. When a manufacturer releases updated calibration files to fix bugs, improve fuel economy, or address drivability complaints, a technician can overwrite the existing software through the vehicle's OBD-II diagnostic port. This process resolves problems rooted in outdated or corrupted programming without the cost of a full module replacement. According to a study published in IEEE Xplore, the success rate for ECU flashing in automotive validation is considered successful when the pass rate exceeds 70%, which underscores why qualified technicians and reliable equipment matter.

Reprogramming cannot fix every issue. If the ECM or PCM suffers from a failed microcontroller, damaged circuit board traces, or corroded connectors, no software update will restore function. Physical hardware failures require replacement or remanufacturing. Proper diagnosis with a scan tool and visual inspection should always precede the decision to reflash.

Legal boundaries also limit what reprogramming can accomplish. The EPA's tampering policy, enforced under the Clean Air Act, prohibits modifications to vehicle and engine control systems that could affect emissions. Aftermarket performance tunes that alter fuel maps or disable emissions controls violate federal law. The California Air Resources Board may grant exemptions for aftermarket modifications demonstrated not to increase vehicle emissions, but obtaining that exemption requires formal testing and approval. For most fleet operators and owner-operators, staying within OEM calibration parameters is the safest approach.

Reprogramming is a practical first step when software corruption or outdated calibrations cause drivability issues, but it is not a universal fix. Understanding whether the root cause is hardware or software determines the right path forward.

How Do You Diagnose Whether the ECM or PCM Is the Problem?

You diagnose whether the ECM or PCM is the problem by reading Diagnostic Trouble Codes, testing sensor circuits with proper tools, and ruling out component failures before condemning the module itself.

The first step is connecting an OBD-II scan tool to the vehicle's diagnostic port. According to Kvaser, the OBD-II standard specifies a protocol for communication between a vehicle and an external diagnostic device, enabling retrieval of Diagnostic Trouble Codes from ECUs. These DTCs reveal whether faults originate from engine-only systems (pointing to the ECM) or span both engine and transmission functions (pointing to the PCM).

Once codes are pulled, the next step involves verifying sensor inputs and actuator outputs. According to Solo Auto Electronics, essential tools for ECM testing include a digital multimeter and an oscilloscope, which measure voltage, resistance, and waveform signals from the module and its connected sensors. If sensor readings fall within spec but the module still outputs incorrect commands, the control module itself becomes the likely culprit.

A structured diagnostic sequence helps narrow the source:

1. Pull all DTCs and freeze-frame data using an OBD-II scanner.

2. Check for power and ground integrity at the module connector.

3. Test individual sensor circuits with a digital multimeter.

4. Use an oscilloscope to verify waveform patterns on critical signals.

5. Compare live data values against manufacturer specifications.

6. Swap the suspect module only after eliminating wiring and sensor faults.

For diesel applications, distinguishing between an ECM fault and a sensor fault is especially critical because replacement costs run significantly higher. Rushing to replace a module when the real issue is a corroded connector or failed sensor wastes time and money. A methodical, tool-based approach consistently produces the most accurate diagnosis.

With the diagnostic process clarified, knowing where to source reliable replacement components becomes the next practical step.

Where Can You Find Reliable Diesel Engine Control Components?

Reliable diesel engine control components are available through specialized suppliers that stock ECMs and related parts for major diesel platforms. The subsections below cover how Goldfarb & Associates can help source these parts and summarize the key ECM vs PCM differences.

Can Goldfarb & Associates Help You Source ECM-Related Diesel Parts?

Yes, Goldfarb & Associates can help you source ECM-related diesel parts. Established in 1997, Goldfarb & Associates is America's leading diesel parts supplier, maintaining an inventory of over 20,000 unique part numbers that includes new, used, and remanufactured Engine Control Modules. Every part undergoes hand inspection and must pass a full quality checklist before shipping.

Goldfarb & Associates supplies ECMs for diesel platforms used across construction, agricultural, marine, and on-highway applications. With same-day shipping on orders placed before 3:30 PM EST, locating the correct module for a specific engine configuration does not require extended downtime. For diesel operators facing replacement costs that can reach $4,000 to $4,500 on platforms like 2019–2023 Cummins trucks (according to RamForum.com community reports), having access to competitively priced new and remanufactured options makes a measurable difference.

What Are the Key Takeaways About ECM vs PCM Differences?

The key takeaways about ECM vs PCM differences center on scope, architecture, and application:

• The ECM controls engine-specific functions, such as fuel injection timing, DPF regeneration, and sensor-based diagnostics.

• The PCM integrates engine and transmission management into a single unit, effectively combining ECM and TCM functions.

• Vehicles equipped with a PCM typically do not have a separate ECM or TCM.

• Diesel engines rely heavily on ECM control for high-pressure fuel delivery, exhaust aftertreatment, and communication over protocols like SAE J1939.

• Replacement costs vary significantly; diesel ECMs often cost several times more than standard PCM replacements.

• Proper diagnosis using tools like digital multimeters and OBD-II scanners prevents unnecessary module replacement.

For anyone managing diesel fleets or maintaining heavy-duty equipment, understanding these distinctions ensures accurate troubleshooting and cost-effective sourcing. Goldfarb & Associates specializes in helping customers identify the exact ECM their diesel engine requires.
