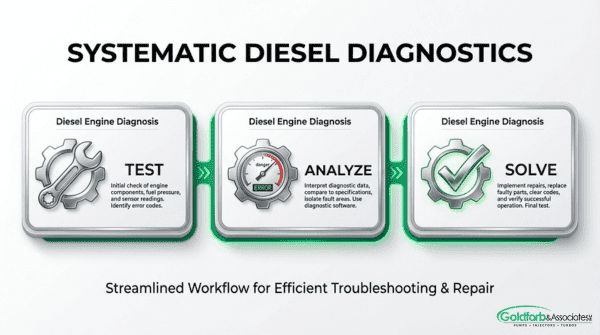

What Is a Diagnostic Flowchart for Low Power in Diesel Engines?

A diagnostic flowchart for low power in diesel engines is a structured, step-by-step decision path that isolates the root cause of reduced engine output by testing each major system in sequence. It eliminates guesswork by directing technicians through fuel, air, exhaust, electronic, and mechanical checks in a logical order.

This guide covers the core causes of diesel power loss, systematic diagnostic procedures for each engine system, exhaust and emissions fault isolation, electronic control module troubleshooting, internal mechanical failure testing, and sourcing quality replacement parts.

Diesel engines lose power when one or more systems fail to deliver correct fuel pressure, air volume, exhaust flow, or electronic signals. Fuel delivery failures alone account for the majority of diesel breakdowns, with worn injection pumps, clogged filters, and failing injectors disrupting the precise volume and timing combustion demands.

Systematic diagnosis begins with visual preliminary checks, diagnostic trouble code retrieval, and baseline measurements of fuel rail pressure, boost pressure, exhaust backpressure, and cylinder compression. These reference values separate confirmed faults from assumptions before any components are removed.

Fuel system testing follows a supply-to-injector sequence: pressure and volume verification, pump timing confirmation, spray pattern evaluation, and contamination sampling. Air intake and turbocharger diagnosis covers filter restriction, boost pressure accuracy, intercooler integrity, and wastegate or VGT vane function.

Exhaust and emissions diagnostics target backpressure limits, DPF soot loading, and EGR valve carbon fouling. ECM diagnosis verifies sensor inputs, software calibration, and wiring harness condition. Compression testing and valve timing checks serve as final-stage evaluations when all other systems test within specification.

The guide also addresses common diagnostic mistakes, the replace-versus-rebuild decision, and how precision fuel system components from Goldfarb & Associates resolve persistent low power once the root cause is confirmed.

Why Does a Diesel Engine Lose Power?

A diesel engine loses power when one or more core systems fail to deliver the correct fuel, air, exhaust flow, or electronic signals. The subsections below cover fuel delivery problems, air supply restrictions, exhaust system faults, electronic sensor failures, and mechanical wear conditions.

What Fuel Delivery Problems Cause Low Power?

Fuel delivery problems that cause low power include clogged fuel filters, worn injection pumps, failing injectors, restricted fuel lines, and fuel contamination. Each of these disrupts the precise volume and pressure of fuel reaching the combustion chamber.

According to the U.S. Navy's engineering training manual (NAVEDTRA 14264A), a diesel engine out of adjustment can cause excessive exhaust smoke, poor fuel economy, heavy carbon buildup within the combustion chambers, and short engine life. Common fuel-side symptoms include:

• Surging or misfiring under load

• Black or white exhaust smoke at acceleration

• Slow throttle response despite full pedal input

• Hard starting or extended cranking times

Because diesel engines rely on high-pressure injection timing measured in milliseconds, even minor fuel delivery degradation produces noticeable power loss before other symptoms become obvious.

What Air Supply Restrictions Lead to Power Loss?

Air supply restrictions that lead to power loss prevent the engine from receiving enough oxygen for complete combustion. Diesel engines depend on a precise air-to-fuel ratio, and any restriction on the intake side starves cylinders of the air volume they need to generate full power.

The most common air-side restrictions include:

• Clogged or collapsed air filters

• Cracked or disconnected intake hoses and boots

• Failed turbocharger compressor wheels or bearings

• Blocked intercooler cores from oil buildup or debris

• Sticking variable geometry turbine (VGT) vanes

A restricted air supply forces the engine to run rich, producing excessive soot that compounds problems downstream in the exhaust aftertreatment system. For most fleets, a disciplined air filter replacement schedule is the single cheapest way to protect against gradual, hard-to-detect power loss.

What Exhaust System Faults Reduce Engine Output?

Exhaust system faults reduce engine output by increasing backpressure, which forces the engine to work harder to expel combustion gases. When exhaust cannot exit freely, volumetric efficiency drops and power falls.

A 2024 study published in E3S Web of Conferences found that up to 70% of diesel engine failures occur in high-pressure fuel equipment, with wear, corrosion, and clogging as the primary causes; these same degradation patterns affect exhaust-side components like turbocharger turbine housings. Additionally, research in the Journal of Marine Science and Engineering confirms that turbocharger failures account for a significant portion of engine malfunctions, with common faults including insufficient turbine outlet power and variations in turbine gas flow rate.

Key exhaust-related causes of low power include:

• Plugged diesel particulate filters (DPFs) that cannot regenerate

• Failed or stuck EGR valves recirculating excessive exhaust

• Cracked exhaust manifolds creating boost leaks

• Damaged catalytic converters restricting flow

Exhaust restrictions often develop gradually, making systematic backpressure testing essential during any low-power diagnosis.

What Electronic or Sensor Failures Trigger Low Power?

Electronic or sensor failures trigger low power by sending incorrect data to the engine control module (ECM), which then limits fueling or boost as a protective measure. Modern diesel engines rely on dozens of sensor inputs to calculate injection timing, fuel quantity, and turbocharger output.

The OBD system alerts the driver through the malfunction indicator light (MIL) when an emissions-related component problem is detected, a mandatory requirement under the Clean Air Act according to research published in Atmospheric Environment via ScienceDirect. Sensor failures that commonly cause power derating include:

• Faulty mass airflow (MAF) or manifold absolute pressure (MAP) sensors

• Failed boost pressure sensors providing incorrect turbo readings

• Malfunctioning exhaust gas temperature (EGT) sensors

• Degraded camshaft or crankshaft position sensors affecting timing

• Corroded ECM connectors or damaged wiring harnesses

In practice, sensor-related low power is among the most cost-effective problems to fix, yet it is frequently misdiagnosed as a mechanical issue because symptoms overlap.

What Mechanical Wear Conditions Result in Low Power?

Mechanical wear conditions that result in low power include worn piston rings, damaged valve seats, eroded cylinder liners, failed head gaskets, and camshaft lobe wear. Each condition reduces the engine's ability to build and maintain compression.

Normal compression for most heavy-duty diesel engines falls within 400 to 600 PSI, and variation between cylinders should not exceed 50 PSI to ensure proper balance and power output, according to Apex Industries. When compression drops below specification, the engine cannot generate sufficient heat and pressure to ignite fuel efficiently, resulting in:

• Reduced power across all operating ranges

• Increased blowby gases venting through the crankcase

• Elevated oil consumption and blue-tinged exhaust smoke

• Rough idle and cylinder-to-cylinder imbalance

Mechanical wear is typically the last diagnostic category to investigate because it requires the most invasive testing. With fuel, air, exhaust, and electronic causes ruled out, a systematic low-power diagnosis moves to internal engine evaluation.

How Do You Start a Systematic Low Power Diagnosis?

You start a systematic low power diagnosis by performing visual preliminary checks, pulling diagnostic trouble codes, and recording baseline measurements. These three steps establish the foundation before deeper testing begins.

What Preliminary Checks Should You Perform First?

The preliminary checks you should perform first are visual and sensory inspections that catch obvious faults before connecting any diagnostic equipment. These quick assessments often reveal the root cause without further testing.

Key preliminary checks include:

• Inspecting fuel filters for contamination, water, or restriction.

• Checking air filter condition and intake ducting for collapsed hoses or leaks.

• Verifying all exhaust connections are tight with no visible leaks.

• Scanning for loose wiring harness connectors or chafed sensor cables.

• Checking coolant and oil levels, since low fluids can trigger engine derating.

• Listening for unusual turbocharger whine, exhaust hiss, or injector knock.

With unplanned heavy truck repair downtime costing fleets an average of $760 per hour according to CMH Truck Repair, these simple visual checks save significant time and money by eliminating straightforward issues immediately.

How Do You Read and Interpret Diagnostic Trouble Codes?

You read and interpret diagnostic trouble codes (DTCs) by connecting a scan tool to the engine's electronic control module and reviewing both active and stored fault codes. Active codes indicate current malfunctions, while stored codes reveal intermittent issues that may still affect power output.

The OBD system alerts the driver through the malfunction indicator light when an emissions-related component problem is detected, a mandatory requirement under the Clean Air Act according to ScienceDirect's research on atmospheric environment monitoring.

When interpreting DTCs, prioritize codes in this order:

1. Engine protection or derate codes that directly limit power.

2. Fuel system codes related to rail pressure, injector circuits, or pump timing.

3. Air intake and boost pressure fault codes.

4. Aftertreatment codes affecting regeneration or backpressure.

Cross-referencing multiple related codes often points to a single upstream failure rather than several independent problems.

What Baseline Measurements Should You Record?

The baseline measurements you should record are quantitative reference values that allow you to compare actual engine performance against manufacturer specifications. Without these numbers, diagnosis becomes guesswork.

Essential baseline measurements include:

• Fuel rail pressure at idle and under load, compared to OEM specs.

• Boost pressure at rated speed to verify turbocharger output.

• Exhaust backpressure, keeping within limits such as the 20 kPa maximum recommended by the Swiss VERT program for engines between 50 and 500 kW.

• Cylinder compression, where normal heavy-duty diesel readings typically fall between 400 and 600 PSI with no more than 50 PSI variation between cylinders.

• Intake manifold temperature and coolant temperature at operating conditions.

Recording these values before making any repairs creates a diagnostic baseline that guides each subsequent step in the flowchart. With baseline data established, you can systematically isolate whether fuel delivery, air supply, or mechanical wear is causing the power loss.

How Do You Diagnose Fuel System Issues Step by Step?

You diagnose fuel system issues step by step by testing supply pressure, verifying injection pump timing, evaluating injector spray patterns, and ruling out contamination. Each test isolates a specific failure point within the fuel delivery path.

How Do You Test Fuel Supply Pressure and Volume?

You test fuel supply pressure and volume by installing a mechanical fuel pressure gauge at the inlet of the injection pump and measuring readings at idle and under load. Most diesel systems require transfer pump pressure between 3 and 8 PSI at the injection pump inlet, though specifications vary by engine model. Volume testing involves disconnecting the return line and collecting fuel output over a timed interval, typically expecting 1 pint in 15 to 30 seconds depending on the engine. Low pressure or insufficient volume points to a failing lift pump, collapsed suction line, or restricted primary fuel filter. Always compare readings against the OEM service manual for the specific engine platform being diagnosed.

How Do You Check Injection Pump Timing and Output?

You check injection pump timing and output by verifying the pump-to-engine timing marks and measuring delivery volume per stroke. Static timing is confirmed by aligning the pump's timing mark with the engine's reference mark on the front gear housing or timing pointer. Dynamic timing requires a luminosity probe or magnetic pickup sensor to detect the actual injection event relative to crankshaft position. According to a report published by E3S Web of Conferences, up to 70% of diesel engine failures occur in high-pressure fuel equipment, with wear, corrosion, and clogging identified as primary causes. Retarded timing produces white smoke and sluggish response, while advanced timing causes knocking and elevated combustion temperatures. Worn delivery valves inside the pump reduce rail pressure and degrade cylinder-to-cylinder fuel balance.

How Do You Evaluate Fuel Injector Spray Pattern?

You evaluate fuel injector spray pattern by removing each injector and testing it on a pop tester or injector test bench. A properly functioning injector produces a fine, conical mist with uniform atomization across all spray holes. Key measurements to assess include:

• Opening pressure: must match the OEM specification, typically between 2,000 and 5,000 PSI depending on injector type.

• Spray pattern symmetry: each orifice should produce an evenly distributed cone without streaking or dripping.

• Seat leakage: the nozzle must hold pressure below the opening threshold for at least 10 seconds without dripping.

• Chatter quality: a healthy nozzle produces a sharp buzzing sound during the pop test, indicating proper needle valve movement.

A worn or clogged nozzle delivers uneven fuel distribution, directly causing incomplete combustion and measurable power loss.

How Do You Rule Out Fuel Contamination or Restriction?

You rule out fuel contamination or restriction by sampling fuel from the tank drain and inspecting it visually and chemically. Water contamination appears as a distinct layer at the bottom of a clear sample jar, while microbial growth presents as dark sludge or stringy material. Fuel that smells sour or appears cloudy may contain algae or excessive moisture. Restriction testing involves measuring pressure drop across each filter element; a differential exceeding 2 to 5 PSI beyond baseline typically indicates a clogged filter. Inspect the tank pickup tube and screen for sediment accumulation, and check all fuel lines for kinks or internal degradation. Contaminated fuel accelerates wear on precision injection components, making early detection critical for protecting the entire fuel system.

With fuel delivery confirmed or corrected, the next diagnostic step shifts to the air intake and turbocharger system.

How Do You Diagnose Air Intake and Turbo Problems?

You diagnose air intake and turbo problems by systematically inspecting each component in the charged air path, from the filter to the exhaust-side turbine housing. The subsections below cover filter and duct inspection, boost pressure testing, intercooler evaluation, and wastegate or VGT vane diagnosis.

How Do You Inspect the Air Filter and Intake Tract?

You inspect the air filter and intake tract by performing a visual and instrument-based evaluation of every component between the air cleaner housing and the turbo compressor inlet. Start with the filter element itself; hold it up to a light source and check for tears, oil saturation, or heavy particulate loading that blocks airflow. Next, run your hand along each rubber boot, coupler, and clamp in the intake tract while feeling for cracks, loose connections, or collapsed sections. Even a small unfiltered air leak upstream of the turbo compressor can introduce debris that erodes compressor wheel blades over time. Measure intake restriction with a manometer or vacuum gauge at the service port; readings beyond the manufacturer's specified limit confirm a restricted element or obstructed duct.

How Do You Test Turbocharger Boost Pressure?

You test turbocharger boost pressure by connecting a calibrated boost gauge or diagnostic scan tool to the intake manifold pressure tap and comparing live readings against OEM specifications under loaded conditions. According to research published in the Journal of Marine Science and Engineering, turbocharger failures account for a significant portion of engine malfunctions, with common faults on the air intake side including insufficient turbine outlet power and variations in turbine gas flow rate. Begin at idle, where boost should read near atmospheric pressure. Then perform a loaded acceleration test, either on-highway under grade or using a chassis dynamometer, and record peak boost. A reading consistently below spec points to a compressor-side leak, worn compressor wheel, or exhaust-side restriction starving the turbine of drive pressure. Compare commanded versus actual boost values on the scan tool to isolate whether the issue is mechanical or electronically controlled.

How Do You Check the Intercooler for Leaks or Blockage?

You check the intercooler for leaks or blockage by pressurizing the core and inspecting for external fin damage. Cap both intercooler ports, apply regulated shop air to approximately 20-30 PSI (or the manufacturer's test pressure), and submerge the unit in water or spray soapy solution over every weld seam and tank joint. Bubbles reveal cracks or pinhole leaks. For blockage, visually examine the external fin matrix for mud, debris, or bent fins that reduce airflow. Internally, inspect for oil accumulation or carbon buildup that narrows the charge air passages. A partially blocked intercooler raises charge air temperature, which reduces air density and directly costs the engine power. Thermal imaging during operation can also reveal hot spots indicating restricted internal flow.

How Do You Diagnose a Sticking Wastegate or VGT Vane?

You diagnose a sticking wastegate or VGT vane by testing actuator response, measuring boost control accuracy, and physically inspecting the mechanism for carbon fouling or corrosion. On a mechanical wastegate, disconnect the actuator rod and verify smooth movement by hand; excessive resistance or binding indicates a seized pivot or corroded valve seat. For variable geometry turbochargers, use a scan tool to command VGT vane position through its full range while monitoring actual position feedback. A vane assembly that fails to track commanded positions, or responds sluggishly, typically suffers from soot accumulation on the unison ring or individual vane pivots. Cleaning or replacing the VGT mechanism restores precise boost control, which is critical for both power output and emissions compliance.

With intake and turbo faults ruled out, the next logical step turns to the exhaust and emissions system.

How Do You Diagnose Exhaust and Emissions System Faults?

You diagnose exhaust and emissions system faults by measuring backpressure, inspecting aftertreatment components, and evaluating EGR function. The OBD system alerts the driver through the malfunction indicator light when an emissions-related problem is detected. The subsections below cover backpressure testing, DPF and catalyst inspection, and EGR valve diagnosis.

How Do You Test for Excessive Exhaust Backpressure?

You test for excessive exhaust backpressure by installing a pressure gauge at the exhaust manifold or pre-turbo tap point and recording readings at rated speed under load. According to the Swiss VERT program recommendations published by DieselNet, maximum backpressure limits are 40 kPa for engines under 50 kW, 20 kPa for engines between 50 and 500 kW, and 10 kPa for engines above 500 kW.

Readings that exceed these thresholds point to a restriction downstream, typically in the DPF, catalytic converter, or exhaust piping. When backpressure climbs gradually over time rather than spiking suddenly, soot loading or internal collapse of a substrate is the more likely culprit. A sudden spike often indicates a physical blockage or a crushed exhaust pipe. Comparing your measured value against the OEM specification for that engine model confirms whether the restriction is severe enough to cause noticeable power loss.

How Do You Check a Clogged DPF or Blocked Catalyst?

You check a clogged DPF or blocked catalyst by monitoring differential pressure sensor readings across the aftertreatment device and comparing them to OEM-specified thresholds. A differential pressure value that remains elevated after a forced regeneration cycle confirms excessive soot or ash accumulation inside the filter.

A 2017 study published in the American Chemical Society's Environmental Science & Technology journal found that the average interval between real-world active regenerations for heavy-duty DPFs was 28.0 hours and 599 miles, with ranges spanning 3 to 100 hours and 23 to 4,078 miles per truck. Filters that regenerate too frequently or fail to regenerate at all both indicate underlying problems. Ash-loaded DPFs that no longer respond to regeneration require removal for cleaning or replacement. For catalyst substrates, a thermal imaging scan across the housing reveals cold spots where flow is blocked.

How Do You Diagnose a Faulty EGR Valve Causing Low Power?

You diagnose a faulty EGR valve causing low power by commanding the valve open and closed through the diagnostic scan tool while monitoring intake manifold pressure and exhaust gas temperature. A properly functioning EGR valve changes intake pressure measurably when cycled; no change indicates a stuck valve or blocked EGR cooler passage.

Carbon buildup is the most common cause of EGR valve failure in diesel engines. Heavy soot deposits restrict the valve's travel range, causing it to stick partially open and dilute the intake charge excessively, which directly reduces combustion efficiency and power output. Inspect the EGR cooler for clogging and the EGR tube for excessive carbon accumulation. If coolant is present in the EGR passages, the cooler has an internal leak and requires replacement before further diagnosis.

With emissions system faults ruled out, electronic control module diagnostics can isolate remaining power loss causes.

How Do You Diagnose Electronic Control Module Problems?

You diagnose electronic control module problems by testing sensor inputs, verifying software calibration, and inspecting wiring harness connections. The following subsections cover sensor input testing, ECM software faults, and connector inspections.

How Do You Test ECM Sensor Inputs Affecting Power?

You test ECM sensor inputs affecting power by back-probing sensor signal wires with a digital multimeter or using live data streams on an OEM scan tool. Key sensors to verify include the throttle position sensor, boost pressure sensor, intake air temperature sensor, and fuel rail pressure sensor. Compare each reading against factory specifications at idle and under load. A sensor reporting values outside its normal range forces the ECM into a derated or limp mode, directly reducing engine output. According to a report published in Atmospheric Environment via ScienceDirect, the OBD system alerts the driver through the malfunction indicator light when an emissions-related component fault is detected, a requirement under the Clean Air Act.

How Do You Identify ECM Software or Calibration Faults?

You identify ECM software or calibration faults by connecting OEM diagnostic software to the engine's data link connector and reading the current calibration version. Outdated firmware or incorrect calibration files can limit fuel injection timing, governor response, and maximum power output. Cross-reference the installed software revision against the manufacturer's latest release bulletin. If a mismatch exists, reflashing the ECM with the correct calibration often restores full power. Intermittent derates with no stored fault codes are a common sign of calibration drift, particularly after battery disconnects or ECM replacements. For most fleets, confirming calibration should be a standard step before replacing any electronic component.

How Do You Check Wiring Harness and Connector Issues?

You check wiring harness and connector issues by performing a visual inspection followed by targeted electrical tests. Look for these common failure points:

• Chafed or abraded insulation where harnesses contact frame rails or hot exhaust components.

• Corroded connector pins caused by moisture intrusion at weather pack seals.

• Backed-out terminal pins that create intermittent open circuits under vibration.

• Stretched or melted wires near high-heat areas like turbocharger housings.

Use a multimeter to measure continuity and resistance on suspect circuits. Wiggle-test connectors while monitoring live sensor data to catch intermittent faults. With unplanned truck repair downtime costing fleets an average of $760 per vehicle per hour, according to CMH Truck Repair, resolving wiring issues quickly prevents costly misdiagnosis and unnecessary part replacements.

With ECM diagnostics confirmed, the next step addresses internal engine mechanical failures.

How Do You Diagnose Internal Engine Mechanical Failures?

You diagnose internal engine mechanical failures by testing cylinder compression, verifying valve timing and camshaft condition, and evaluating head gasket integrity. Each test isolates a specific failure point.

How Do You Perform a Compression Test on a Diesel Engine?

You perform a compression test on a diesel engine by removing all glow plugs or injectors, threading a compression gauge into each cylinder port, and cranking the engine while recording peak pressure. Normal compression for most heavy-duty diesel engines typically falls within 400–600 PSI, according to Apex Industries, and variation between cylinders should not exceed 50 PSI to ensure proper engine balance and power output.

Key steps include:

• Warm the engine to operating temperature before testing.

• Disable the fuel system to prevent injection during cranking.

• Crank each cylinder for the same number of revolutions for consistent readings.

• Record and compare all cylinder pressures side by side.

Low readings across all cylinders suggest worn piston rings or cylinder liners. A single low cylinder often points to a damaged valve or head gasket breach. A wet test, where a small amount of oil is added to the cylinder, helps differentiate ring wear from valve seat issues; if pressure rises with oil, the rings are the likely culprit.

How Do You Check Valve Timing and Camshaft Condition?

You check valve timing and camshaft condition by verifying that valve opening and closing events align with the manufacturer's specified crankshaft positions. Misaligned valve timing reduces volumetric efficiency, directly causing low power output.

The process involves:

• Rotating the crankshaft to top dead center on the number-one cylinder using timing marks.

• Confirming camshaft gear or sprocket alignment marks match the factory specification.

• Measuring valve lash with feeler gauges at the prescribed clearances.

• Inspecting camshaft lobes for visible wear, pitting, or flat spots.

Worn camshaft lobes produce insufficient valve lift, which restricts airflow into and exhaust out of the combustion chamber. A timing chain or gear set with excessive play can shift valve events by several degrees, mimicking turbocharger or fueling problems. Catching camshaft wear early prevents costlier damage to valvetrain components and cylinder heads.

How Do You Evaluate Head Gasket Integrity?

You evaluate head gasket integrity by testing for combustion gas leakage, coolant intrusion, and pressure loss between the cylinder and cooling or oil passages. A failed head gasket undermines compression and contaminates fluids.

Reliable diagnostic methods include:

• Performing a block test (combustion leak test) using chemical fluid that changes color when exposed to exhaust gases in the coolant.

• Pressurizing the cooling system with a hand pump and monitoring for pressure drop.

• Inspecting the oil filler cap and dipstick for milky residue indicating coolant mixing with engine oil.

• Checking for white exhaust smoke at operating temperature, which signals coolant burning in the combustion chamber.

Cylinder-to-cylinder gasket failure may appear as two adjacent cylinders showing equally low compression readings. Because head gasket symptoms overlap with cracked cylinder heads, confirming the gasket as the root cause before disassembly saves significant labor time. With mechanical failures confirmed, the next step is avoiding common diagnostic mistakes that lead to unnecessary part replacements.

What Common Mistakes Should You Avoid During Diagnosis?

The common mistakes you should avoid during diagnosis include skipping preliminary checks, replacing parts without testing, ignoring related systems, and misreading diagnostic data. Each error wastes time and money while leaving the root cause unresolved.

• Jumping to part replacement without testing first. Swapping injectors, pumps, or turbochargers based on assumptions rather than measured data leads to unnecessary spending and repeated failures. Always confirm a component is faulty through pressure readings, spray pattern tests, or boost measurements before ordering replacements.

• Skipping the diagnostic trouble code scan. Fault codes narrow the search area significantly. Clearing codes without documenting them, or ignoring stored codes because the MIL is off, removes critical diagnostic evidence.

• Testing one system in isolation. Fuel, air, exhaust, and electronic systems interact constantly. A clogged DPF raises backpressure, which affects turbo performance, which reduces airflow, which alters fuel combustion. Diagnosing only one subsystem misses cascading failures.

• Ignoring baseline measurements. Without recording fuel pressure, boost pressure, compression values, and exhaust backpressure at the start, you have no reference point to identify what has actually deviated from specification.

• Misinterpreting sensor data without verifying sensor accuracy. A MAP sensor reading low boost does not always mean the turbocharger is failing; the sensor itself may be faulty or its wiring compromised. According to a 2021 study published in ScienceDirect's Atmospheric Environment journal, the OBD system alerts drivers through the malfunction indicator light when emissions-related component problems are detected, making sensor verification essential before condemning mechanical parts.

• Overlooking fuel quality and contamination. Water intrusion, microbial growth, or degraded fuel causes symptoms identical to injector or pump failure. A simple fuel sample analysis can prevent hours of unnecessary teardown.

• Failing to check the basics: air filter condition, exhaust leaks, and loose connections. These low-cost, high-impact items account for a surprising number of low-power complaints yet are frequently bypassed in favor of more complex diagnostics.

For most technicians, the costliest diagnostic error is not a wrong measurement; it is skipping the systematic flowchart altogether and relying on experience-based guesses. A structured sequence catches what intuition misses. Understanding when to repair versus replace a confirmed faulty component is the next critical decision.

When Should You Replace Parts Versus Rebuild Them?

You should replace parts versus rebuild them based on the component's condition, the cost difference between options, and the downtime each path requires. The decision depends on damage severity, parts availability, and operational urgency.

The choice between replacement and rebuilding affects both repair cost and long-term reliability. Replacement delivers faster turnaround with predictable performance, while rebuilding can preserve a core component at lower material cost when wear is within serviceable limits. However, not every part is a good rebuild candidate.

Several factors guide this decision:

• Damage severity: Components with cracks, scoring, or metallurgical fatigue beyond manufacturer tolerances should be replaced outright, since rebuilding cannot restore structural integrity.

• Cost comparison: Rebuilding a fuel injection pump may cost 40–60% of a new unit, but only makes sense when internal wear is uniform and no housings are damaged.

• Downtime tolerance: According to CMH Truck Repair, unplanned big truck repair downtime costs fleets an average of $760 per hour, making replacement the faster, often more economical choice when a rebuilt unit is not immediately available.

• Parts availability: High-pressure fuel equipment, responsible for up to 70% of diesel engine failures according to E3S Web of Conferences research, frequently requires replacement simply because worn plungers, barrels, and nozzles are not always individually serviceable.

• Compliance requirements: Components tied to emissions systems must meet EPA Tier 2, Tier 4, or 2010 standards after any repair, which can limit rebuild viability if recalibration cannot achieve required thresholds.

Rebuilding works best for components like turbocharger CHRA cartridges, injection pumps with minor internal wear, and ECMs needing recalibration rather than board-level failure. Replacement is the better path when core damage is extensive, when the component has already been rebuilt once, or when fleet schedules cannot absorb extended shop time.

The most common mistake is defaulting to the cheapest option without factoring in total cost of ownership. A rebuilt part that fails six months later costs more than a quality replacement that lasts the full service interval. For persistent low power issues, sourcing the right parts from the start eliminates repeated diagnostic cycles.

How Can Quality Diesel Parts Solve Persistent Low Power?

Quality diesel parts solve persistent low power by replacing worn or failed components that systematic diagnostics have identified as root causes. The following subsections cover how Goldfarb & Associates addresses fuel system failures and summarize the guide's most actionable takeaways.

Can Goldfarb's Fuel Injectors and Injection Pumps Help?

Yes, Goldfarb & Associates fuel injectors and injection pumps can help resolve persistent low power caused by fuel delivery failures. According to a 2024 study published in E3S Web of Conferences, up to 70% of diesel engine failures occur in high-pressure fuel equipment due to wear, corrosion, and clogging. Goldfarb & Associates stocks over 20,000 unique part numbers across new, used, and remanufactured injectors, injection pumps, nozzles, plungers, barrels, and delivery valves. Every part undergoes hand inspection against a full quality checklist before shipping. When diagnostics confirm a faulty injector spray pattern or degraded pump output, sourcing a precision-matched replacement eliminates guesswork. Goldfarb & Associates ships same-day on orders placed before 3:30 PM EST, Monday through Friday, minimizing the costly downtime that compounds with every hour an engine sits idle.

What Are the Key Takeaways From This Low Power Guide?

The key takeaways from this low power guide are:

• Diesel low power stems from five interconnected systems: fuel delivery, air supply, exhaust aftertreatment, electronic controls, and internal mechanical condition.

• A systematic diagnostic flowchart prevents costly misdiagnosis by isolating the root cause before replacing parts.

• Fuel system failures, particularly in high-pressure injectors and injection pumps, represent the single largest failure category in diesel engines.

• Baseline measurements, including boost pressure, fuel pressure, compression values, and exhaust backpressure, provide objective data that separates confirmed faults from assumptions.

• Electronic diagnostics through OBD trouble codes and sensor input verification should precede any mechanical teardown.

• Compression testing and valve timing checks are final-stage diagnostics reserved for cases where all other systems test within specification.

Investing in quality replacement parts from a trusted supplier like Goldfarb & Associates ensures that once the root cause is found, the repair holds.
