What Is Compression Ratio and How Does It Affect Power, Efficiency, and Turbo Selection?

Compression ratio is the relationship between the maximum and minimum volume inside an engine's cylinder during the piston's stroke, and it directly determines how much mechanical work an engine extracts from each combustion event.

This guide covers the fundamentals of compression ratio calculation, its influence on power and fuel efficiency, how it governs turbocharger selection and boost limits, typical ratios across diesel applications, the relationship between compression and detonation, and how ECM tuning ties it all together.

Static and dynamic compression ratios serve different purposes. The static figure reflects full geometric volume change, while the dynamic ratio accounts for compression beginning only after intake valve closure, making it the more accurate metric for tuning and turbo matching decisions.

Higher compression ratios generate greater cylinder pressure at ignition, translating to more torque per stroke. Lower ratios sacrifice per-cycle efficiency but create headroom for forced induction; high-performance diesel pulling engines drop as low as 12:1 to safely run boost pressures exceeding 100 PSI.

Thermal efficiency improves with higher compression because a greater expansion ratio extracts more mechanical work before the exhaust valve opens. Gains diminish beyond 14:1 in gasoline engines as friction and heat losses overtake the thermodynamic benefit.

Turbocharger selection depends on compression ratio because the effective compression ratio under boost rises with every PSI added. Mismatching these variables leads to surge, detonation, or structural failure. Compressor map placement within the 70% to 75% peak efficiency zone is essential for reliable operation.

Diesel engines span 15:1 to over 20:1 depending on whether they serve light-duty trucks, heavy-duty industrial, or marine applications. Any change to the ratio requires recalibrated injection timing, rail pressure, and ECM tuning to maintain safe cylinder pressures and emissions compliance.

What Does Compression Ratio Mean in an Engine?

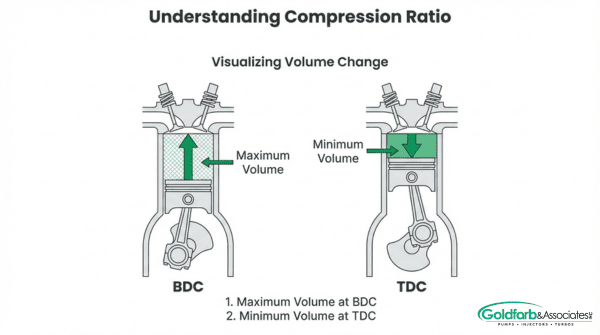

Compression ratio means the relationship between the maximum and minimum volume inside an engine's cylinder during the piston's stroke. The subsections below cover the difference between static and dynamic compression ratio and how to calculate it.

What Is the Difference Between Static and Dynamic Compression Ratio?

The difference between static and dynamic compression ratio is that static compression ratio measures the full geometric volume change of the cylinder, while dynamic compression ratio reflects the actual compression that occurs after the intake valve closes.

Static compression ratio (CR) is calculated as CR = (Vd + Vc) / Vc, where Vd is displacement volume at bottom dead center (BDC) and Vc is clearance volume at top dead center (TDC). According to HP Tuners, dynamic compression ratio (DCR) accounts for compression beginning only after intake valve closure (IVC), using the formula DCR = (V_ivc + Vc) / Vc, where V_ivc is cylinder volume at that moment.

Because the intake valve remains open during part of the upstroke, the cylinder is not sealed for the full piston travel. This makes DCR always lower than the static figure. Modifications like milling a cylinder head or using a thinner head gasket (e.g., 0.015 inches) reduce combustion chamber volume, potentially raising the static ratio from 9.0:1 to 9.6:1 for improved power. For tuning and turbo selection, DCR provides a far more accurate picture of actual cylinder pressure than the static number alone.

How Do You Calculate Compression Ratio?

You calculate compression ratio by dividing the total cylinder volume at BDC by the remaining clearance volume at TDC. The standard formula is:

• CR = (Vd + Vc) / Vc

Calculating requires four measurements:

1. Bore and stroke determine displacement volume (Vd).

2. Combustion chamber volume (Vc) includes the head chamber, head gasket thickness, and any piston dish or dome volume.

3. Piston deck height accounts for whether the piston sits above, flush with, or below the block surface at TDC.

For example, a cylinder with 50 cc of displacement and 5 cc of clearance volume yields a static CR of (50 + 5) / 5 = 11.0:1. Even small changes to gasket thickness or head milling shift Vc enough to alter the ratio meaningfully, which is why precise measurement matters before any turbo or fueling decisions.

With a clear understanding of what compression ratio represents, the next step is examining why it matters for engine performance.

Why Does Compression Ratio Matter for Engine Performance?

Compression ratio matters for engine performance because it directly determines how much mechanical work an engine extracts from each combustion event. Higher ratios squeeze the air-fuel charge into a smaller space, raising pressure and temperature to produce more force on the piston. This relationship affects power output, thermal efficiency, and how aggressively a turbocharger can pressurize intake air before risking engine damage. The subsections below explore how compression ratio shapes horsepower, influences fuel economy, and dictates the limits of forced induction across diesel and gasoline platforms.

How Does Compression Ratio Affect Engine Power Output?

Compression ratio affects engine power output by determining how much the air-fuel charge is squeezed before ignition, directly influencing combustion pressure and torque. Higher ratios extract more force per stroke, while lower ratios trade per-cycle efficiency for headroom under forced induction.

How Does a Higher Compression Ratio Increase Horsepower?

A higher compression ratio increases horsepower by generating greater cylinder pressure at the moment of combustion, which pushes the piston with more force during the power stroke. This elevated pressure translates directly into higher mean effective pressure, the metric that governs torque output.

The 2025 Cummins 6.7L High Output Turbo Diesel, for example, uses a compression ratio of 16.0:1 optimized to handle higher boost levels for increased torque, according to Diesel Hub. That ratio ensures the charge density is high enough to maximize energy release from each injection event, even under sustained load.

For naturally aspirated applications, raising compression is one of the most effective ways to gain power without adding displacement or forced induction.

How Does a Lower Compression Ratio Limit Power Potential?

A lower compression ratio limits power potential by reducing peak cylinder pressure during combustion, which means less mechanical force acts on the piston per stroke. The engine extracts a smaller percentage of the fuel's available energy during each cycle.

However, this trade-off is intentional in many forced-induction builds. The effective compression ratio under boost is calculated as ECR = [(Boost / 14.7) + 1] × CR_static. A lower static ratio keeps the ECR within safe limits when significant boost pressure is added. Builders who prioritize absolute peak power on limited-octane fuels often accept this per-cycle penalty because the turbocharger compensates with volume, pushing far more total airflow through the engine than a high-compression naturally aspirated setup could achieve.

How Does Compression Ratio Affect Power in Diesel vs Gasoline Engines?

Compression ratio affects power in diesel vs gasoline engines differently because of their distinct combustion processes. Diesel engines ignite fuel through compression heat alone, requiring ratios between 14:1 and 18:1 to reach sufficient temperatures. Gasoline engines rely on spark ignition and typically run 8:1 to 13:1.

According to a 2025 study published in ScienceDirect, increasing boost pressure in diesel engines generally enhances performance and reduces certain emissions, but it requires precise matching of the compressor pressure ratio to the engine's volumetric flow requirements. Diesel engines also face stricter combustion temperature management demands; the CARB 2025 Load-Dependent NOx Methodology emphasizes this for high-compression off-road engines.

Gasoline engines face knock as the primary constraint on compression ratio, while diesel engines face peak cylinder pressure limits. Understanding which constraint applies shapes every power-building decision that follows.

How Does Compression Ratio Influence Fuel Efficiency?

Compression ratio influences fuel efficiency by determining how completely an engine converts heat energy into mechanical work. Higher ratios extract more energy per combustion cycle, reducing fuel waste. The subsections below cover why thermal efficiency improves and where diminishing returns set in.

Why Do Higher Compression Ratios Improve Thermal Efficiency?

Higher compression ratios improve thermal efficiency by allowing a higher expansion ratio, which extracts more mechanical work from combustion heat before the exhaust valve opens. According to SAE International research, increasing the compression ratio from 10:1 to 11:1 in spark-ignition engines can yield a theoretical thermal efficiency gain of approximately 2% to 3%, though actual gains diminish beyond 14:1 due to increased friction and heat loss.

The Atkinson cycle takes this principle further by using late intake valve closing to create an expansion ratio significantly higher than the compression ratio. In heavy-duty applications, the Detroit DD15 engine employs ultra-high compression ratios with a swirl piston design to achieve up to 3% fuel economy improvement. The EPA's 2024 Phase 3 Greenhouse Gas Emissions Standards for heavy-duty vehicles now mandate CO2 reductions that are pushing manufacturers toward these higher-ratio designs paired with advanced turbocharging.

At What Point Do Higher Compression Ratios Stop Improving Efficiency?

Higher compression ratios stop improving efficiency when friction losses, heat rejection, and knock limitations outweigh the thermodynamic gains, typically beyond 14:1 in gasoline engines. Turbocharger efficiency imposes a parallel ceiling; on a compressor map, the peak efficiency sweet spot falls between 70% and 75%, with 60% considered the minimum acceptable for sustained operation.

When airflow reaches the choke line, flow velocity hits the speed of sound, compressor efficiency drops below 58%, and overspeed failure becomes a risk. These combined mechanical and aerodynamic boundaries mean that simply raising compression ratio without addressing turbo matching, cooling, and combustion management produces negligible, or even negative, returns. Knowing where these limits fall for your specific engine platform is essential before committing to hardware changes.

How Does Compression Ratio Affect Turbocharger Selection?

Compression ratio affects turbocharger selection by determining how much boost an engine can safely accept before exceeding cylinder pressure limits. The subsections below cover why high- and low-compression engines need different turbos, how compression ratio sets boost ceilings, how to read a compressor map, and what happens when boost exceeds safe limits.

Why Does a High-Compression Engine Need a Different Turbo Than a Low-Compression Engine?

A high-compression engine needs a different turbo than a low-compression engine because the static compression ratio determines how much additional pressure from forced induction the cylinders can tolerate. A 9.5:1 CR gasoline engine on 92 octane pump gas is generally limited to approximately 3 to 5 PSI of boost without advanced intercooling or timing retardation. Higher-compression engines leave less headroom for boost, so they require smaller, more precisely matched turbochargers.

Low-compression engines, by contrast, accept significantly more boost pressure. The 2024 Cummins X15 Efficiency Series pairs a VGT turbocharger with an XPI fuel system, where ECM tuning adjusts injection timing and rail pressure to manage peak cylinder pressures. This pairing illustrates why turbo selection cannot be separated from compression ratio; the two must be calibrated together.

How Does Compression Ratio Influence Boost Pressure Limits?

Compression ratio influences boost pressure limits by directly controlling the effective compression ratio (ECR) the engine experiences under boost. ECR is calculated as [(Boost / 14.7) + 1] × CR_static, representing the total compression the air-fuel charge undergoes relative to atmospheric pressure.

This formula explains why high-performance diesel pulling engines often lower their static compression ratios to as low as 12:1, allowing extreme boost pressures exceeding 100 PSI without exceeding peak cylinder pressure limits. Turbocharger pressure ratio (PR) must also be calculated as (P_ambient + P_boost) / (P_ambient - P_loss), where P_loss accounts for intake system restrictions. For practitioners selecting turbo hardware, this means a lower static CR directly expands the safe boost window, while a higher static CR compresses it.

How Do You Match a Turbo Compressor Map to Your Compression Ratio?

You match a turbo compressor map to your compression ratio by plotting your engine's corrected airflow and required pressure ratio onto the compressor efficiency islands. The target operating point should fall within the peak efficiency zone, typically between 70% and 75%, while staying clear of both the surge line and the choke boundary.

According to BorgWarner, failure to correctly match a turbocharger to an engine's compression ratio can lead to surge, where the compressor cannot overcome manifold pressure, causing rapid axial loading and potential bearing failure. Starting with your static CR and calculating the resulting ECR at your desired boost level ensures the chosen compressor map accommodates your actual operating conditions.

What Happens When Boost Pressure Is Too High for the Compression Ratio?

When boost pressure is too high for the compression ratio, the engine experiences dangerously elevated cylinder pressures and temperatures that trigger detonation in gasoline engines or exceed structural limits in diesels. Higher pressure and temperature accelerate the chemical reaction rate of the air-fuel mixture, which typically necessitates a reduction in ignition timing advance to prevent knock.

This is precisely why high-performance diesel engines run lower compression ratios when chasing extreme power. The trade-off between high compression with low boost versus low compression with high boost is a fundamental design decision; the former favors throttle response while the latter enables greater peak power on limited-octane fuels. Mismatching these variables risks catastrophic engine damage.

With turbo selection principles established, understanding typical diesel compression ratios helps narrow the right components for your specific engine.

What Is the Typical Compression Ratio for Diesel Engines?

The typical compression ratio for diesel engines ranges from 15:1 to 22:1, depending on the application. Light-duty diesel trucks, heavy-duty industrial diesels, and marine diesel engines each target different ratios to balance power, efficiency, and durability.

What Compression Ratio Do Light-Duty Diesel Trucks Use?

Light-duty diesel trucks use compression ratios typically between 15:1 and 17:1. These ratios balance efficient cold-start combustion with the ability to run moderate boost pressures from factory turbochargers. The Cummins 6.7L in Ram heavy-duty trucks, for example, runs a 16.0:1 ratio optimized for higher boost and torque output.

Compared to heavy-duty industrial engines, light-duty diesels favor slightly lower ratios. This allows room for turbo boost without pushing peak cylinder pressures beyond the limits of lighter-duty rotating assemblies and block castings. For anyone sourcing replacement turbochargers or injectors for these platforms, the compression ratio is the starting point for correct component matching.

What Compression Ratio Do Heavy-Duty Industrial Diesels Use?

Heavy-duty industrial diesels use compression ratios typically between 17:1 and 20:1. According to Caterpillar specifications, the Cat C15 utilizes a static compression ratio of 18.0:1 for 4-stroke cycle operation. This higher ratio extracts maximum thermal efficiency from each combustion event, which is critical in engines running continuously under heavy loads.

Industrial applications prioritize fuel economy and longevity over peak horsepower. The elevated compression generates higher cylinder temperatures and pressures at TDC, promoting more complete combustion of diesel fuel. These engines are built with heavier components to withstand the mechanical stresses that accompany ratios in this range.

What Compression Ratio Do Marine Diesel Engines Use?

Marine diesel engines use compression ratios that vary widely based on engine speed classification. Medium-speed marine diesels typically operate between 12:1 and 18:1, while slow-speed two-stroke marine engines can reach ratios above 20:1.

Slow-speed marine diesels, often running on heavy fuel oil, rely on very high compression to reliably ignite lower-quality fuels. Medium-speed four-stroke marine units share more design similarities with heavy-duty truck engines, though they are calibrated for sustained load at constant RPM rather than variable driving conditions. This constant-load duty cycle makes compression ratio selection especially important for matching turbocharger sizing and fuel injection timing in marine service.

With these application-specific ranges established, understanding how compression ratio interacts with detonation and knock reveals why diesel engines tolerate such high ratios.

How Does Compression Ratio Relate to Detonation and Knock?

Compression ratio relates to detonation and knock because higher ratios increase cylinder pressure and temperature, which can cause the air-fuel mixture to ignite uncontrollably. The sections below explain why diesel engines resist knock and how fuel quality interacts with compression ratio.

Why Are Diesel Engines Less Prone to Knock Despite Higher Ratios?

Diesel engines are less prone to knock despite higher ratios because they use compression ignition rather than spark ignition. In a diesel engine, fuel is injected directly into air that has already been compressed to extreme pressures and temperatures. Because no premixed air-fuel charge exists before ignition, there is no opportunity for uncontrolled auto-ignition ahead of a flame front. Knock in gasoline engines occurs when pockets of the premixed charge detonate spontaneously under pressure. Diesel combustion, by contrast, controls burn rate through injection timing and fuel delivery. This fundamental difference in ignition strategy is why diesels safely operate at ratios of 16:1 to 18:1, levels that would destroy a gasoline engine running pump fuel.

How Does Fuel Quality Interact with Compression Ratio?

Fuel quality interacts with compression ratio by determining the threshold at which uncontrolled detonation occurs. Higher-octane gasoline resists auto-ignition under greater cylinder pressures, allowing engines to run elevated compression ratios safely. Lower-octane fuel detonates more easily, forcing builders to limit compression or retard ignition timing. According to a 2025 On All Cylinders technical guide, milling a cylinder head or using a thinner head gasket reduces combustion chamber volume, increasing the static compression ratio for improved power. After any such modification, fuel grade becomes even more critical. Running a freshly raised ratio on inadequate octane invites persistent knock, which erodes piston crowns, damages bearings, and shortens engine life. Matching fuel quality to compression ratio protects both performance and long-term reliability.

Understanding how detonation limits interact with compression ratio is essential when selecting turbocharger components and tuning parameters.

Can You Change an Engine's Compression Ratio?

Yes, you can change an engine's compression ratio through several mechanical modifications. The approach depends on whether you need to raise or lower the ratio, and each method requires supporting upgrades to maintain reliability.

What Mechanical Modifications Alter Compression Ratio?

Mechanical modifications that alter compression ratio target the combustion chamber volume, piston geometry, or crankshaft stroke. The most common methods include:

• Milling the cylinder head removes material from the deck surface, reducing clearance volume and raising the ratio.

• Swapping head gaskets to a thinner profile decreases chamber volume for a higher ratio.

• Installing different pistons with taller domes increases the ratio, while dished or lower-profile pistons decrease it.

• Changing the crankshaft stroke alters displacement volume, shifting the ratio in either direction.

According to On All Cylinders, milling a cylinder head or using a thinner head gasket (e.g., 0.015-inch) can increase the static compression ratio from 9.0:1 to 9.6:1 for improved power. For high-boost diesel applications, builders often take the opposite approach, fitting lower-compression pistons to create headroom for extreme boost pressures.

What Supporting Parts Need Upgrading After a Ratio Change?

Supporting parts that need upgrading after a ratio change include fuel system components, engine management calibration, and structural hardware. A compression ratio change alters cylinder pressure, combustion temperature, and knock threshold, so the surrounding systems must be recalibrated to match.

• ECM tuning requires adjustments to injection timing, fuel rail pressure, and boost targets.

• Fuel injectors may need higher flow capacity to support revised fueling demands.

• Head studs or bolts should be upgraded to handle increased clamping loads from higher cylinder pressures.

• Turbocharger selection often changes because the effective compression ratio shifts under boost.

• Cooling system upgrades, such as larger intercoolers, help manage elevated intake temperatures.

Overlooking any single supporting component is one of the most common mistakes in ratio modification builds, often leading to detonation or premature hardware failure. With these mechanical and calibration factors addressed, understanding how fuel injection and ECM tuning interact with compression ratio completes the picture.

How Do Fuel Injection and ECM Tuning Work with Compression Ratio?

Fuel injection and ECM tuning work with compression ratio by adjusting injection timing, fuel rail pressure, and ignition parameters to match the engine's actual cylinder pressures and temperatures. These calibrations ensure the engine operates safely and efficiently at its given compression ratio, whether stock or modified.

The relationship between compression ratio and engine management creates a fundamental tuning decision. Higher compression ratios generate greater cylinder pressures, which demand precise fuel delivery timing to avoid detonation while extracting maximum efficiency. Lower compression ratios paired with forced induction require different calibration strategies, since the turbocharger, rather than mechanical compression alone, supplies the cylinder charge pressure.

ECM calibrations control injection events, including pilot injections, main injection timing, and post-injection cleanup pulses. When compression ratio changes through mechanical modifications or when boost levels increase, these injection parameters must be recalibrated. Rail pressure adjustments ensure proper atomization under the new pressure conditions, while timing shifts prevent peak cylinder pressures from exceeding safe thresholds.

Performance tuning communities frequently debate the trade-offs between "high compression/low boost" and "low compression/high boost" configurations, according to discussions on TurboFord forums. High compression with low boost is generally favored for sharper throttle response and better off-boost drivability. Low compression with high boost, by contrast, tends to produce greater absolute peak power on limited-octane fuels, since the lower static ratio leaves more headroom for aggressive boost targets before detonation becomes a concern.

For diesel applications specifically, this relationship is even more critical. Diesel engines rely entirely on compression ignition, so the ECM's injection timing directly controls when combustion begins relative to piston position. Even small mismatches between the compression ratio and fuel delivery calibration can increase NOx emissions, reduce fuel economy, or cause excessive cylinder pressure spikes that shorten component life.

Properly matched ECM tuning transforms compression ratio from a fixed mechanical limitation into an optimized variable within the broader engine management strategy.

How Should You Factor Compression Ratio into Diesel Turbo and Parts Sourcing?

You should factor compression ratio into diesel turbo and parts sourcing by matching every component to your engine's specific ratio and boost targets. The following sections cover how Goldfarb & Associates Inc supports that process and the key takeaways from this guide.

Can Goldfarb's Turbocharger and Diesel Parts Inventory Help You Match Components to Your Compression Ratio?

Yes, Goldfarb & Associates Inc can help you match components to your compression ratio. With an inventory of over 20,000 unique part numbers, including turbochargers, fuel injectors, injection pumps, CHRA cartridges, and nozzles, Goldfarb & Associates Inc stocks the range of diesel parts needed to build around a specific compression ratio and boost target.

Whether you run a 16:1 light-duty truck or an 18:1 heavy-duty industrial engine, the correct turbocharger size, injector flow rating, and fuel system calibration all depend on that ratio. Goldfarb & Associates Inc offers knowledgeable staff who can help identify the right part numbers for your application, along with same-day shipping on orders placed before 3:30 PM EST.

What Are the Key Takeaways About Compression Ratio, Power, Efficiency, and Turbo Selection?

The key takeaways about compression ratio, power, efficiency, and turbo selection are:

• Compression ratio determines how much mechanical work an engine extracts from each combustion event, directly affecting both power output and thermal efficiency.

• Higher ratios improve fuel economy but impose stricter limits on safe boost pressure, requiring careful turbocharger matching.

• Effective compression ratio under boost rises with every PSI added, so turbo sizing must account for the static ratio to avoid exceeding peak cylinder pressure limits.

• Compressor map placement matters; operating outside the 70% to 75% peak efficiency island wastes energy and risks surge or overspeed failure.

• Any change to compression ratio, whether from head milling, piston swaps, or gasket thickness, demands corresponding adjustments to injection timing, rail pressure, and ECM calibration.

For diesel engines specifically, the balance between compression ratio and boost strategy is not optional; it is the foundation of reliable performance. Sourcing parts that work together as a matched system, rather than upgrading components in isolation, prevents costly failures and ensures consistent results across daily driving, industrial, and marine applications.
