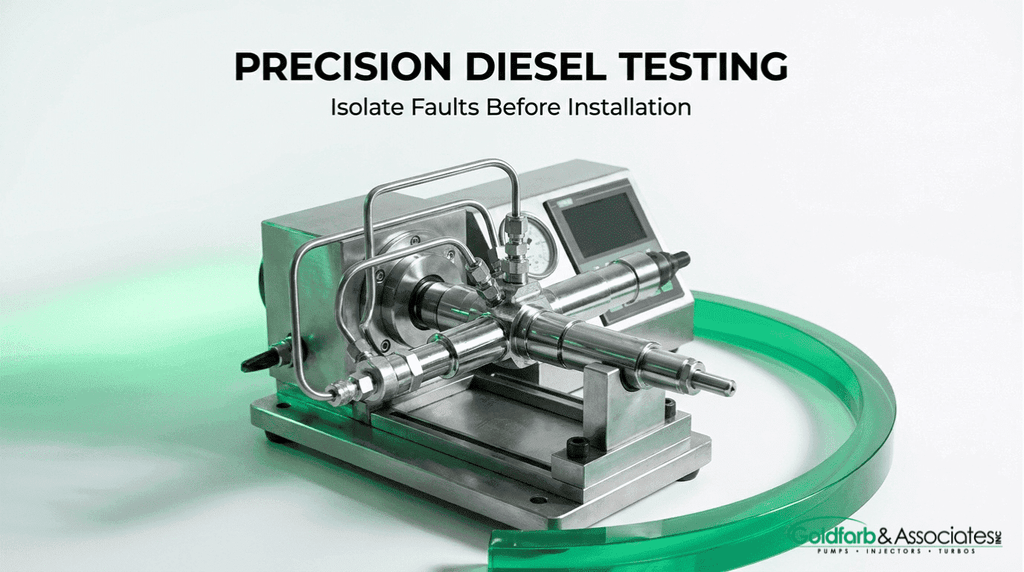

A common rail test bench is specialized diagnostic equipment that isolates diesel fuel system components from engine variables to measure injector and pump performance with repeatable precision. By separating pressure generation from the injection process, the bench evaluates flow rate, spray pattern, sealing integrity, and response time under controlled conditions that on-vehicle scanning cannot replicate.
This guide covers how test benches simulate engine conditions and record data, the step-by-step testing process, diagnosable components, fault detection capabilities, and sourcing quality parts after diagnosis.
Test benches simulate real operating pressures up to 2,500 bar with injection durations spanning 100 to 5,000 μs, replicating everything from idle pilot injections to full-load main events. Core measurements include fuel delivery volume, back leakage rate, opening response time, and spray pattern uniformity, all compared against OEM specification profiles.
The step-by-step process moves from secure injector mounting with brand-specific adapters, through gradual pressurization via a shared accumulator rail, to automated test cycles that generate pass/fail verdicts alongside raw diagnostic data.
Beyond injectors, benches diagnose high-pressure fuel pumps, rail pressure sensors, and pressure regulators. This component-level isolation catches faults like internal seal wear, nozzle deposit buildup, timing drift, and delivery volume errors that produce similar fault codes on vehicle scanners yet require different repairs.
Diesel repair shops, remanufacturing facilities, fleet maintenance teams, and engine rebuilders all depend on bench results to verify parts before installation. Accurate diagnosis also shapes smarter sourcing decisions, connecting confirmed faults to verified replacement injectors and pumps that meet original specifications.
What Does a Common Rail Test Bench Actually Do?
A common rail test bench replicates real engine fuel system conditions in a controlled environment, allowing technicians to isolate and evaluate individual injector and pump performance. The subsections below cover engine simulation, recorded measurements, and spray pattern evaluation.
How Does a Common Rail Test Bench Simulate Engine Conditions?
A common rail test bench simulates engine conditions by using an integrated electronic control system to drive high-pressure common rail injectors through programmable pressure, duration, and frequency cycles. The bench's high-pressure pump feeds a shared accumulator rail that distributes pressurized fuel evenly to each injector, maintaining constant pressure independent of engine speed and load.
According to Beacon Machine's CR317S specifications, pressure control ranges from 0 to 2,500 bar while injection duration spans 100 to 5,000 μs, covering everything from idle pilot injections to full-load main events. This range matters because cavitation tends to intensify under high rail pressure settings, particularly during ball valve opening and closing. Without the ability to hold those extreme pressures steady, subtle internal wear goes undetected. Few diagnostic methods outside a dedicated bench can replicate these conditions with repeatable precision.
What Measurements Does a Common Rail Test Bench Record?
A common rail test bench records several critical fuel system parameters that reveal injector health and performance consistency. The core measurements include:
-
Fuel delivery volume, captured across idle, partial, and full-load injection cycles.
-
Back leakage rate, quantifying internal seal integrity by measuring fuel escaping past worn components.
-
Opening and closing response time, verifying solenoid or piezo actuator speed in microseconds.
-
Rail pressure stability, confirming the accumulator maintains target pressure throughout each test cycle.
-
Injection duration accuracy, comparing commanded pulse width against actual fuel delivery.
These data points, when compared against OEM specification profiles, pinpoint whether an injector falls within acceptable tolerances or requires service. For technicians managing mixed fleets, this objective measurement approach eliminates guesswork that on-vehicle scanning tools often leave behind.
How Does a Test Bench Evaluate Injector Spray Patterns?
A test bench evaluates injector spray patterns by combining visual inspection with quantitative flow analysis. The process begins with a pop test to verify opening pressure, followed by observation of the spray cone for symmetry, atomization quality, and drip-free cutoff.
When back leakage exceeds specification during a bench check, internal component wear is typically the cause, which also degrades spray quality. Compatibility with major injector brands such as Bosch, Delphi, Denso, and Siemens ensures each test references the correct OEM spray angle and flow profile from comprehensive data plans containing thousands of injector specifications. Pattern irregularities, from a collapsed cone to post-injection dribble, signal nozzle seat erosion or needle sticking that would cause incomplete combustion in service.
Understanding what a test bench measures sets the stage for how each step of the testing process unfolds.
How Does a Common Rail Test Bench Work Step by Step?
A common rail test bench works step by step by mounting the injector, pressurizing fuel to precise levels, running automated test cycles, and interpreting the results. Each stage below covers mounting, pressurization, and result interpretation.
How Is a Common Rail Injector Mounted on the Bench?
A common rail injector is mounted on the bench using dedicated clamping fixtures that secure it in the exact orientation it would occupy inside an engine. The technician selects an adapter matched to the injector's brand and model, then locks it into the bench's test rail connection. Fuel supply and return lines are attached to replicate the closed-loop circuit found in a running diesel system.
Secure mounting is critical because modern common rail diesel systems run injectors at pressures typically between 1,400 and 2,500 bar, roughly 20,000 to 36,000 psi, according to G2 Diesel Products. Even minor misalignment at those pressures can produce inaccurate flow readings or dangerous leaks. Once the injector is seated and all fittings are torque-verified, the bench is ready to pressurize fuel.
How Does the Bench Pressurize Fuel to Testing Levels?
The bench pressurizes fuel to testing levels through a high-pressure pump that feeds a shared accumulator rail, replicating the vehicle's own common rail architecture. An electronic pressure control valve regulates output from zero up to the maximum bar rating of the bench. The operator, or the bench's software, sets a target pressure that matches the injector's OEM specification.
Pressure ramps up gradually while sensors confirm stability before injection cycles begin. This separation of pressure generation from the injection event itself allows the bench to isolate injector behavior from pump variables. For technicians, the ability to hold a rock-steady rail pressure across multiple test pulses is what makes bench data far more repeatable than any reading taken under the hood.
How Are Test Results Interpreted After a Bench Cycle?
Test results after a bench cycle are interpreted by comparing measured values against OEM specification tables stored in the bench's software. The system displays fuel delivery volume, return flow (leakback), spray pattern uniformity, and response time for each programmed pulse width.
Key interpretation points include:
-
Delivery volume above or below the OEM window signals worn nozzle orifices or restricted passages.
-
Excessive return flow typically indicates internal seal wear or valve seat erosion.
-
Irregular spray pattern points to partial nozzle blockage or tip damage.
-
Slow response time suggests solenoid degradation or sticking needle valves.
Most benches generate a pass/fail summary alongside raw data, giving technicians a clear verdict on whether the injector is serviceable, needs reconditioning, or requires replacement. Understanding how results map to specific faults directly shapes which common rail components a technician investigates next.
What Common Rail Components Can a Test Bench Diagnose?
A common rail test bench can diagnose injectors, high-pressure fuel pumps, rail pressure sensors, and pressure regulators. Each component undergoes isolated testing to pinpoint faults that on-vehicle scanning often misses.
Common Rail Injectors
Common rail injectors are the most frequently diagnosed component on a test bench. The bench evaluates each injector's flow rate, spray pattern, response time, and back leakage under controlled pressure cycles. Diesel repair shops use factory software and test benches to perform these diagnostic services, since any diesel component with electronic control can be diagnosed with the correct equipment. Solenoid and piezo injector types each require specific test profiles, and benches store thousands of manufacturer data plans covering Bosch, Delphi, Denso, and Siemens units. Isolating a single injector on the bench reveals wear or deposit buildup that cylinder-balance tests alone cannot quantify.
High-Pressure Fuel Pumps
High-pressure fuel pumps are diagnosed by measuring their ability to generate and sustain target rail pressures consistently. The bench drives the pump through varying speed and load conditions while monitoring output volume, pressure stability, and internal leakage rates. A pump that cannot hold pressure within specification indicates worn plungers, damaged seals, or a failing metering valve. Because the pump feeds every injector in the system, even a small output deficiency creates cascading performance issues. Dedicated fuel pump diagnostic tools isolate pump faults from injector or sensor problems that produce similar symptoms during on-vehicle diagnostics.
Fuel Rail Pressure Sensors
Fuel rail pressure sensors are diagnosed by comparing their voltage or current output against known pressure values generated on the bench. The bench applies precise, incremental pressure steps while recording the sensor's signal response in real time. According to maintenance guidance published through Emerald Insight, a nozzle "dribble" test works a hand pump at a set pressure to confirm no fuel leaks before the intended injection event, and similar controlled-pressure methodology validates sensor accuracy. A sensor that reads outside its calibrated range causes incorrect fueling commands from the engine control module. Catching this drift on the bench prevents misdiagnosis of injector or pump faults.
Common Rail Pressure Regulators
Common rail pressure regulators are diagnosed by testing their ability to maintain stable rail pressure across the bench's full operating range. The bench commands target pressures while monitoring regulator response, checking for overshoot, sluggish adjustment, or inability to bleed excess pressure. A faulty regulator may allow rail pressure to spike beyond safe limits or drop below the threshold needed for proper atomization. For most diesel technicians, regulator testing on the bench is the only reliable way to distinguish a failing regulator from a weak pump, since both produce similar low-rail-pressure fault codes on vehicle scanners.
With each component's bench data in hand, understanding why this off-engine approach outperforms on-vehicle testing adds further context.
Why Is Common Rail Test Bench Diagnostics More Accurate Than On-Vehicle Testing?
Common rail test bench diagnostics is more accurate than on-vehicle testing because the bench completely isolates each component from engine variables, enabling precise, repeatable measurement. This separation eliminates electrical interference, vibration, and thermal factors that compromise on-vehicle readings.
A high-pressure common rail test bench separates the generation of injection pressure from the injection process itself. This isolation allows technicians to evaluate flow rate, pressure, sealing, and response time without the noise introduced by a running engine's mechanical and electronic systems. On-vehicle diagnostics must interpret injector behavior through the engine's own ECU, which filters and sometimes misinterprets raw component data.
Traditional on-vehicle checks rely on methods like "pop tests" to check opening pressure and visual inspection of spray patterns. While these identify straightforward issues, electronic test benches provide far more detailed flow rate and response data that reveal subtle faults invisible during vehicle-mounted assessment.
According to Crystal Test Bench, modern test benches generate detailed data reports identifying potential failures before engine installation, far outperforming traditional on-vehicle diagnostics in both accuracy and reproducibility. This pre-installation verification means technicians catch problems that would otherwise surface only after reassembly, saving significant labor and diagnostic time.
For professionals who depend on reliable diesel fuel system components, this level of diagnostic precision directly informs whether a part should be repaired, remanufactured, or replaced entirely. Understanding what test bench results reveal helps guide smarter sourcing decisions for injectors, pumps, and related components.
What Problems Can a Common Rail Test Bench Detect?
A common rail test bench detects faults related to fuel leakage, spray quality, injection timing, and delivery volume. The following subsections cover each diagnostic category.
How Does a Test Bench Identify Injector Leakback Faults?
A test bench identifies injector leakback faults by measuring the volume of fuel that escapes past internal sealing surfaces during pressurized test cycles. The bench pressurizes the injector to specified rail pressure, then captures and quantifies any fuel returning through the leak-off port. When back leakage exceeds the manufacturer's leak-off test specs, the usual cause is wear in internal components such as the control valve, needle seat, or guide bore.
According to research published in the Combustion Engines Journal, accuracy and testability in bench design are critical for detecting subtle faults that on-vehicle electronic control units might misdiagnose or fail to detect entirely. Even minor leakback that seems insignificant on individual injectors can compound across a multi-cylinder engine, causing hard starts, rough idle, and power loss. Bench isolation makes these small deviations measurable and actionable.
How Does a Test Bench Detect Poor Atomization?
A test bench detects poor atomization by analyzing the spray pattern each injector produces under controlled pressure. Operators visually inspect and, on advanced benches, digitally capture the fuel spray cone to evaluate droplet uniformity, spray angle, and distribution symmetry. Faults that cause poor atomization include:
-
Nozzle tip carbon deposits restricting orifice geometry
-
Eroded or damaged spray holes altering fuel dispersion
-
A sticking needle that delays or interrupts full nozzle opening
Poor atomization leads to incomplete combustion, increased emissions, and reduced fuel efficiency. Because the bench eliminates variables like engine vibration and exhaust backpressure, even subtle spray irregularities become visible. Catching these defects before installation prevents costly downstream problems in the combustion chamber.
How Does a Test Bench Reveal Incorrect Injection Timing?
A test bench reveals incorrect injection timing by measuring the exact microsecond delay between the electronic activation signal and actual fuel delivery. The bench sends a precisely timed command pulse, then records when fuel physically exits the nozzle. Any deviation between the commanded and actual injection event indicates a timing fault.
Common causes of timing errors include worn solenoid response, degraded piezo actuator performance, and control valve stiction. Since modern diesel engines rely on multiple injection events per cycle, including pilot, main, and post injections, even a timing shift of a few hundred microseconds can increase noise, raise emissions, and reduce power output. Bench-level precision isolates these timing discrepancies far more reliably than in-engine diagnostics.
How Does a Test Bench Uncover Fuel Delivery Volume Errors?
A test bench uncovers fuel delivery volume errors by collecting and measuring the exact quantity of fuel each injector dispenses across multiple programmed pulse widths. The bench cycles the injector through idle, partial load, and full load simulations, then compares measured volumes against OEM specifications for each condition.
Delivery deviations typically result from:
-
Internal deposit buildup restricting fuel passages
-
Worn nozzle orifices allowing excess fuel flow
-
Weak return spring tension altering needle lift height
Volume errors as small as a few milliliters per minute can create cylinder-to-cylinder imbalances, causing rough running and elevated exhaust temperatures. Identifying these discrepancies on the bench ensures balanced fuel delivery before the injector returns to service.
With specific faults identified, the next step is understanding who depends on these diagnostic results.
Who Relies on Common Rail Test Bench Results?
Common rail test bench results serve diesel repair shops, remanufacturers, fleet maintenance operations, and engine rebuilders. Each relies on precise bench data to verify component performance before installation or return to service.
-
Diesel repair shops use factory software and test benches to perform diagnostic services, since anything diesel with a computer can be diagnosed with the correct equipment.
-
Remanufacturing facilities depend on bench results to validate that rebuilt injectors and pumps meet original specifications before resale.
-
Fleet maintenance teams use test data alongside proven fuel injector maintenance practices to schedule preventive replacements, reducing unplanned downtime across truck, construction, and agricultural equipment.
-
Engine rebuilders reference bench cycle reports to confirm each component meets OEM tolerances during assembly.
-
Marine and industrial operators rely on verified test results to ensure fuel system reliability in applications where engine failure carries high safety and financial risk.
The remanufacturing segment, in particular, has grown rapidly. According to a 2025 Yahoo Finance report, the remanufactured automotive parts market reached $66.11 billion, driven by cost savings of 40 to 60 percent compared to new parts. That growth makes accurate bench verification even more critical for suppliers and shops handling remanufactured diesel components. Understanding who depends on these results clarifies what to prioritize when selecting the right test bench.
What Should You Look for When Choosing a Common Rail Test Bench?
When choosing a common rail test bench, you should look for pressure range capability, injector brand compatibility, measurement precision, and a comprehensive data library. These factors determine whether a bench can handle current and future diagnostic demands.
-
Pressure range: The bench should cover 0 to 2,500 bar to test the full spectrum of modern common rail injectors, which operate between 1,400 and 2,500 bar according to G2 Diesel Products.
-
Brand compatibility: Key purchase criteria include compatibility with major injector brands such as Bosch, Delphi, Denso, and Siemens, along with comprehensive data plans containing thousands of injector profiles.
-
Flow measurement accuracy: Look for benches capable of measuring flow rates up to 4,000 ml/min with injection durations from 100 to 5,000 μs, ensuring the bench can simulate realistic engine operating conditions.
-
Electronic control system: A built-in electronic control unit that independently drives both solenoid and piezo injectors is essential, since piezo injectors open in as little as 150 microseconds.
-
Data reporting: The bench should generate detailed diagnostic reports covering flow rate, pressure, sealing, and injector response to support accurate fault identification before engine installation.
A bench that checks all these boxes will serve both current rebuilds and evolving diesel technology. With testing criteria established, the connection between accurate diagnostics and sourcing a high-quality fuel injection pump or injector becomes clear.
How Does Proper Testing Relate to Sourcing Quality Diesel Fuel System Parts?
Proper testing relates to sourcing quality diesel fuel system parts by confirming whether a component needs replacement and validating that any new or remanufactured part meets original specifications. The sections below cover how Goldfarb & Associates supports this process and the key takeaways about common rail test bench purpose.
Can Goldfarb's Remanufactured Injectors and Pumps Help After Test Bench Diagnosis?
Yes, Goldfarb & Associates remanufactured injectors and pumps can help after test bench diagnosis by providing verified replacement components matched to the faults identified during testing. Once a common rail test bench confirms issues like deposit formation on injector and nozzle surfaces, which can cause sticking needles and disrupted injection dynamics, the next step is sourcing a reliable part. Goldfarb & Associates maintains an inventory of over 20,000 unique part numbers, including remanufactured fuel injectors and injection pumps covering Bosch, Delphi, Denso, and other major brands. Every part undergoes hand inspection and must pass a full quality checklist before shipping. Goldfarb & Associates also offers same-day shipping on orders placed before 3:30 PM EST, minimizing vehicle downtime after diagnosis.
What Are the Key Takeaways About Common Rail Test Bench Purpose?
The key takeaways about common rail test bench purpose center on precision, reliability, and informed decision-making:
-
A common rail test bench isolates fuel system components from engine variables, enabling accurate measurement of flow rate, spray pattern, pressure response, and leakback.
-
Bench diagnostics detect subtle faults that on-vehicle scanning tools often miss or misdiagnose.
-
Test results guide whether a component needs cleaning, recalibration, or full replacement.
-
Validated testing data ensures that remanufactured or new replacement parts meet OEM performance standards before installation.
-
Proper bench testing reduces repeat repairs and protects engine longevity.
For technicians and fleet managers alike, pairing thorough test bench diagnosis with quality-assured parts from a trusted supplier like Goldfarb & Associates closes the loop between identifying a problem and resolving it with confidence.
