Closed loop ECM operation is a feedback-driven control mode where the Engine Control Module continuously adjusts fuel delivery using real-time oxygen sensor data, while open loop operation relies on pre-programmed fuel maps without exhaust gas correction.
This guide covers ECM architecture and loop control fundamentals, how each mode handles fuel delivery and emissions, the conditions that trigger mode transitions, diesel-specific loop applications, and diagnosing stuck open loop failures.
The ECM's core function is regulating injection quantity, ignition timing, and emissions output through continuous sensor-driven control loops that evolved from basic electronic fuel injection systems in the 1950s into the sophisticated feedback architectures used today. Understanding this foundation clarifies why loop mode selection matters for every engine management decision.
In closed loop, the ECM reads oxygen sensor voltage cycling between 0.10 V and 0.90 V around a 0.45 V stoichiometric midpoint, then adjusts short-term and long-term fuel trims to hold the air-fuel ratio at 14.7:1. Open loop delivers fuel from static lookup tables indexed to throttle position, engine speed, and coolant temperature, with no exhaust correction available.
The ECM transitions between modes based on coolant temperature reaching approximately 50°C, oxygen sensor readiness confirmed by consistent voltage cross-counts, and load conditions such as wide-open throttle that force intentional reversion to open loop for engine protection.
For diesel engines, loop mode determines whether SCR urea dosing, EGR positioning, and turbocharger boost operate with real-time feedback or fixed duty-cycle maps. Extended open loop operation increases fuel consumption and accelerates catalyst degradation, while closed loop maintains emissions compliance across varying conditions.
When the ECM cannot enter closed loop due to sensor faults or temperature circuit failures, specific diagnostic trouble codes and measurable symptoms reveal the stuck condition before cascading component damage occurs.
What Is an ECM and Why Does It Control Loop Operation?
An ECM (Engine Control Module) is the onboard computer that manages fuel delivery, ignition timing, and emissions output in modern engines. The ECM controls loop operation to continuously optimize the air-fuel ratio for efficiency and regulatory compliance. This section covers the ECM's core function, its historical development, and how feedback loops enable real-time engine management.
What Is the ECM's Core Function in Engine Management?
The ECM's core function in engine management is regulating fuel injection quantity, ignition timing, and emissions control in real time. It processes data from sensors throughout the engine, including mass air flow sensors, coolant temperature sensors, and oxygen sensors, then adjusts actuator outputs accordingly.
Each decision the ECM makes follows a control loop: sensor input is compared against target values stored in calibration tables, and corrections are applied within milliseconds. Without this continuous cycle of measurement and adjustment, engines would run on fixed parameters unable to adapt to changing conditions. For diesel applications, the ECM also governs injection pressure, turbocharger boost, and exhaust aftertreatment systems like SCR and EGR.
How Did ECM-Based Loop Control Evolve in Automotive History?
ECM-based loop control evolved from basic electronic fuel injection into sophisticated feedback-driven systems over several decades. In 1956, Bendix introduced "Electrojector," a true multipoint electronic fuel injection system that became optional in 1958 on Chrysler performance models, according to the Automotive History Preservation Society.
Those early systems operated entirely in open loop, relying on pre-set fuel maps with no exhaust gas feedback. Reliability challenges meant most of the 35 Electrojector-equipped vehicles were converted back to carburetors. By the early 1970s, tightening emissions standards drove the adoption of oxygen sensors and closed-loop feedback, allowing ECMs to self-correct the air-fuel mixture in real time. This shift from static calibration to dynamic sensor-driven control remains the foundation of every modern engine management system.
Why Does Feedback-Based Loop Operation Matter for Engine Efficiency?
Feedback-based loop operation matters for engine efficiency because it allows the ECM to correct fuel delivery errors that fixed calibration tables cannot anticipate. Variables such as altitude, humidity, fuel quality, and component wear constantly shift optimal fueling targets.
In closed loop mode, oxygen sensor voltage signals tell the ECM whether combustion is running lean or rich, prompting immediate fuel trim adjustments. Without this feedback cycle, the engine defaults to conservative, pre-programmed maps that typically deliver excess fuel as a safety margin. That overcorrection wastes fuel and increases tailpipe emissions. Real-time loop correction is especially valuable in high-humidity conditions, where air density changes significantly affect combustion. Understanding how the ECM toggles between these modes clarifies the differences between closed loop and open loop operation explored next.
What Does Closed Loop ECM Operation Mean?
Closed loop ECM operation means the engine control module actively adjusts fuel delivery using real-time sensor feedback. The sections below cover which sensors participate, how fuel trims respond, and how oxygen sensor data drives continuous correction.
What Sensors Are Active During Closed Loop Mode?
The sensors active during closed loop mode include the oxygen sensor (O2 sensor), coolant temperature sensor, mass air flow (MAF) sensor, and manifold absolute pressure (MAP) sensor. The oxygen sensor serves as the primary feedback element, measuring exhaust gas oxygen content to determine whether the air-fuel mixture is running rich or lean.
According to research published by ResearchGate on chemical sensor modeling, a solid-state electrochemical gas sensor operated at 0.45 V effectively measures oxygen partial pressure for combustion feedback control. The coolant temperature sensor confirms the engine has reached operating temperature, while the MAF and MAP sensors provide airflow data the ECM cross-references against exhaust readings. Without all these inputs reaching active status, the ECM cannot sustain closed loop control.
What Fuel Trim Adjustments Occur in Closed Loop?
Fuel trim adjustments in closed loop involve both short-term fuel trim (STFT) and long-term fuel trim (LTFT). STFT responds to momentary oxygen sensor fluctuations, adding or subtracting small percentages of fuel in real time. When STFT corrections consistently trend in one direction, the ECM writes those patterns into LTFT as a learned baseline adjustment.
-
STFT typically fluctuates within ±10% under normal conditions.
-
LTFT stores persistent corrections that compensate for gradual changes, such as injector wear or vacuum leaks.
-
Both trims reset to neutral when the ECM reverts to open loop operation.
This dual-trim strategy keeps the air-fuel ratio tightly centered on the stoichiometric target of 14.7:1, a precision that pre-programmed maps alone cannot maintain over time.
How Does the ECM Use Oxygen Sensor Feedback in Closed Loop?
The ECM uses oxygen sensor feedback in closed loop by continuously comparing exhaust oxygen voltage against the stoichiometric midpoint of 0.45 V. A reading above 0.45 V signals a rich condition; a reading below signals lean. The ECM then adjusts injector pulse width accordingly, cycling corrections several times per second.
For the ECM to begin this process, specific conditions must first be met: the oxygen sensor must reach active status, and engine coolant temperature must exceed a predetermined setpoint, often around 50°C (122°F). Once active, the feedback loop keeps combustion balanced. According to findings from the 2025 CarMD Vehicle Health Index, ignoring a failing oxygen sensor can reduce fuel economy by as much as 40%.
Beyond gasoline applications, this same feedback principle extends to diesel systems. Closed loop control of EGR rate using an oxygen sensor enables precise NOx reduction, while SCR systems use zirconia NOx sensors for closed loop urea dosing to cut diesel emissions. Maintaining healthy oxygen sensors is one of the most cost-effective ways to preserve both fuel efficiency and emissions compliance across engine types.
With closed loop operation defined, understanding open loop behavior reveals what changes when this feedback is absent.
What Does Open Loop ECM Operation Mean?
Open loop ECM operation means the engine control module delivers fuel based solely on pre-programmed data, without real-time oxygen sensor correction. The following sections explain when this mode activates, how fueling is calculated, and which internal maps the ECM references.
When Does the ECM Default to Open Loop on Cold Start?
The ECM defaults to open loop on cold start because the oxygen sensor has not yet reached operating temperature and cannot provide reliable exhaust feedback. According to data referenced on GM Forum, an engine requires the oxygen sensor to reach active status and engine coolant temperature to exceed a predetermined setpoint, often around 50°C (122°F), before closed loop can engage. Until those thresholds are met, the ECM ignores O2 sensor voltage entirely. This warm-up period typically lasts 30 to 90 seconds depending on ambient conditions, during which fuel delivery runs richer than stoichiometric to ensure stable idle and prevent cold-engine misfires.
How Does the ECM Calculate Fueling Without Sensor Feedback?
The ECM calculates fueling without sensor feedback by referencing intake air volume, engine speed, and coolant temperature against internally stored lookup tables. Mass Air Flow (MAF) sensor readings provide real-time airflow data, which the ECM cross-references with RPM to determine base pulse width for the injectors. Coolant temperature acts as an enrichment modifier; colder engines receive longer injector pulses. Throttle position signals further refine calculations during acceleration. Because no exhaust gas correction occurs, fuel trim values remain static. This approach prioritizes engine protection and drivability over emissions precision, making it inherently less efficient than closed loop correction.
What Pre-Programmed Maps Does the ECM Use in Open Loop?
The pre-programmed maps the ECM uses in open loop include fuel maps, ignition timing maps, and idle air control tables calibrated during factory development. During high load and wide open throttle operation, the ECM relies on pre-programmed fuel maps and Mass Air Flow readings rather than closed-loop feedback to ensure maximum engine power, as documented in Project-Car technical references. These maps plot injector pulse width against RPM and load axes. Separate cold-start enrichment tables add fuel based on coolant temperature gradients. For most drivers, these fixed calibrations work adequately during warm-up, but they cannot adapt to altitude changes, fuel quality variations, or component wear the way closed loop feedback does.
Understanding open loop limitations clarifies why transitioning to closed loop improves both fuel delivery and emissions control.

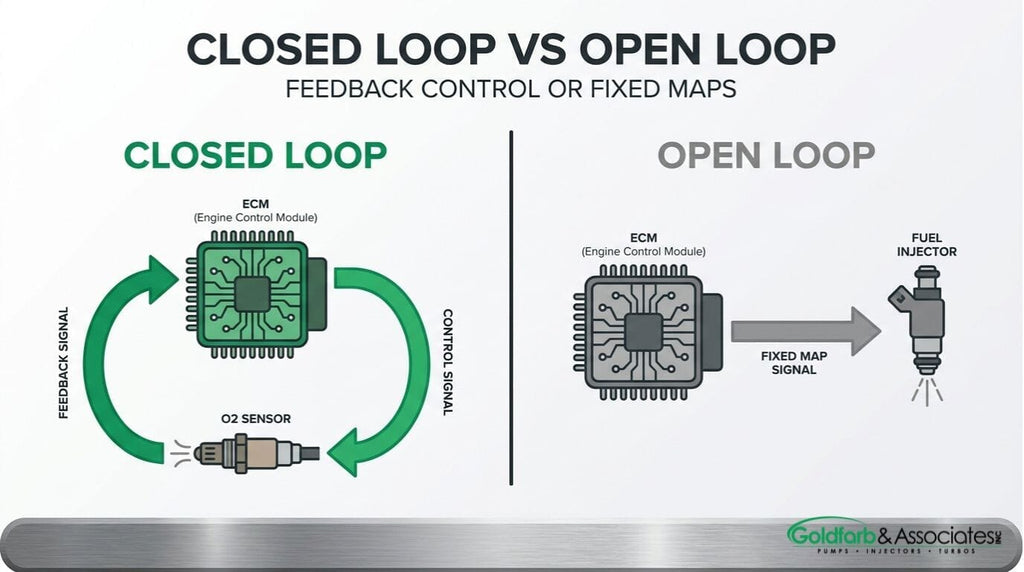

How Do Closed Loop and Open Loop Differ in Fuel Delivery?
Closed loop and open loop differ in fuel delivery through how the ECM adjusts injection timing, calibrates fuel quantity, and manages emissions output. According to a U.S. Department of Transportation report, closed-loop control systems provide significant fuel economy improvements over open-loop control, particularly in conditions of high ambient humidity such as 75% at 90°F.
How Does Fuel Injection Timing Differ Between the Two Modes?
Fuel injection timing differs between the two modes in how the ECM determines when to fire injectors. In closed loop, the ECM continuously adjusts injector pulse timing based on real-time oxygen sensor feedback, correcting delivery several times per second. In open loop, injection timing follows pre-programmed fuel maps without live correction.
When air flow sensors malfunction and stick open, they indicate a high air flow rate incorrectly, causing the EFI system to meter excessive fuel. This problem compounds in open loop because no feedback mechanism exists to detect and correct the over-fueling condition. Closed loop would catch the discrepancy through exhaust gas analysis and trim the pulse width accordingly.
How Does Fuel Quantity Calibration Differ Between the Two Modes?
Fuel quantity calibration differs between the two modes in precision and adaptability. Closed loop calibrates fuel quantity dynamically; the ECM reads exhaust oxygen content, compares it against stoichiometric targets, and adjusts short-term and long-term fuel trims to deliver the exact amount needed. Open loop calibrates fuel quantity statically, relying on lookup tables indexed to throttle position, engine speed, and coolant temperature.
This distinction matters most during variable operating conditions. Altitude changes, fuel quality variations, and component aging all shift ideal fuel requirements. Closed loop compensates automatically, while open loop delivers the same pre-set quantity regardless of real-world drift. For diesel applications especially, this calibration gap can accelerate injector wear over time.
How Does Emissions Output Differ Between the Two Modes?
Emissions output differs between the two modes primarily in tailpipe pollutant levels. Closed loop maintains the air-fuel ratio near stoichiometry, which allows catalytic converters to operate at peak efficiency for reducing hydrocarbons, carbon monoxide, and nitrogen oxides simultaneously. Open loop runs richer or leaner than ideal, producing elevated emissions that exceed converter processing capacity.
-
Closed loop targets a 14.7:1 air-fuel ratio, keeping all three pollutant types within converter treatment range.
-
Open loop enrichment during cold start or wide-open throttle increases unburned hydrocarbons and carbon monoxide.
-
Extended open loop operation prevents the three-way catalyst from reaching its optimal conversion window.
Understanding these fuel delivery differences helps clarify why ECM diagnostics focus heavily on loop status during emissions testing.
What Triggers the ECM to Switch Between Open and Closed Loop?
The ECM switches between open and closed loop when specific sensor readiness, temperature, and load conditions change. The subsections below cover coolant temperature thresholds, oxygen sensor readiness, and high-load reversion triggers.
What Coolant Temperature Threshold Triggers the Switch?
The coolant temperature threshold that triggers the switch to closed loop is typically around 50°C (122°F). Until the engine coolant temperature sensor reports that the engine has reached this predetermined setpoint, the ECM remains in open loop and relies on pre-programmed fuel maps. According to GM Forum technical documentation, for an engine to enter closed-loop operation, engine coolant temperature must exceed this threshold alongside other readiness conditions being satisfied. Once warmup is complete, the ECM gains confidence that combustion conditions are stable enough for real-time feedback correction. For most vehicles, this transition happens within two to four minutes of a cold start, depending on ambient temperature and engine design.
What Oxygen Sensor Readiness Conditions Must Be Met?
The oxygen sensor readiness conditions that must be met include the sensor reaching operating temperature and producing a valid voltage signal. A cold oxygen sensor generates no usable output, so the ECM waits until the sensor's internal heater circuit brings the zirconia element to its active state. Once ready, the sensor must cycle between approximately 0.10 V (lean) and 0.90 V (rich), pivoting near the 0.45 V stoichiometric midpoint several times per second, as documented by Fluke Corporation. Only after detecting consistent cross-counts does the ECM trust the signal enough to close the feedback loop. If the sensor remains sluggish or flatlines, the ECM will hold open loop indefinitely and may set a diagnostic trouble code.
What Engine Load Conditions Force a Return to Open Loop?
The engine load conditions that force a return to open loop include wide-open throttle (WOT) and sustained high-load demands. During these events, the ECM prioritizes power delivery over emissions optimization. According to Project-Car technical references, during high load and wide-open throttle operation, the ECM relies on pre-programmed fuel maps and Mass Air Flow readings rather than closed-loop feedback to ensure maximum engine power. This intentional enrichment protects against detonation and thermal damage by adding extra fuel for combustion cooling. Once the driver releases the throttle and load drops, the ECM re-enters closed loop within seconds, resuming oxygen sensor feedback correction.
Understanding these mode transitions helps diagnose fueling issues tied to sensors, temperature circuits, or load-sensing components.
How Does Loop Mode Affect Diesel Engine Performance?
Loop mode affects diesel engine performance by influencing fuel economy, emissions compliance, and turbocharger boost control. The following subsections cover each impact area.
How Does Extended Open Loop Operation Affect Fuel Economy?
Extended open loop operation affects fuel economy by forcing the ECM to rely solely on pre-programmed fuel maps rather than real-time sensor corrections. Without closed-loop feedback, the diesel ECM cannot compensate for variables like ambient temperature shifts, altitude changes, or injector wear. This typically results in over-fueling, since the conservative base maps prioritize engine protection over efficiency. For diesel applications where precise injection quantity and timing directly determine combustion efficiency, even small calibration errors compound into measurable fuel waste over extended operating hours. Transitioning back to closed-loop operation as quickly as possible remains the most effective strategy for preserving fuel economy in diesel engines.
How Does Closed Loop Operation Improve Emissions Compliance?
Closed loop operation improves emissions compliance by enabling the ECM to continuously adjust fueling, EGR rates, and aftertreatment dosing based on real-time exhaust gas sensor data. SCR systems using closed-loop feedback electronic control of urea dosing with zirconia NOx sensors effectively reduce diesel NOx emissions and prevent secondary ammonia slip. As J.N. Reddy noted in the Bendix Technical Journal, closed-loop emissions control for automotive engines was a critical development for meeting emerging environmental standards in the early 1970s. That foundational principle still applies; modern diesel engines depend on closed-loop corrections to maintain compliance with increasingly strict NOx and particulate limits across their full durability window.
How Does Loop Mode Influence Turbocharger Boost Control?
Loop mode influences turbocharger boost control by determining whether the ECM adjusts wastegate or VGT vane position using measured boost pressure feedback or fixed duty-cycle maps. In closed-loop boost control, a manifold absolute pressure sensor provides continuous data, allowing the ECM to correct for turbo lag, altitude variation, and component aging in real time. Open-loop boost control applies predetermined actuator positions based on engine speed and load alone, which can result in under-boost at altitude or over-boost with worn seals. For diesel engines operating under variable loads in construction, agricultural, or marine environments, closed-loop boost management delivers more consistent power output and protects against compressor surge.
With loop mode fundamentals established, recognizing symptoms of a stuck open loop condition helps prevent costly diesel engine damage.
What Problems Indicate a Stuck Open Loop Condition?
A stuck open loop condition produces diagnostic trouble codes, sensor-related symptoms, and measurable performance losses. The following subsections cover the specific DTCs, oxygen sensor failure signs, and consequences of prolonged open loop operation.
What Diagnostic Trouble Codes Signal Open Loop Failure?
The diagnostic trouble codes that signal open loop failure include P0125 (insufficient coolant temperature for closed loop fuel control), P0130 through P0167 (oxygen sensor circuit malfunctions), and P0170/P0173 (fuel trim malfunction). These codes indicate the ECM has detected a condition preventing the transition from open loop to closed loop. A P0125 code, for example, points to the engine coolant temperature sensor reporting values below the threshold needed for closed loop entry. Oxygen sensor circuit codes typically reveal wiring faults, heater circuit failures, or sensor degradation that leaves the ECM without valid exhaust gas readings. Scanning for these codes first isolates whether the stuck condition originates from temperature inputs or exhaust feedback sensors.
What Symptoms Does a Failed Oxygen Sensor Cause?
A failed oxygen sensor causes rich fuel mixtures, increased exhaust emissions, rough idling, and significant fuel economy loss. Without accurate voltage signals cycling between lean and rich conditions, the ECM cannot correct the air-fuel ratio. The engine then defaults to conservative pre-programmed fuel maps that tend to run rich for component protection. According to the 2025 CarMD Vehicle Health Index, ignoring a failing oxygen sensor can hurt fuel economy by as much as 40%. Drivers often notice a sulfur smell from the exhaust, black tailpipe residue, and a persistent check engine light. Catalytic converter damage frequently follows because unburned fuel overheats the catalyst substrate. Replacing a degraded sensor promptly prevents these cascading failures.
What Happens When the ECM Cannot Enter Closed Loop?
When the ECM cannot enter closed loop, it relies entirely on pre-programmed fuel maps and mass air flow readings without real-time exhaust feedback correction. This forces the engine to operate with fixed fuel enrichment values that cannot adapt to changing conditions such as altitude, temperature, or component wear. Fuel consumption rises substantially, and tailpipe emissions of hydrocarbons and carbon monoxide increase because the air-fuel ratio drifts from stoichiometric targets. Extended open loop operation also accelerates catalytic converter degradation, since the converter depends on near-stoichiometric exhaust to function efficiently. For most vehicles, this condition makes passing emissions testing impossible. Addressing the root cause, whether a faulty sensor, wiring issue, or coolant temperature fault, restores the ECM's ability to self-correct.
Identifying these stuck open loop symptoms early helps prevent costly component damage downstream.
How Do ECM Loop Modes Apply to Diesel Injection Systems?
ECM loop modes apply to diesel injection systems through closed-loop feedback control of emissions components such as SCR urea dosing and EGR valve positioning. The following sections cover sourcing ECM-compatible diesel components and key operational takeaways.
Can Goldfarb & Associates Help Source ECM-Compatible Diesel Injection Components?
Yes, Goldfarb & Associates can help source ECM-compatible diesel injection components. As America's leading diesel parts supplier, Goldfarb & Associates maintains an inventory of over 20,000 unique part numbers, including ECM (Engine Control Modules), fuel injectors, injection pumps, and nozzles. These components must meet strict compatibility requirements to support closed-loop emissions systems operating under standards like EPA Tier 3, which requires fleet average NMOG+NOx emissions of 30 mg/mile by 2025 according to DieselNet. Goldfarb & Associates hand-inspects every part against a full quality checklist, ensuring ECM-related components function correctly upon installation. Same-day shipping is available for orders placed before 3:30 PM EST, Monday through Friday.
What Are the Key Takeaways About Closed Loop vs Open Loop ECM Operation?
The key takeaways about closed loop vs open loop ECM operation center on when and why the ECM switches between sensor-driven correction and pre-programmed fueling. Key distinctions include:
-
Closed loop uses real-time oxygen sensor feedback to maintain stoichiometric combustion and optimize emissions.
-
Open loop relies on pre-programmed fuel maps and Mass Air Flow readings during conditions like wide open throttle to ensure maximum engine power.
-
The transition between modes depends on sensor readiness, coolant temperature thresholds, and engine load.
According to research published in ScienceDirect, in-cycle closed-loop controllers can increase indicated efficiency by 0.42 percentage points compared to in-cycle open-loop operation by optimizing spark advance in real-time. For diesel applications specifically, understanding which loop mode the ECM occupies helps diagnose fueling errors, emissions non-compliance, and sensor faults that affect long-term engine health.
